CAT5e High performance Ethernet Cable
| Price: | US$ 55 / Box |
|---|---|
| Minimum Order: | 100 |
| Payment Terms: | FOB |
| Port of Export: | NijngBo |
Product Details
| Model No.: | CAT5e | Brand Name: | XingFa Cable |
|---|
| Certification: | |
|---|---|
| Specification: | UTP CAT5E To make sure we are providing our customer standard TIA 568 c.2 , ISO11081 . High-Performance Data Communications Cable. |
Packaging & Delivery
| Packaging: | 305 meter per box |
|---|---|
| Delivery/Lead Time: | 20-30 days |
| Production Capacity: | 200,000Km |
Product Description
Appliacation 1. Exceeds ANSI/TIA-568C. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.

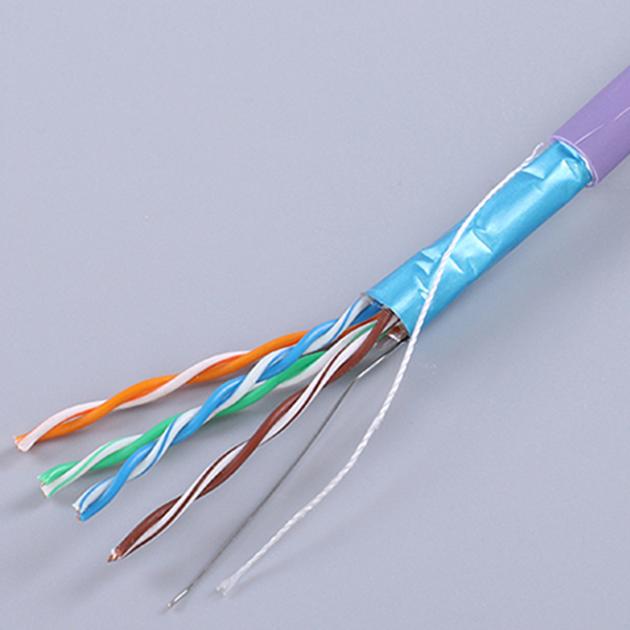

4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
6. Color Availability: Additional cable colors available.

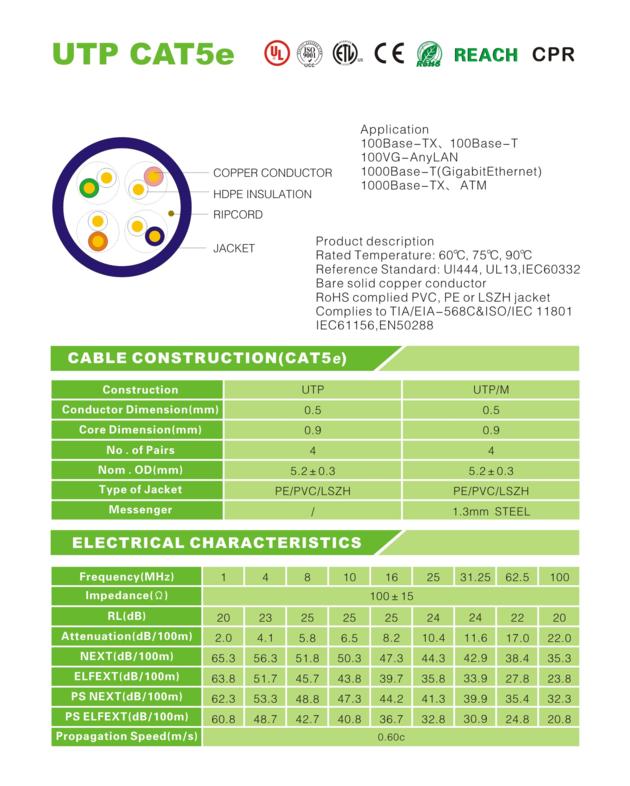

Electronic Characteristics
Impedance: 100 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S
Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,RoHS 3.0, CPR, UL/ETL, CE, REACH
|
