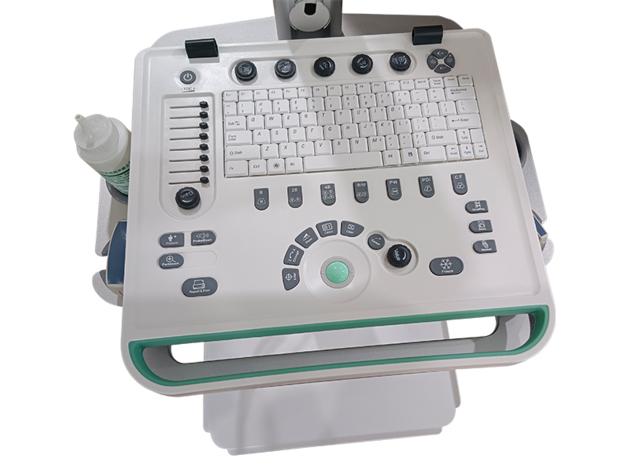

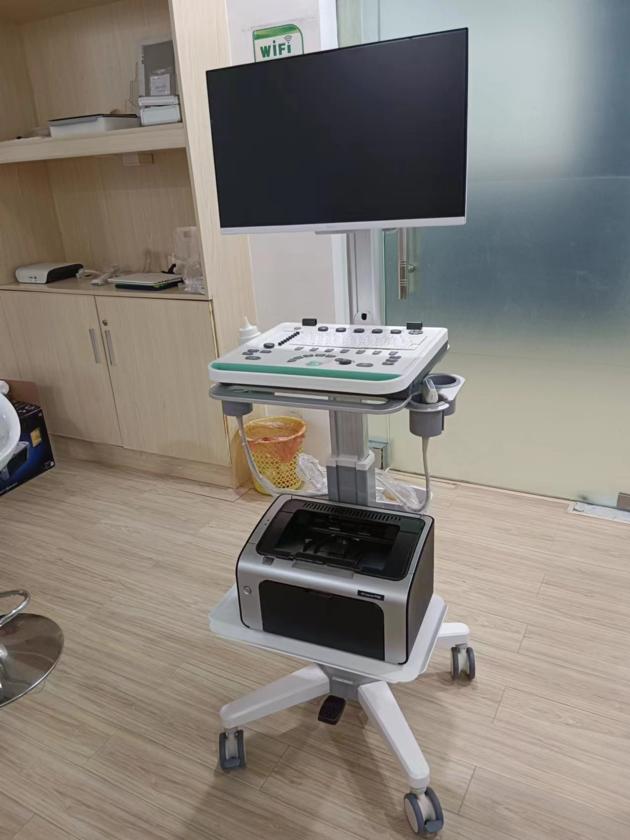

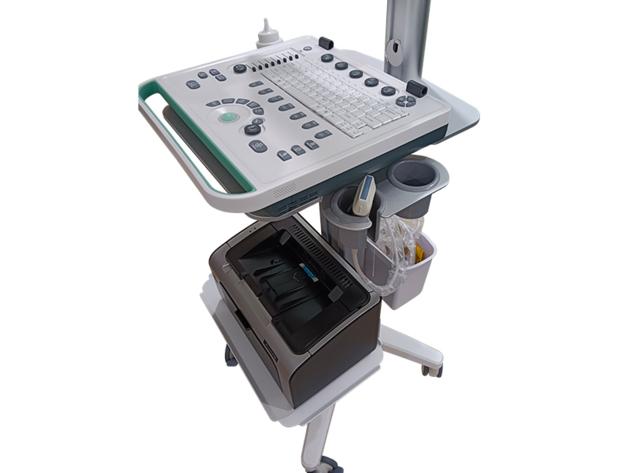

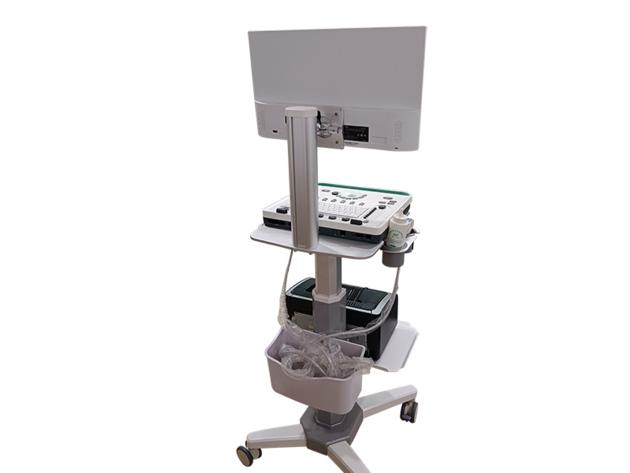

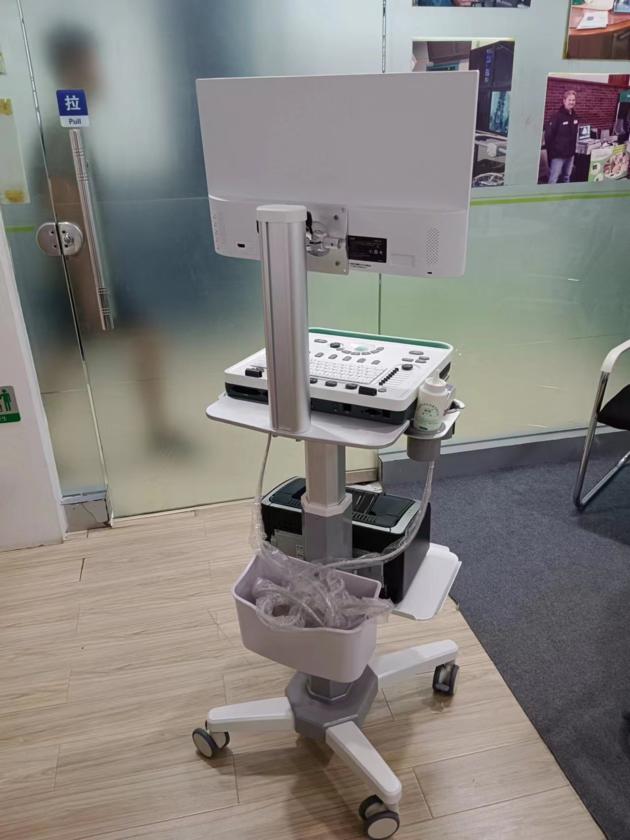

C5T Trolley Color Doppler Ultrasound
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT |
| Port of Export: |
Product Details
| Model No.: | C5T | Brand Name: | SONOSTAR |
|---|
| Certification: | |
|---|---|
| Specification: |
- Screen: 20inch LCD
- Image mode: B、B/M、Color、PW、PDI - Channel of Ultrasound: 64 |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Standard Configuration:
Ultrasound device x 1 unit, Convex probe x 1pc
Optional probes and accessories:
Linear, Phase Array, Micro-Convex, Transvaginal, Transrectal, puncture guide, Tablet, Trolley, external
battery, Teleconsultation system
Specification:
- Screen: 20inch LCD
- Image mode: B、B/M、Color、PW、PDI
- Channel of Ultrasound: 64
- Gain : 30db-105db
- Denoice:0-1-2-3-4
- Dynamic Range：40-50-60-70-80-90-100-110
- Probe type：Convex, Linear, Phase Array, Micro-Convex, Transvaginal, Transrectal
- Probe Connection Port: 2
- Frequency, Scanning Depth, Angle/Width:
Convex: 3.5MHz/5MHz, 90/160/220/305mm, 60¨
Linear: 7.5MHz/10MHz，20/40/60/100mm, 40mm
High Frequency Linear：10MHz/14MHz,
20/30/40/55mm, 25mm
Phase Array：2.2MHz/3.6MHz, 40-100mm, 80¨
Micro-Convex: 3.5MHz/5MHz, 90/130/160/200mm, 88¨
Transvaginal: 6.5MHz/8MHz, 40/60/80/100mm, 149¨
Biplane Transrectal: Convex 6.5MHz/8MHz,
40/60/80/100mm，149¨；Linear 7.5MHz/10MHz,
20/40/60/100mm, 40mm
- Image Adjust: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF
- Cineplay: auto and manual, frames can set as 100/200/500/1000
- Puncture Auxiliary Function: In-Plane puncture guide line, Out-Plane puncture guide line, automatic blood vessel measurement.
- Measure: Length, Area, Angle, Heart Rate, Obstetrics
- Image Frame Rate: 18f/s
- Operating System : Windows
- Image Saved: jpg, avi and DICOM format, storage volume 120G
- Image and Report Printing: compatible with most printers
- Weight: 4Kg - Image and report print: can work with most model ink/laser printer
- Remote transmission: The device can be wired/wire less Internet access, images and information can be transmitted through the software's built-in DICOM and WorkList transmission function or other software
- Remote Diagnosis: can install any remote diagnosis software and work
- Battery Duration Time: built-in battery, 2 hours
- Trolley size: lifting height 770~1070mm, Keyboard countertop 440 * 265mm, Printer countertop 480 * 480mm
- Packaging size: 690 * 555 * 235mm
- Net Weight: 20KGS, gross weight : 25KGS in total
|
