Bridge building construction 250t u type bridge erecting machinery beam launcher crane
| Price: | US$ 300000 |
|---|---|
| Minimum Order: | 1Set |
| Payment Terms: | T/T |
| Port of Export: | Qingdao or Tianjin Port, China |
Product Details
| Model No.: | BL | Brand Name: | Shenghua |
|---|
| Certification: | CE ISO GOST |
|---|---|
| Specification: |
Lifting capacity (T)
260 200 Max girder dimension(m) 30*4.7*1.9 30*4.6*1.8 Moving speed(m/min) 0-3 Trolley moving speed(m/min) 0-3 Trolley lifting speed(m/min) 0-0.5 Trolley max lifting height(m) 7 Girder transverse trimming distance(mm) ¯200 Girder trimming speed(m/min) 0-1 Tackle lifting weight(t) 80 Min curve bridge radius(m) 300 Power required(kw) 110 Out dimensions (m) 69*9.5*10.8 69*9*10.8 Total weight(t) 220 160 |
Packaging & Delivery
| Packaging: | Hydraulic and Electrical parts are packaged by high quality plywood crates |
|---|---|
| Delivery/Lead Time: | 40 days after received the deposit |
| Production Capacity: | 250T |
Product Description

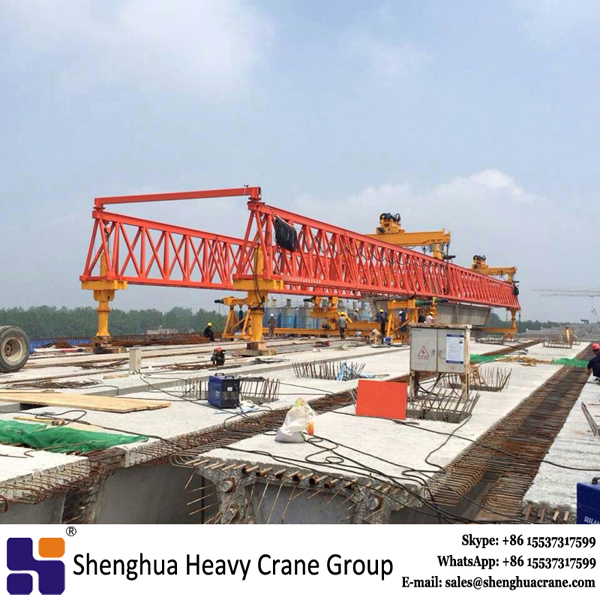

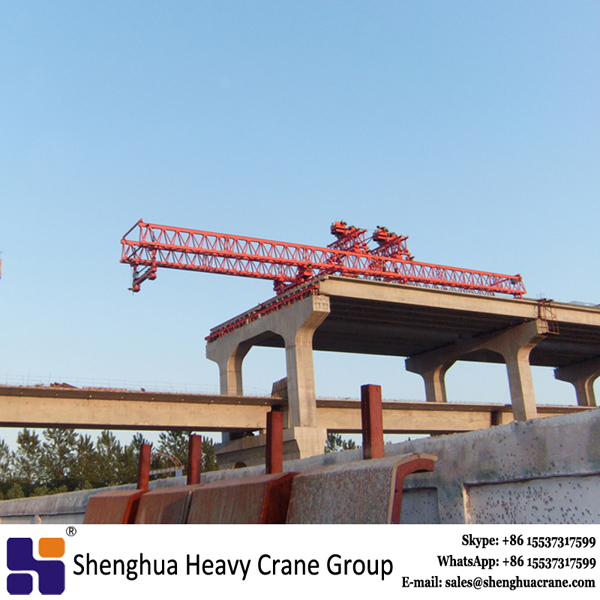

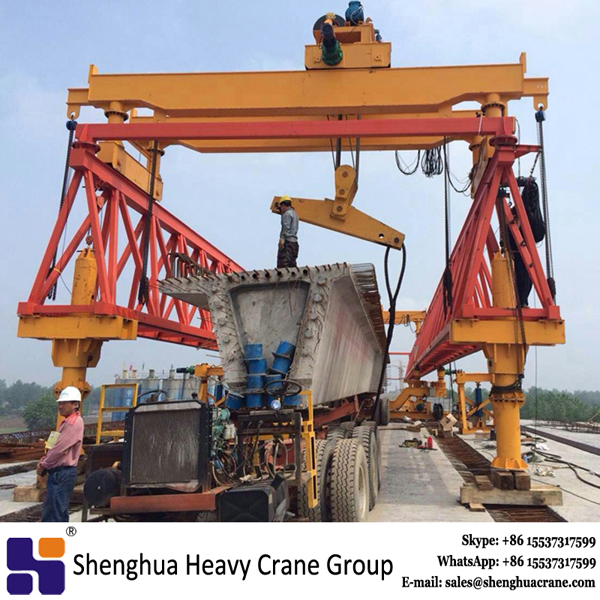

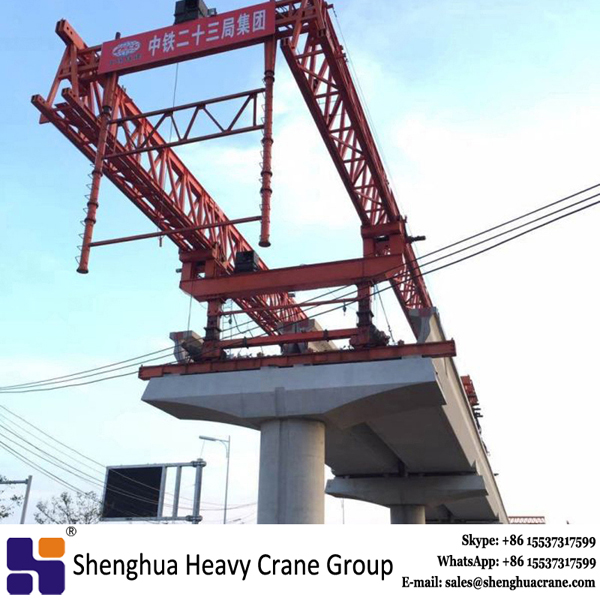

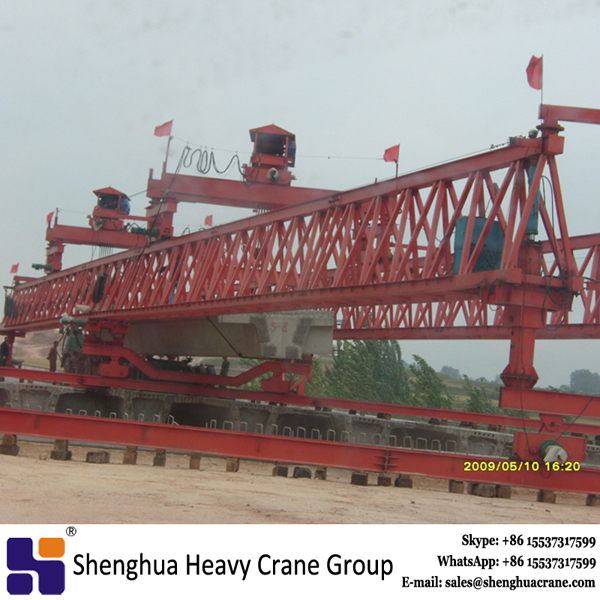

Bridge building construction 250t u type bridge erecting machinery beam launcher crane
Bridge building construction 250t u type bridge erecting machinery beam launcher crane is a professional design for U type bridge machine required for erection of city rail transit construction beam. As a kind of structure section, the U beam has good noise reduction effect, low construction height, high utilization ratio of cross section space. Because of U type beam for thin-walled opening structure, the traditional bridge rack beam cannot be applied directly. Unable to realize the traditional function of carrying beam traversing, beam body installation can only be achieved by traversing the crane. Therefore Shenghua heavy group U type bridge erecting machine with "front overhead crane beam, acquired vehicle girder, two cranes synchronous walking, then synchronized fall beam" of the process, simple operation, safe and stable.
|
