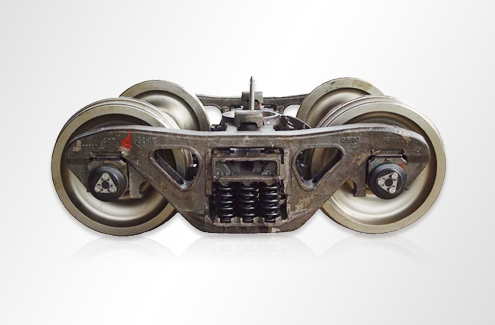

Brazil GDT wide gauge bogie
| Price: | US$ 8000 / Set |
|---|---|
| Minimum Order: | 50 |
| Payment Terms: | L/C ,T/T |
| Port of Export: | Tianjin |
Product Details
| Model No.: | Brand Name: | CRRC |
|---|
| Certification: | IRIS ,ISO9001 |
|---|---|
| Specification: |
Main technical parameters:
Axle load (t) 32.5 Tare weight (t) 5.4 Gauge (mm) 1600 Operating speed (km/h) 80 Min. radius of curvature negotiable (m) 120 |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 2 months |
| Production Capacity: | 8000/year |
Product Description
This wide gauge bogie is suitable for operating on Brazil railway with meter gauge or wide gauge, and has such features as three-piece casting steel bogie structure. It adopts single-stage suspension and constant friction wedge dumpling device, increasing the width of main and auxiliary friction surfaces for the wedge to improve anti-lozenge rigidity. The bogie is comprised of wheelset and bearing, bolster assembly, side frame assembly, elastic suspension device and damping device, constant contact side bearing and brake rigging, etc.
|
