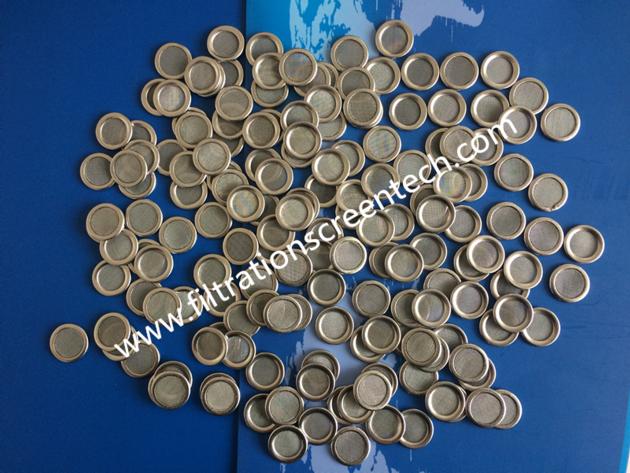

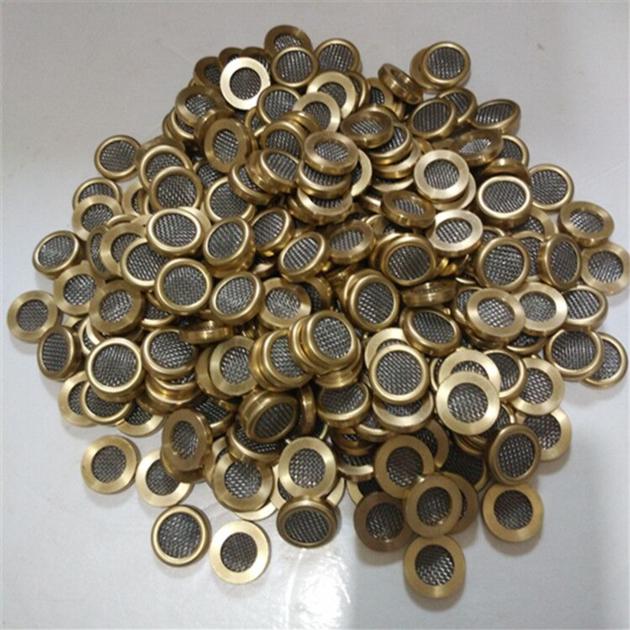

Brass Filter Disc Mesh

Brass Filter Disc Mesh

Our engineer can design ,processing and made all kinds of Brass Filter Disc screen as customs DWG drawing and sample offer. The raw material have H60.H80 of brass wire cloth,Copper wire mesh.phosphor bronze wire cloth Standard. Let all international client got the Excellent products service in here.


Material:

Brass wire cloth,Copper wire mesh.phosphor bronze wire cloth
Woven types :Plain woven.
Bound edge width :2.0mm.3.0mm.in normal working .
Bound edge plate thickness:0.4mm,0.5mm.0.8mm.1.00mm.
Layer:single,double,Three.

Disc Diameter:
6mm.8mm,12.7mm.15mm.25mm.38mm.and so on ,we can processing and made as your request offer.

Mesh of size :

400 microns = 40 mesh screen
250 microns = 60 mesh screen
200 microns = 80 mesh screen
100 microns = 100 mesh screen
Others size we can process and made of your offer and request.

Application:
Fuel oil filtration systems
Wooden work manchine
Aeronutical and spare fuel parts
Oil & Fuel Filters
Suction line strainers
Pressure line filters
hydraulic oil Filter
