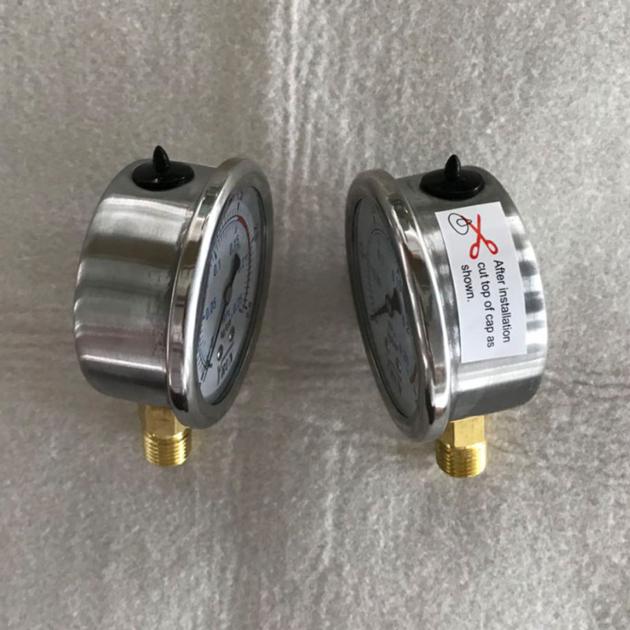

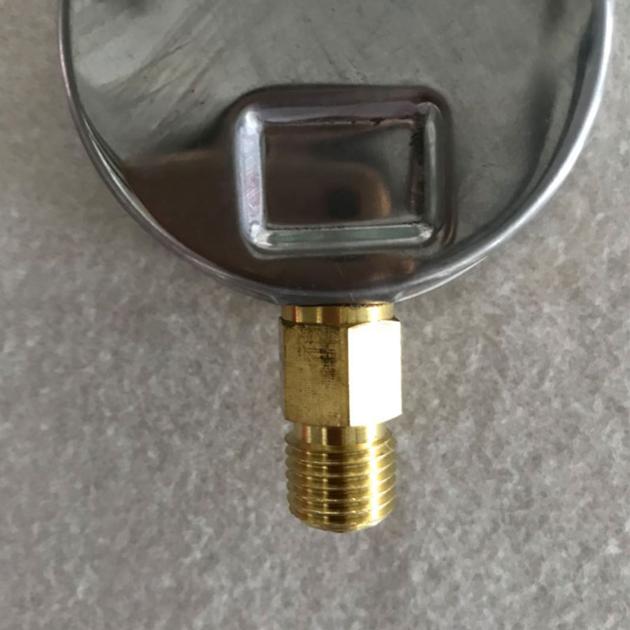

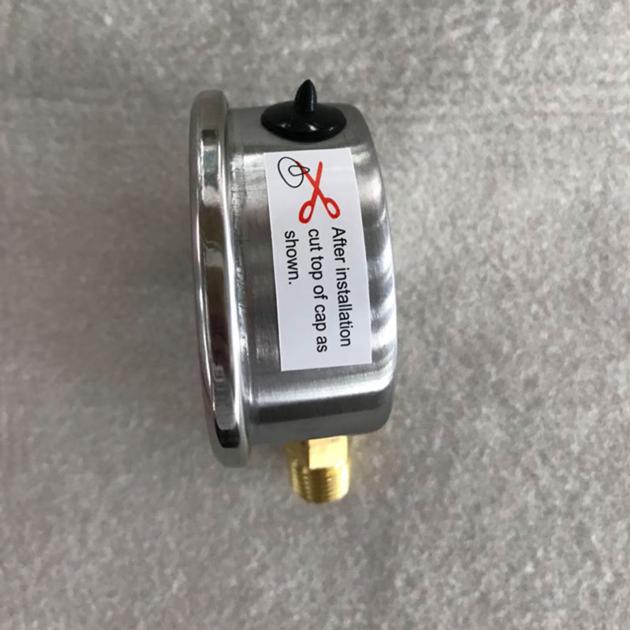

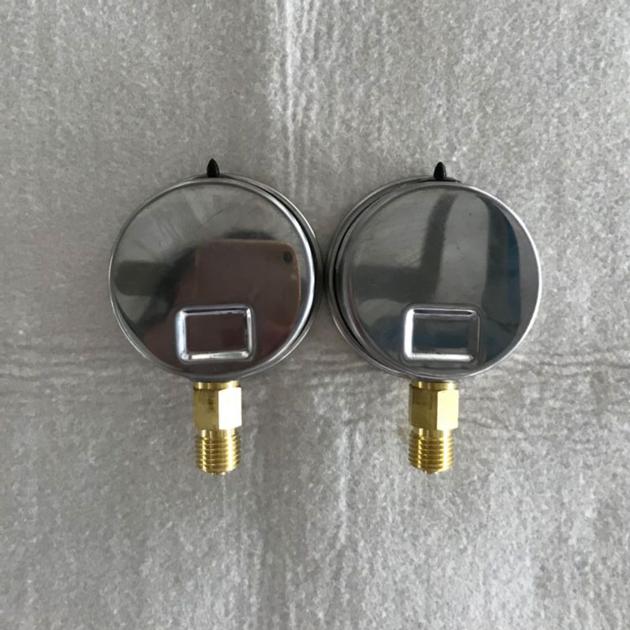

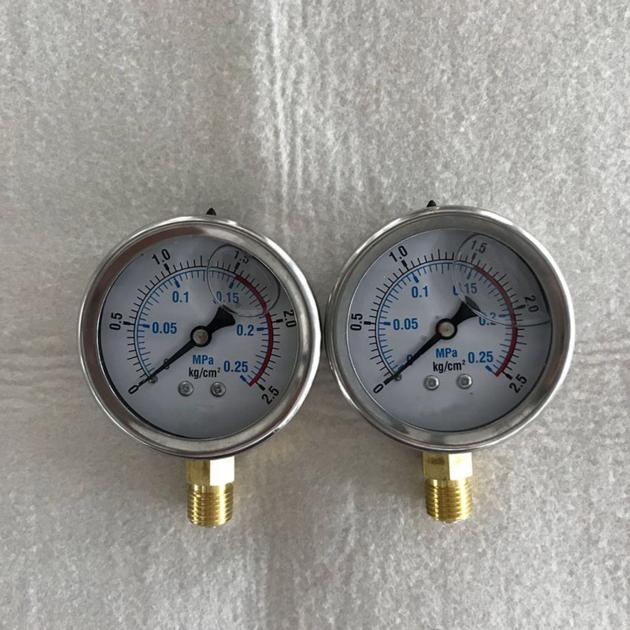

Brass Connector Bourdon Tube Hydraulic Pressure Gauge
| Price: | US$ 3.69 / Piece |
|---|---|
| Minimum Order: | 200 pieces |
| Payment Terms: | T/T,L/C, D/P, D/A, Money Gram, Paypal, Western Uni |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | YN63 | Brand Name: | Nait or OEM |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |
1,bourdon tube pressure gauge
2,componet: pointer, dial, bazel, case, connector, socket. movement 3,industrial 4,factory made |
Packaging & Delivery
| Packaging: | 1,each pressure gauge put into a small polybag,then put into paper bag, 100 pcs a carton box 2, our |
|---|---|
| Delivery/Lead Time: | 35 days after receive customer make payment |
| Production Capacity: | 200000 pieces/month |
Product Description
Pressure Gauge Description
Dials Size: 2"(50mm), 2.5“(63mm), 4”(100mm) and 6“ (150mm)Case SS304
Pressure range: 0 -100Mpa,other scale units bar, psi, kg/cm2 etc.optional
Ring: Non, black steel or chrome plated
Movement: Brass,SS304 or SS316SocketBrass,SS304 or SS316
Bourdon tube:Phosphor Bronze,SS304 or SS316
Dial plate and pointer : Aluminum
Window: Glass or Safety glass
Connection sizes :1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case
Connection threads: Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting: Bottom, back and panel
Accuracy: 2"(50mm), 2.5(63mm)-2.5% ,4(100mm) and 6 (150mm)-1.6%
Pressure limitation : 1:Steady: 3/4x full scale value
2: Fluctuation:2/3x full sacle value
3:Short time:full scale value
|
