Brandt VSM 300 Secondary

Replacement Secondary Screens for Drying Deck of Brandt VSM 300 Shaker
Technical Parameter

Mesh Material: stainless steel 304/316/316 L.
Body Material: Q235 steel.
Screen Type: pretension, repairable.
Screen Angle: 7®.
API RP 13C Designation: API 40 – API 325.
Size: 686 × 208 mm.
Weight: 3.2 kg.
Color: green, black.
Package: 2 pcs per carton, packed in wooden case.

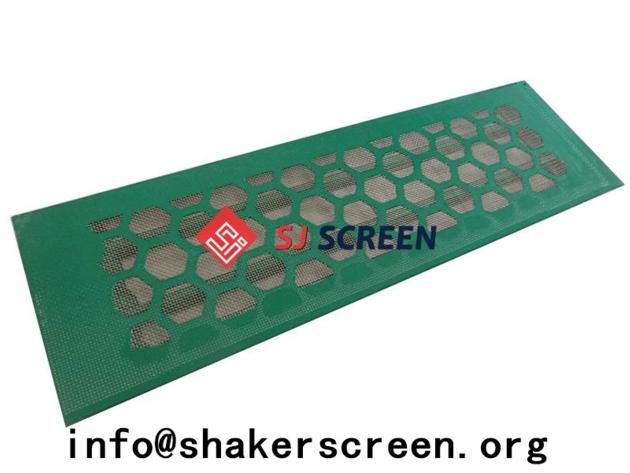

Replacement secondary shale shaker screen for Brandt VSM 300 shaker drying module.
SJ-VSM 300SE secondary shale shaker screen is the replacement screen for the drying module of Brandt VSM 300 shale shaker. It is installed on the front of the lower deck (primary) screens. The main function is to reduce fluid content on cuttings discharged from the primary screens. These screens are normally used with oil based drilling mud, but are equally suitable with water based drilling mud if required.

Adaptable Shale Shaker Model

SJ-VSM 300SE primary shaker screens are used as the substitute screen for

Drying module screen (2 screens) of Brandt VSM 300 shale shaker.
Brandt VSM 300 vibrating screens.
Brandt VSM 300 mud cleaner.
A drawing picture show the screen installation of NOV Brandt VSM 300 shaker.
NOV Brandt VSM 300 Shaker Drawing

A panoramic photo of NOV Brandt VSM 300 shaker.
NOV Brandt VSM 300 Shaker

Competitive Advantage
Constructed with SS 304 or 316 wire cloth.
Excellent screen intensity and endurance.
Extend service life & high fluid-handling capacity.
Manufactured according to the API RP 13C (ISO 13501).
Scientific & reasonable cost control system for competitive price.
Adequate inventory in the shortest time to meet customers' demand.
Warranty Period: 1 year.
Working Life: 400–450 hours.
Performance Parameter
Download Catalogue
Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Screen Quantity Non-Blank Area (sq.ft)
SJ-VSM 300SE-A325 XR API 325 0.39 44 2 2.3
SJ-VSM 300SE-A270 XR API 270 0.51 57 2 2.3
SJ-VSM 300SE-A230 XR API 230 0.66 61 2 2.3
SJ-VSM 300SE-A200 XR API 200 1.32 73 2 2.3
SJ-VSM 300SE-A170 XR API 170 0.99 88 2 2.3
SJ-VSM 300SE-A140 XR API 140 1.21 116 2 2.3
SJ-VSM 300SE-A120 XR API 120 1.87 117 2 2.3
SJ-VSM 300SE-A100 XR API 100 2.63 142 2 2.3
SJ-VSM 300SE-A80 XR API 80 3.35 193 2 2.3
SJ-VSM 300SE-A70 XR API 70 3.55 220 2 2.3
SJ-VSM 300SE-A60 XR API 60 4.09 233 2 2.3
SJ-VSM 300SE-A50 XR API 50 4.63 275 2 2.3
SJ-VSM 300SE-A40 XR API 40 6.43 411 2 2.3
SJ-VSM 300SE-A35 XR API 35 14.77 575 2 2.3
SJ-VSM 300SE-A20 XR API 20 21.52 913 2 2.3
* D100: Particles in this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing.

Show Details

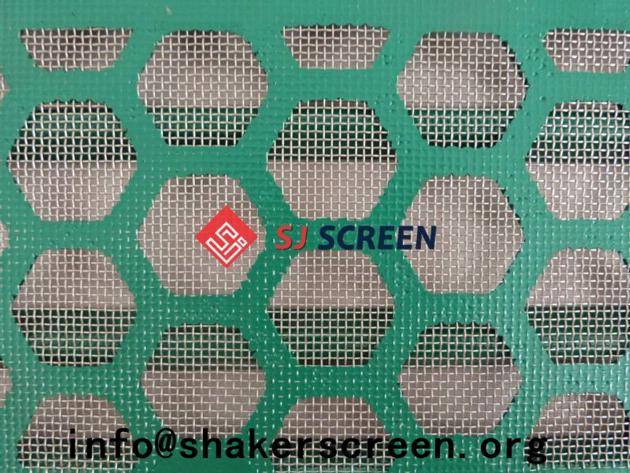

Brandt VSM 300 secondary screen replacement made of stainless steel wire mesh cloth.
Top quality SS 304 wire mesh

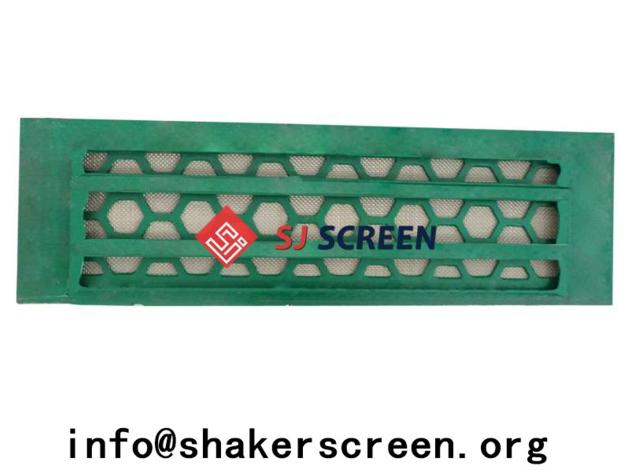

Brandt VSM 300 primary screen replacement with Q235 steel framework.
Framework made of Q235 steel tube

Remarks:

Brandt, VSM 300, Secondary are marks of Varco I/P, Inc.

ShengJia only produces the replacement screens but not original from Brandt.
