Brandt VSM 300 Scalping

Replacement Scalping Screens for Top Deck of Brandt VSM 300 Shaker
Technical Parameter

Mesh Material: stainless steel 304/316/316 L.
Body Material: Q235 steel/composite.
Screen Type: pretension, repairable.
Screen Layered: single, dual or triple layered.
API RP 13C Designation: API 10 – API 325.
Size: 935 × 675 mm.
Weight
Steel frame type: 12 kg.
Composite frame type: 11.5 kg.
Color: green, black.
Package: 2 pcs per carton, packed in wooden case.
Replacement shale shaker screen for Brandt VSM 300 shaker upper deck.
DescriptionStylesCompetitive AdvantagePerformance ParameterShow Details
SJ-VSM 300S scalping shale shaker screen is manufactured as the replacement screen for Brandt VSM 300 shale shaker. It is installed on the top deck of the VSM 300, which are used to scalp off large volumes of solids. Thus protecting the finer mesh of the lower deck (primary) screens. The scalping screen is usually sized from API 10 to API 325, ShengJia promises you high quality VSM 300 screen at reasonable price. And there are steel frame and composite screens optional.

Adaptable Shale Shaker Model

SJ-VSM 300S scalping shaker screens are used as the substitute screen for

Top deck screen (3 screens) of Brandt VSM 300 shale shaker.
Brandt VSM 300 vibrating screens.
Brandt VSM 300 mud cleaner.
A drawing picture show the screen installation of NOV Brandt VSM 300 shaker.
NOV Brandt VSM 300 Shaker Drawing

A panoramic photo of NOV Brandt VSM 300 shaker.
NOV Brandt VSM 300 Shaker

Styles

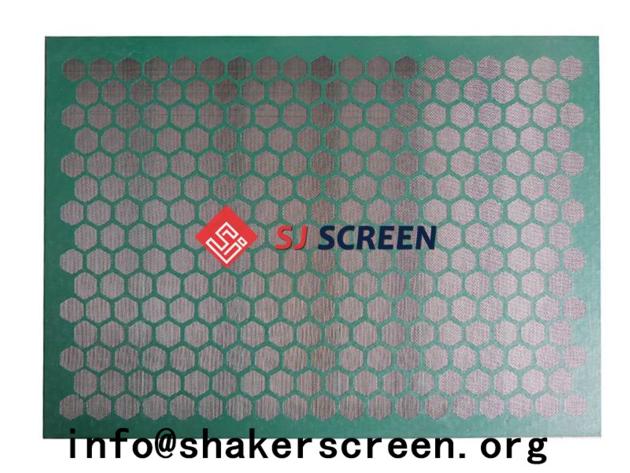

The front view picture of steel frame shale shaker screen for Brandt VSM 300 top deck screen replacement.
Steel frame VSM 300 scalping screen (positive)

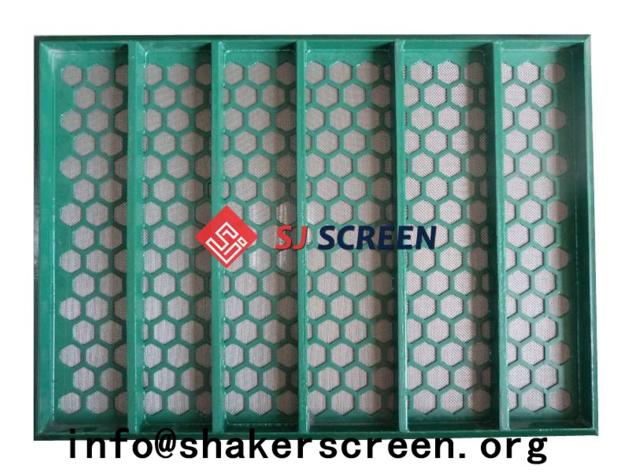

The back view picture of steel frame shale shaker screen for Brandt VSM 300 top deck screen replacement.
Steel frame VSM 300 scalping screen (reverse)

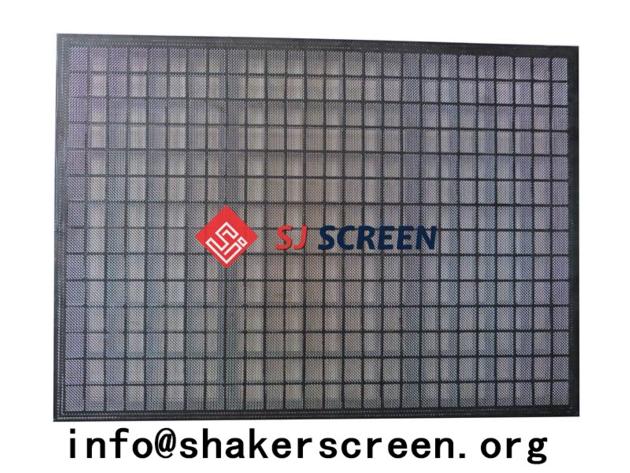

The front view picture of composite shale shaker screen for Brandt VSM 300 top deck screen replacement.
Composite VSM 300 scalping screen (positive)

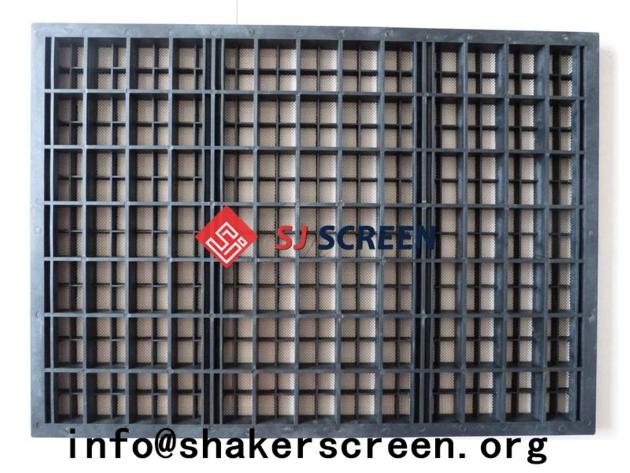

The back view picture of composite shale shaker screen for Brandt VSM 300 top deck screen replacement.
Composite VSM 300 scalping screen (reverse)

Competitive Advantage
Composite frame sieve, anti-rust.
Top-quality stainless steel wire mesh for longevity.
Steel framework & composite framework optional.
Manufactured according to the API RP 13C (ISO 13501).
Scientific & reasonable cost control system for competitive price.
Adequate inventory in the shortest time to meet customers' demand.
Warranty Period: 1 year.
Working Life: 400–450 hours.
Performance Parameter
Download Catalogue
Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Layer No. Non-Blank Area (sq.ft)
SJ-VSM 300S-A200 XR API 200 1.12 80.1 1/2/3 4.6
SJ-VSM 300S-A170 XR API 170 1.49 94.5 1/2/3 4.6
SJ-VSM 300S-A140 XR API 140 1.57 106.5 1/2/3 4.6
SJ-VSM 300S-A120 XR API 120 2.1 134.7 1/2/3 4.6
SJ-VSM 300S-A100 XR API 100 2.66 164 1/2/3 4.6
SJ-VSM 300S-A80 XR API 80 2.76 193 1/2/3 4.6
SJ-VSM 300S-A70 XR API 70 3.33 203 1/2/3 4.6
SJ-VSM 300S-A60 XR API 60 4.1 268 1/2/3 4.6
SJ-VSM 300S-A50 XR API 50 5.17 285 1/2/3 4.6
SJ-VSM 300S-A40 XR API 40 8.64 439 1/2/3 4.6
SJ-VSM 300S-A35 XR API 35 9.69 538 1/2/3 4.6
SJ-VSM 300S-A20 XR API 20 10.88 809 1/2/3 4.6
SJ-VSM 300S-A10 XR API 10 40.92 1957 1/2/3 4.6
* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing.

Show Details
Brandt VSM 300 scalping screen replacement with hexagonal perforated protective frame.
Hexagonal perforated protective frame

Brandt VSM 300 scalping screen replacement with Q235 steel framework.
Framework made of Q235 steel tube

Brandt VSM 300 scalping screen replacement made with top quality stainless steel wire mesh.
Top-quality stainless steel wire mesh

Brandt VSM 300 scalping screen replacement with composite framework.
Framework made of composite material

Remarks:

Brandt, VSM 300, Scalping are marks of Varco I/P, Inc.

ShengJia only produces the replacement screens but not original from Brandt.
