Brandt King Cobra/Hybrid

Replacement Screens for Brandt King Cobra/Hybrid Shale Shakers
Technical Parameter

Mesh Material: stainless steel 304/316/316 L.
Frame Material: Q235 steel/PT.
Screen Type: XL, XR.
Size: 1250 × 635 mm.
Weight:
Steel frame: 13.5 kg.
PT frame: 13 kg.
New type PT frame: 16 kg.
API RP 13C Designation: API 120 – API 325.
Package: packed in paper carton, shipped by wooden case.
Replacement shaker screen for Brandt King Cobra/Hybrid shale shaker.
DescriptionStylesCompetitive AdvantagePerformance ParameterShow Details
SJ-KC/Hybrid shaker screens are produced as the replacement screen for Brandt King Cobra/Hybrid shale shaker. There are steel frame screen and PT frame screen for different drilling mud applications. Now our technical department has developed a new type of injection molding framework which is integrated with the rubber strip. This greatly improved the wear resistance of the shaker screens and effectively reduce the cost of mud treatment.

Adaptable Shale Shaker Model

SJ-KC/Hybrid shaker screens are used as the substitute screen for

Brandt King Cobra/Hybrid shale shaker.
Styles

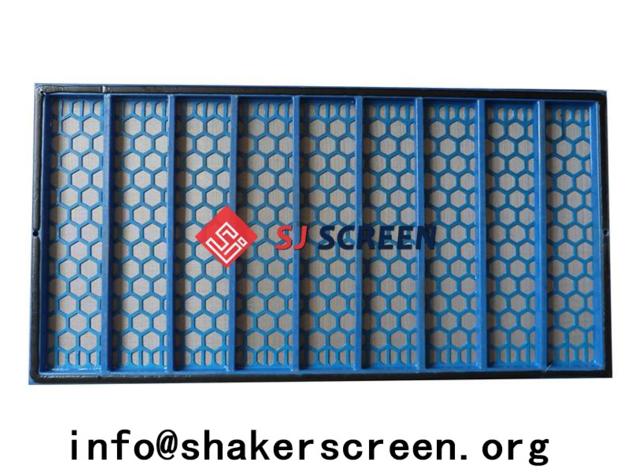

The front view picture of steel frame Brandt King Cobra/Hybrid shale shaker screen replacement.
Steel frame King Cobra screen (Positive)

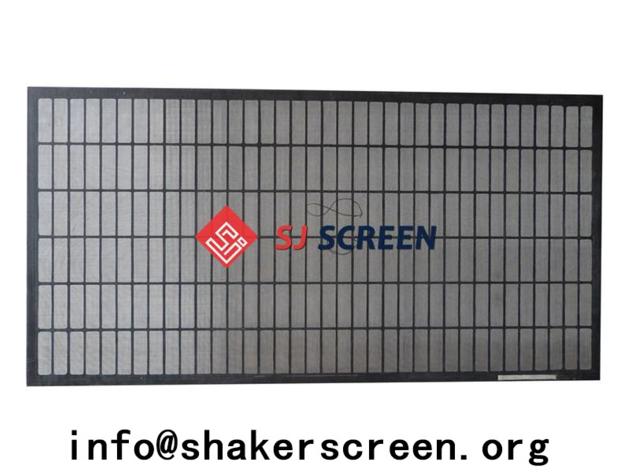

The back view picture of steel frame Brandt King Cobra/Hybrid shale shaker screen replacement.
Steel frame King Cobra screen (Reverse)

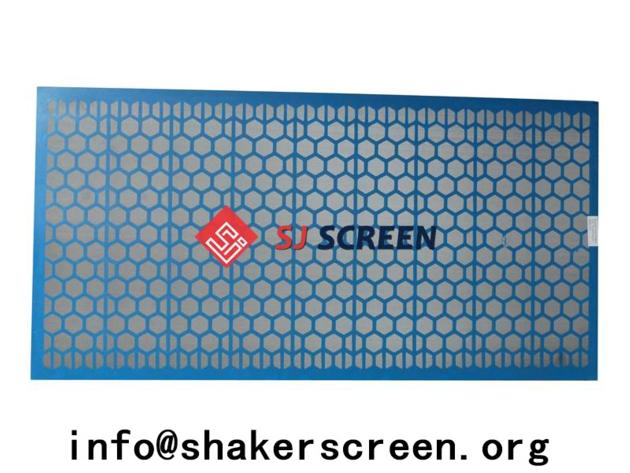

The front view picture of PT frame shale shaker screen for lBrandt King Cobra/Hybrid shale shaker screen replacement.
PT frame King Cobra screen (positive)

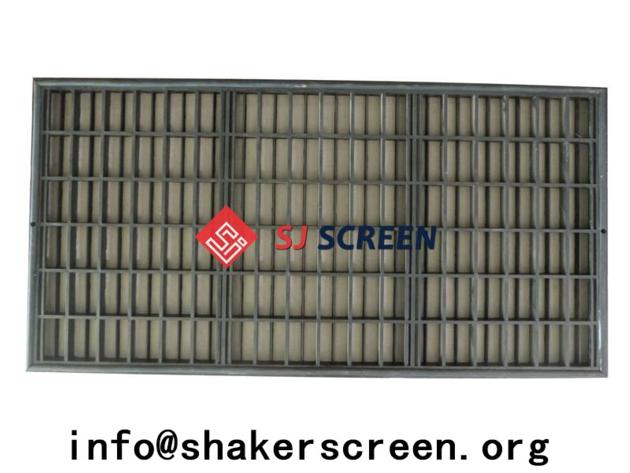

The back view picture of PT frame shale shaker screen for lBrandt King Cobra/Hybrid shale shaker screen replacement.
PT frame King Cobra screen (Reverse)

Competitive Advantage
Composite frame and PT frame optional.
Increased fluid handing capability, decreased cost of ownership.
Increased operational flexibility through compatibility in all drilling fluids.
Manufactured according to the API RP 13C (ISO 13501).
Scientific & reasonable cost control system for competitive price.
Adequate inventory in the shortest time to meet customers' demand.
Warranty Period: 1 year.
Working Life: 400–450 hours.
Performance Parameter
Download Catalogue
Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Non-Blank Area (sq.ft)
SJ-KC/Hybrid-A325 XR/XL API 325 0.33 44 5.95
SJ-KC/Hybrid-A270 XR/XL API 270 0.42 54 5.95
SJ-KC/Hybrid-A230 XR/XL API 230 0.45 61 5.95
SJ-KC/Hybrid-A200 XR/XL API 200 0.62 72 5.95
SJ-KC/Hybrid-A170 XR/XL API 170 1.02 86 5.95
SJ-KC/Hybrid-A140 XR/XL API 140 1.03 106 5.95
SJ-KC/Hybrid-A120 XR/XL API 120 1.40 134 5.95
SJ-KC/Hybrid-A100 XR/XL API 100 1.67 159 5.95
SJ-KC/Hybrid-A80 XR/XL API 80 2.36 193 5.95
SJ-KC/Hybrid-A70 XR/XL API 70 2.78 230 5.95
SJ-KC/Hybrid-A60 XR/XL API 60 3.35 274 5.95
SJ-KC/Hybrid-A50 XL API 50 4.91 296 5.95
SJ-KC/Hybrid-A35 XL API 35 9.13 529 5.95
SJ-KC/Hybrid-A20 XL API 20 11.77 781 5.95
* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing.

Show Details
A close up picture of lBrandt King Cobra/Hybrid shale shaker screen made of SS 304 wire mesh cloth.
Top-quality stainless steel wire mesh cloth

Replacement steel frame Brandt King Cobra/Hybrid shale shaker screen with supporting bar.
Steel back supporting framework

The supporting bar picture of replacement PT frame Brandt King Cobra/Hybrid shale shaker screen.
PT back supporting framework

Remarks:

Brandt, King Cobra, Hybrid are marks of Varco I/P, Inc.

ShengJia only produces the replacement screens but not original from Brandt.
