Brandt B40

Replacement Hook Strip Soft Screens for Brandt 4' × 5' / B40 Shakers
Technical Parameter

Mesh Material: stainless steel 304/316/316 L.
Frame Material: Q235 steel.
Screen Type: XL, XR, MG.
Size: 1220 × 1524 mm.
Weight:
Thick hook strip type: 7.5 kg.
Thin hook strip type: 4 kg.
API RP 13C Designation: API 120 – API 325.
Suitable Environment: water-based.
Package: packed in paper carton, shipped by wooden case.
Replacement shaker screen for Brandt 4' × 5' / B40 shale shaker.
Replacement Brandt 4' × 5' / B40 shaker screen is a kind of hook strip soft shaker screen. It is made of 304 stainless steel wire mesh cloth, designed with 2–4 layers composite bonded construction. Without steel backing plate, it offers maximum non-blanked area but increased fluid capacity. Bottom layer is made of coarse stainless steel wire mesh. It can supplies sieving action and serves as a support plate.

Adaptable Shale Shaker Model

SJ-B40 shaker screens are used as the substitute screen for

Brandt 4' × 5' / B40 shale shaker.

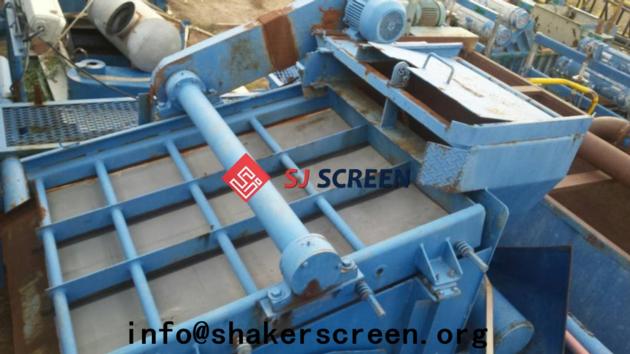

Brandt 4' × 5' / B40 shale shaker installed with hook strip soft shaker screen.
Brandt 4' × 5' / B40 shale shaker

Competitive Advantage
XL and XR mesh offer fine solids removal.
Reduce requirement for mud dilution and treatment.
Easy to install without any tools.
Manufactured according to the API RP 13C (ISO 13501).
Scientific & reasonable cost control system for competitive price.
Adequate inventory in the shortest time to meet customers' demand.
Warranty Period: 1 year.
Working Life: 400–450 hours.
Performance Parameter
Download Catalogue
Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Layer No. Non-Blank Area (sq.ft)
SJ-B40-A325 XR/XL API 325 0.39 44 2/3 14.4
SJ-B40-A270 XR/XL API 270 0.51 57 2/3 14.4
SJ-B40-A230 XR/XL API 230 0.66 61 2/3 14.4
SJ-B40-A200 XR/XL API 200 1.32 73 2/3 14.4
SJ-B40-A170 XR/XL API 170 0.99 88 2/3 14.4
SJ-B40-A140 XR/XL API 140 1.21 116 2/3 14.4
SJ-B40-A120 XR/XL API 120 1.87 117 2/3 14.4
* D100: Particles in this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing.

Show Details

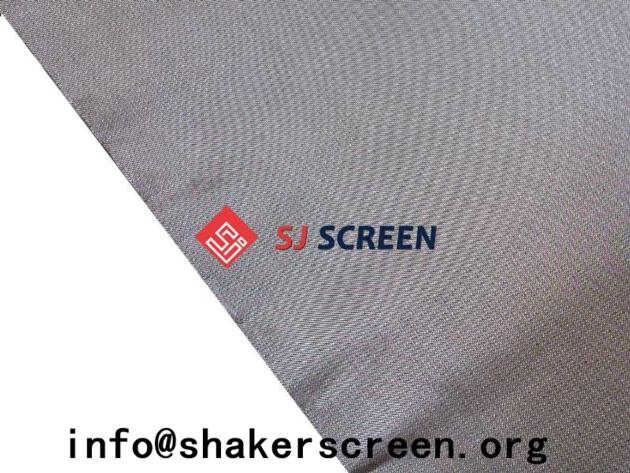

Replacement Brandt 4' × 5'/B40 shaker screen made of top-quality 304 stainless steel wire mesh cloth.
Top quality 304 stainless steel wire cloth

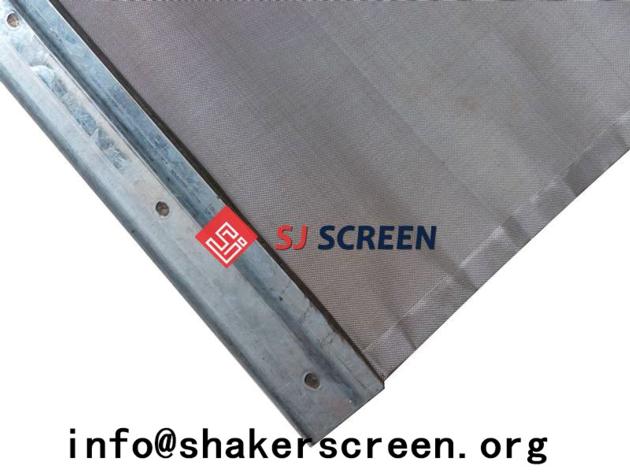

Replacement Brandt 4' × 5'/B40 shaker screen with steel hook strip.
Steel hook strip for easy installation

Remarks:

Brandt 4' × 5', B40, are marks of Varco I/P, Inc.

ShengJia only produces the replacement screens but not original from Brandt.
