Bluetooth Low Energy LaunchPad/ Development Kit
| Price: | US$ 28 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Taiwan |
Product Details
| Model No.: | EVK-CC2541 | Brand Name: | Digimore |
|---|
| Certification: | |
|---|---|
| Specification: |

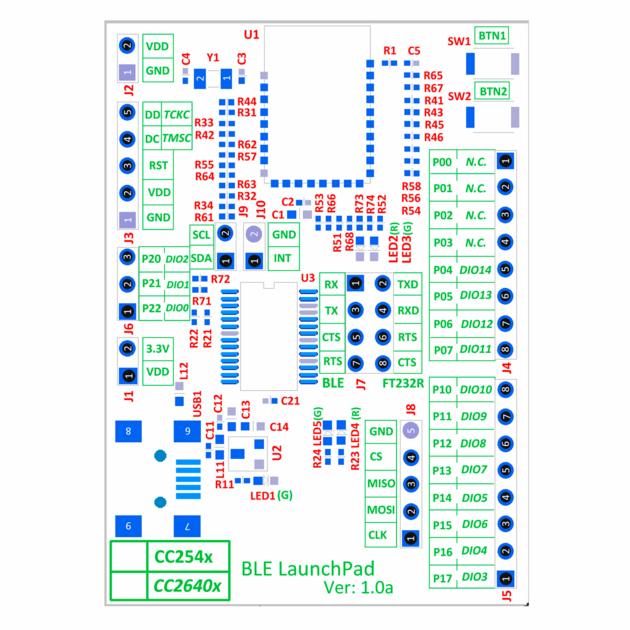

EVK-CC2541 (CC2640), BLE LaunchPad/ Development Kit, is an entire development kit for user to design Bluetooth Low Energy (BLE) application. It contains a Digimore Bluetooth module BT01-2 using TI Bluetooth low energy controller CC2541. TI CC2541 is a world-leading chip in Bluetooth Low Energy 4.0 and offers variety of peripherals such as UART, SPI, I2C and Timer. EVK-CC2541 (CC2640) also embeds a famous FTDI FT232R USB-UART interface chip, a High-PSRR 300mA LDO, Buttons and LEDs. The LaunchPad can let user focus on their project development and verify the project easily and rapidly. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 15~20 days |
| Production Capacity: |
Product Description
FEATURES: * BT01-2 Bluetooth Module with TI CC2541
- Bluetooth version 4.0 low energy (LE, single mode) compliant
- High-performance and low-power 8051 Microcontroller core with code prefetch
- In-system-programmable flash, 256KB
- 12-Bit ADC with eight channels and configurable resolution
- 21 general purpose I/O
- I2C interface
- Power USARTs with support for several serial protocols
- Module dimension: 14.8 x 10mm
* FTDI FT232R
- USB 2.0 Full Speed compatible
- Entire USB protocol handled on the chip. No USB specific firmware programming required
- FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases
- Data transfer rates from 300 baud to 3M baud (RS422, RS485 and RS232) at TTL levels
- Transmit and receive LED drive signals
- UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
- Alternative Jumper Design to use the function of FT232R independently
* LDO
- Fast Ultra High-PSRR, Low-Noise 300mA CMOS LDO
- 3.3V Output Voltage
* Mini USB Type B Connector
- To PC communication
- Supply Main Power
* Variety of Individual Pin Header Sections
- Power Source Option
- General Purpose I/O (GPIO)
- Peripherals
- Flash programming and debugging
‧ Buttons and LEDs
- Input / output function control
‧ LaunchPad Dimension: 55mm x 40mm
|
