Big size ATC cnc router machine for woodworking

The ATC CNC Router machine has fast engraving speed and high precision, it helps reduce total production time and increase process efficiency. During the entire cutting and carving process of the machine, the operator does not need to manually change the tool, so it is safer. The auto tool changer woodcarving machine is suitable for the mass production of panels in the woodworking industry, and can process more workpieces for your shop in the same time.

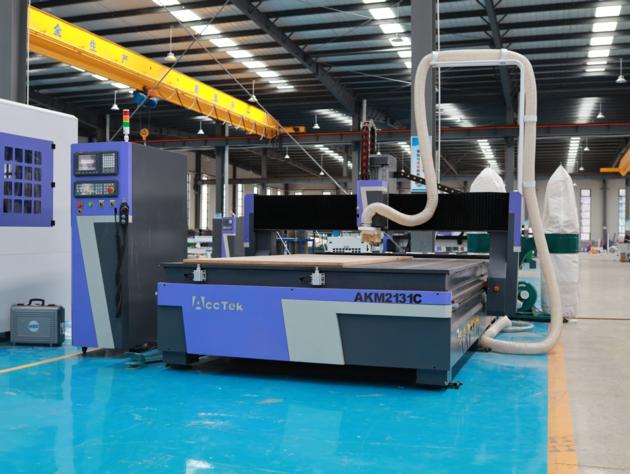

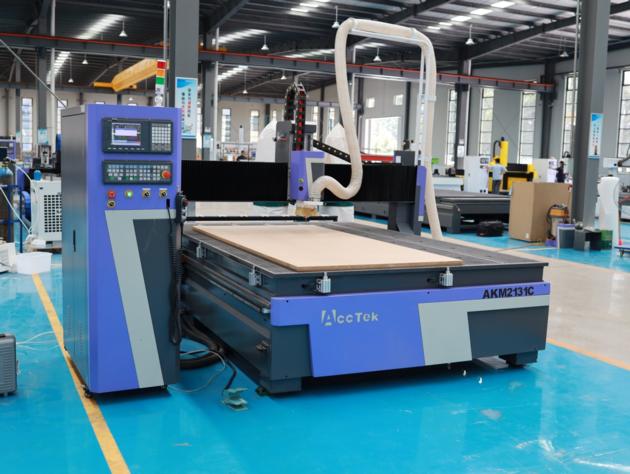

Detailed information of ATC CNC Router AKM2131C:
The working area of this AKM1325C is 2100×3100mm.

9KW ATC air cooling spindle
9KW Chinese ATC air cooling spindle to ensure the machine can be vigorous cutting. Smooth body, not easy to rust; powerful and longer lifetime. Independent research and development, rational design.

Auto tool changer
8pcs linear type auto tool changers, ISO30. When the machine is working, the tool can be changed quickly and reliably according to the system settings, which saves a lot of time and improves the efficiency of material processing. Very suitable for complex large-scale engraving processing.

Syntec 60W-E controller
The system stability is very good, powerful functions, the operating software is simple and easy to learn,the man-machine operation is friendly. Professionally applied to high-end cnc router machines, the anti-interference ability and control accuracy of the control system are superior to other types.

Taiwan Delta servo motor
Faster speed with signal feedback. Low heat radiation. Run smoothly at ultra-low speed. Reduce the vibration, avoid oscillation. Efficient torque enhancement.

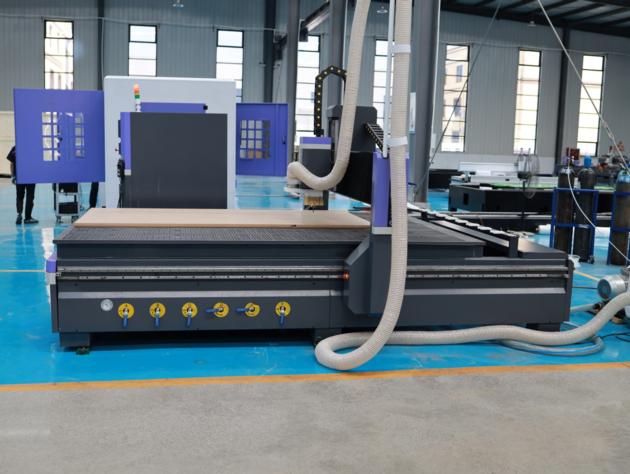

Vacuum &T slot table
When cutting and carving material, you can choose vacuum suction or T-slot fixture to fix the plate. The vacuum table is divided into six zones. When the plate to be processed is small, only one adsorption zone can be opened to save electricity.
In order to cooperate with the use of the vacuum table, the ATC cnc router is equipped with two 5.5KW air pump double stage, which are used to extract the air between the workpiece and the worktable surface to form a negative pressure, so as to achieve the purpose of fixing the material on the worktable. Double stage air pump with filter and pressure relief valve. It has less noise when working. The vacuum adsorption technology is applied to the woodworking cnc router to greatly improve the work efficiency.

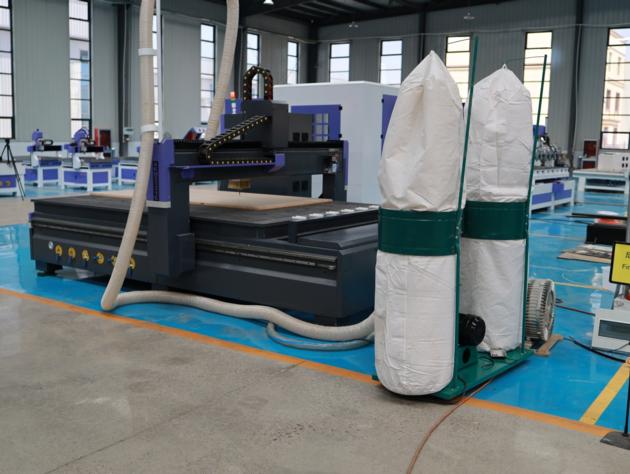

3.0KW double bags dust collector
The ACCTEK dust collector comes with a bracket, which is installed reasonably and makes the machine more beautiful. When the cnc router is working, the dust-proof brush on the spindle to control all the sawdust residues in a small range, and then debris is sucked into the vacuum cleaner. It not only ensures the cleanliness of the working environment, but also benefits the health of the staff.

The development of the furniture industry is inseparable from the application and progress of CNC Router machines. Whether you are in the woodworking industry, advertising industry or other engraving industry, as long as you have engraving needs, you can consult with us online. Our staff will provide you with the best purchase plan.
