Bench-Top Roll to Roll Electrospinning System with Syringe Pump and Heating Bed
| Price: | US$ 11000 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | L/C T/T D/P Western Union Paypal Money Gram Others |
| Port of Export: | Zhengzhou, Shanghai, Qingdao, etc. |
Product Details
| Model No.: | Brand Name: | CYKY |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Spraying Head (Needle) and Supporting Stand：
Height and position adjustable supporting stand Removable Spraying Heads (up to 5 needles). Single Voltage input cable minimizes the repulsion of the jet between the needles. Distance between each needle: 25mm Needle O.D.: 0.9mm Needle I.D.: 0.6mm Needle Length: 12mm Maximum distance from needle to heating bed: 235mm Minimum distance from needle to heating bed: 70mm High Voltage Power Supply： 0 - 50 kV single output, 1 mA max current Digital voltmeter and current meter Output voltage and current can be set by using knobs on the front panel and read from the digital display Constant current / constant voltage modes available AC 220V, 50/60Hz, 50W max power consumption Dimension: 155mm(L) x 245mm (W) x 125(H) Syringe Pump： LCD touch screen controlled infusion syringe pump for precise solution feeding. Easy to use. Pumping rate 0.1 - 45mm/min Travel Range: 0.001 - 120mm Micro speed adjustment : 0.01 - 8mm/min A 250ml Syringe is included for immediate use. 208 - 240 VAC Dimension: 300mm(L) x 265mm(W) x 260 mm (H) Heatable Vacuum Bed： Heating bed for solution drying PID temperature controller with the precision of +/- 1C. Heats up to 100C 208 - 240 VAC 2000W Max Power. Roll to Roll System： Compact roll to roll system up to 200mm width Motor rpm (Controller display) Range: 1 ~ 41rpm Gear Head's reduction ratio: 100k Actual substrate traverse speed range: 2.2 mm/s ~ 117.2 mm/s 110VAC Warranty： One-year limited warranty with lifetime support |
Packaging & Delivery
| Packaging: | Standard export wooden box packaging |
|---|---|
| Delivery/Lead Time: | 30 days |
| Production Capacity: | 200 Sets/Month |
Product Description

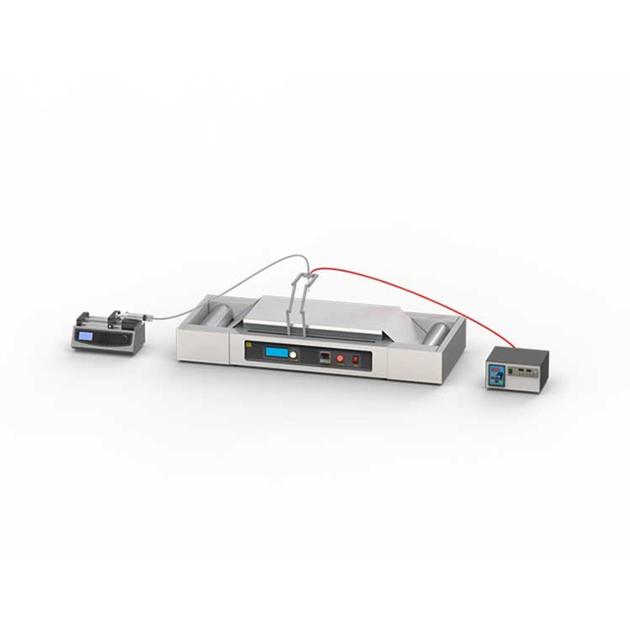

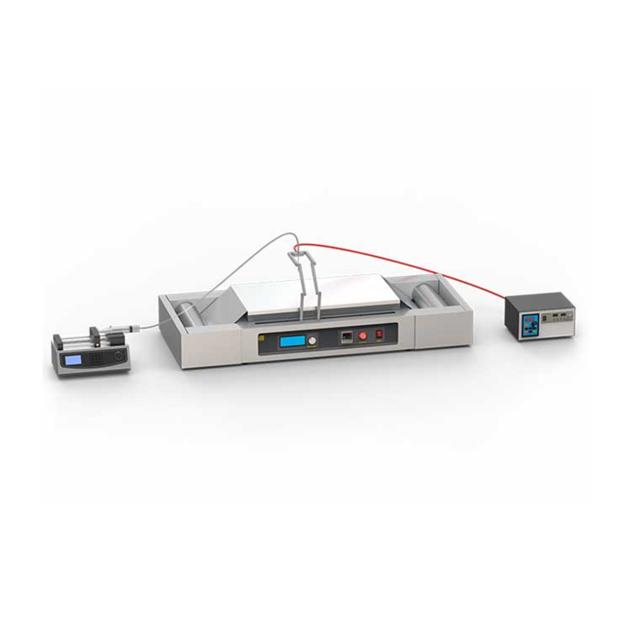

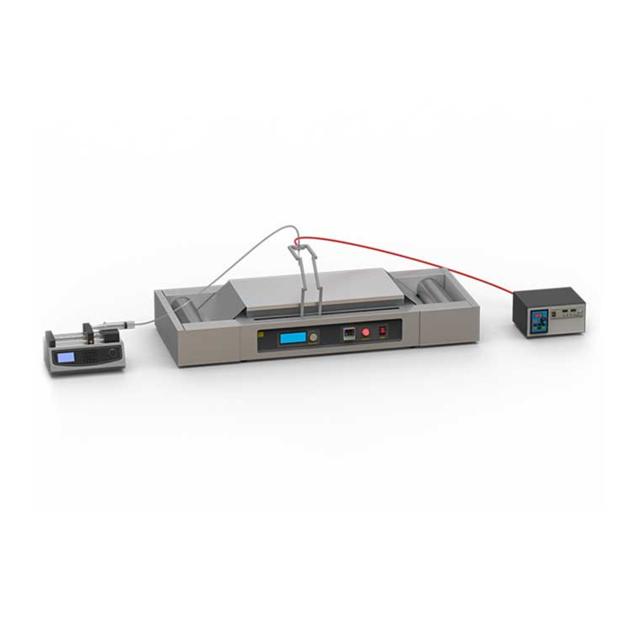

It's is a bench-top electrospinning system with automatic r2r substrate feeding and retrieving unit.
The syringe pump that renders a smooth and uninterrupted flow enabling uniform spinning. The high voltage
power supply delivers 0-50 kV output voltage range with a maximum current capacity of 1mA. Heatable
vacuum bed assists coating bake-out before collecting. Such system provides an attendant workflow for
nanofiber spinning, coating bake-out, and collecting.
Features:
Linear configurated 5 syringe needles ensures a uniform coverage over up to 160mm width.
Automatic roll to roll system with precise rolling speed control.
Heating bed up to 100C for coating bake-out.
Syringe pump provides a constant stream flow of polymer base solutions.
Single voltage supply cable minimizes the repulsion of the jets between the spraying heads.
Removable spraying heads accommodates various coating widths.
|
