Bench Top Constant Temperature & Humidity Climate Test Chamber

Applications
This equipment is widely applied for electronic and electric products,
components
and materials by constant high low temperature, temperature change, temperature
cycling,damp heat etc environmental simulation reliability test.
Specifications
Model No.
Internal Dimension (MM)
External Dimension (MM)
BTH-50
W400*H450*D280
W600*H850*D125 , 0
BTH-72
W400*H450*D400
W600*H850*D1400
Parameters
Temp. Range
A:-0~150℃ B:-20~150℃ C:-40~150℃ D:-60~150℃
Humidity Range
20-98%RH
Temp. Fluctuation
≤¯0.5℃
Temp. Deviation
≤¯2℃
Temp. Uniformity
≤¯2℃
Humidity Fluctuation
≤¯2.5%RH
Humidity Deviation
≤+2,-3%RH (≥75%RH);≤¯5%RH (≤75%RH)

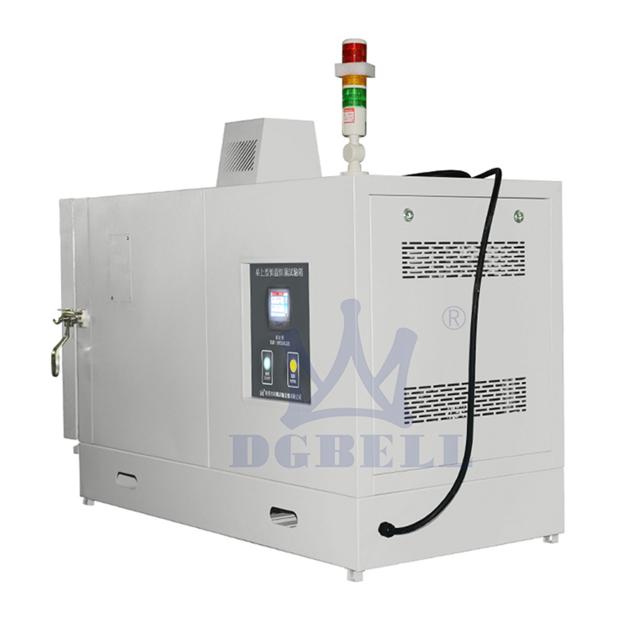

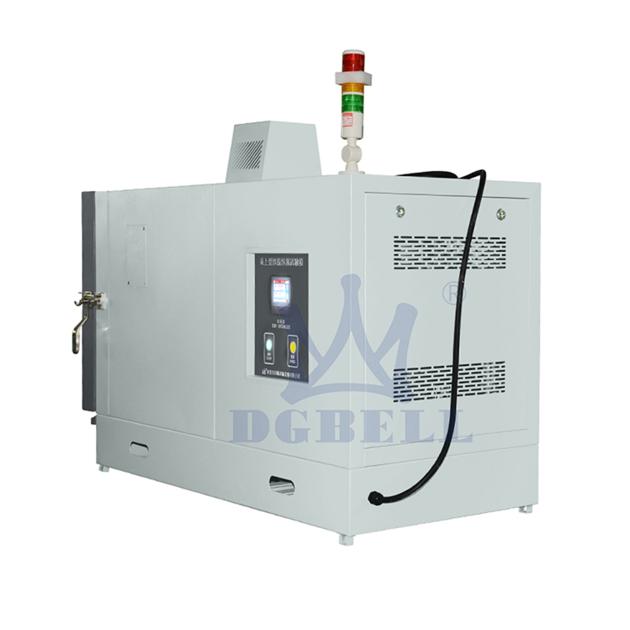

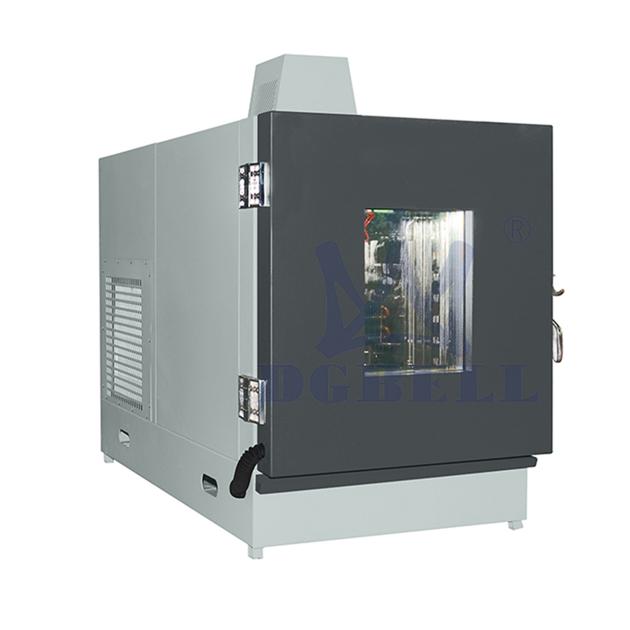

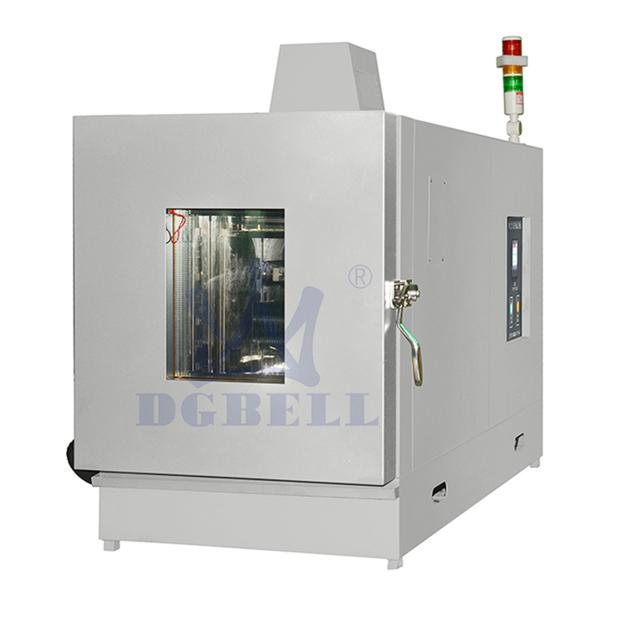

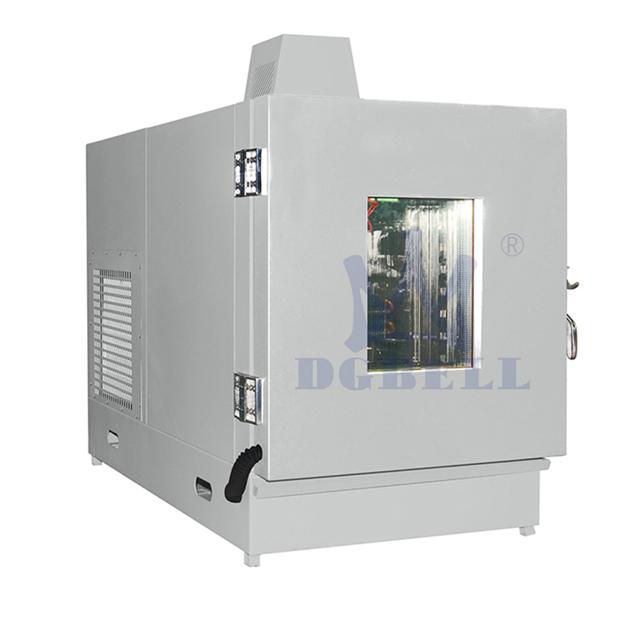

Picture for Reference

Standard Compliance
1.Manufacturing standard :
GB/T10586-2006 Specifications for damp heat chambers
GB/T10592-1989 Specification for low/high temperature test chambers
2.Inspection Standard :
3.GB/T5170.2-1996 Inspection methods for basic parameters of environmental
testing
equipments for electric and electronic products. Temperature testing
equipments;
GB/T5170.5-1996 Inspection on methods for basic parameters of environmental
testing equipments for electric and electronic products--Damp heat testing
equipments
3.Testing Standard Compliance :
GB2423.1-2008(IEC68-2-1)Environmental testing - Part 2: Test methods - Tests A:
Cold
GB2423.2-2008(IEC68-2-2)Environmental testing for electric and electronic
products
Test methods - Tests B:Dry Heat
GB2423.3-2006(IEC68-2-3)Environmental testing for electric and electronic
products
- Part 2: Testing method test Cab: Damp heat Steady state
GB2423.4-2008(IEC68-2-30)Environmental testing for electric and electronic
products - Part 2: Test method - Test Db: Damp heat,cyclic ( 12h+12h cycle)
GB2423.22-2008(IEC68-2-14)Environmental testing for electric and electronic
products-Part 2:Test methods-Test N:Change of temperature
GJB150.3A-2009(MIL-STD-810D)High temperature test
GJB150.4A-2009(MIL-STD-810D)Low temperature test
GJB150.9A-2009(MIL-STD-810D)Damp heat test
