Belt filter plant dewatering machine

product description
The powerful roll press dewatering machine is a professional mechanical dewatering equipment, suitable for mechanical pre-dewatering of distiller's grains such as distiller's grains, sweet potato slag, bean dregs, potato dregs, etc. It has continuous production, compact structure, convenient operation, labor saving, low rotation speed and no vibration. The utility model has the advantages of high output, less mechanical failure, special dehydration effect, low power consumption, low noise, convenient operation and maintenance, and so on.

In the dregs feed drying production line, the pre-dewatering by the roller press dewatering machine is adopted, which greatly reduces the running cost of the drying equipment and improves the drying quality. If the distiller's grains are dehydrated, the water content is generally above 80%. The drying machinery and equipment system cannot directly dry, and it is difficult to form an effective lifting material. The belt dewatering machine is used for pre-mechanical dewatering to reduce the water content by about 60%, which can reduce the difficulty of drying and lifting, and improve the quality of high-temperature deep drying and dewatering. The belt dewatering machine of Meibang Machinery has stable performance, low power consumption and high dewatering efficiency. It has application in many drying production lines and the technology is more mature.

Working principle diagram of strong roller press dewatering machine

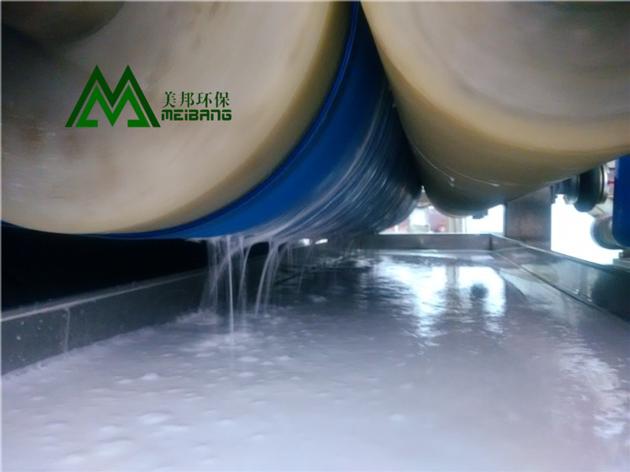

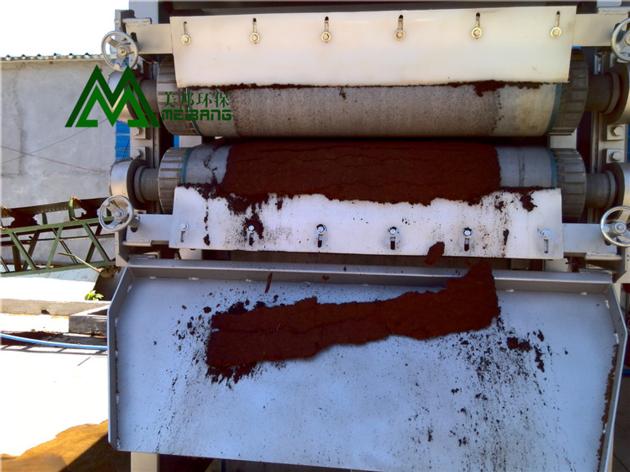

The material is laid on the filter belt by the feeding hopper, and the gravity dewatering zone, the nip zone, and the S-shaped extrusion zone are repeatedly pressed repeatedly, the fresh water is squeezed out, and the water is discharged in the lower water tank, and the dregs are gradually squeezed. Dewatering, and finally removed by the scraper discharger. Meibang's powerful dewatering equipment for the roller press dewatering machine successfully absorbs the advanced technology of domestic and foreign filter presses.
Structural features
This equipment mainly consists of: (1) main machine (waste residue dehydrator body) (2) air compressor (3) air source processor (4) electrical control box (5) washing net water filter structure.
The main part is mainly composed of 1, the frame 2, the feeding hopper 3, the filter screen 4, the tensioning device 5, the polarization adjusting device 6, the driving mechanism 7, the scraping device discharging device 8, various bearing seats and rollers 9, and the sewage tank 10, washing equipment and other components. As shown below:
Technical Parameters
Filter press model: DYQ2000P3
Host power: 11 KW
Complete set of power: 21 KW
Filter belt width: 2 meters
Appearance specifications: length: 4.5 meters, width 2.8 meters, height: 2.45 meters
Processing capacity: 6 cubic meters / hour
Equipment operation: automation does not require manual operation
Machine weight: 9 tons
