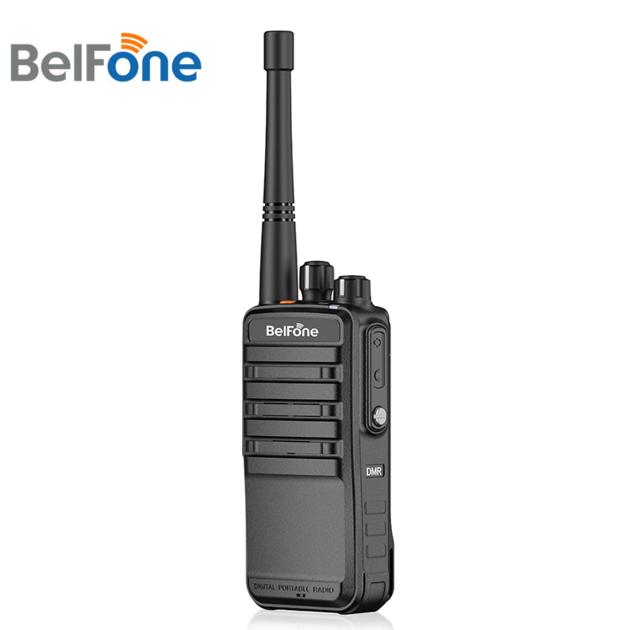

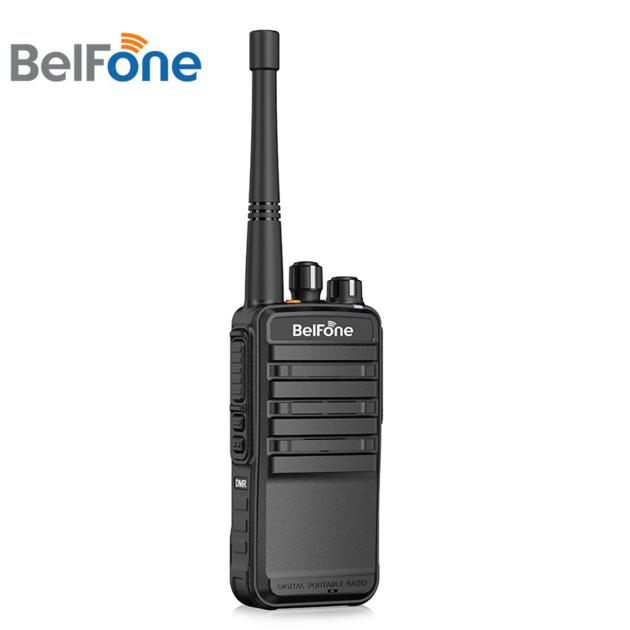

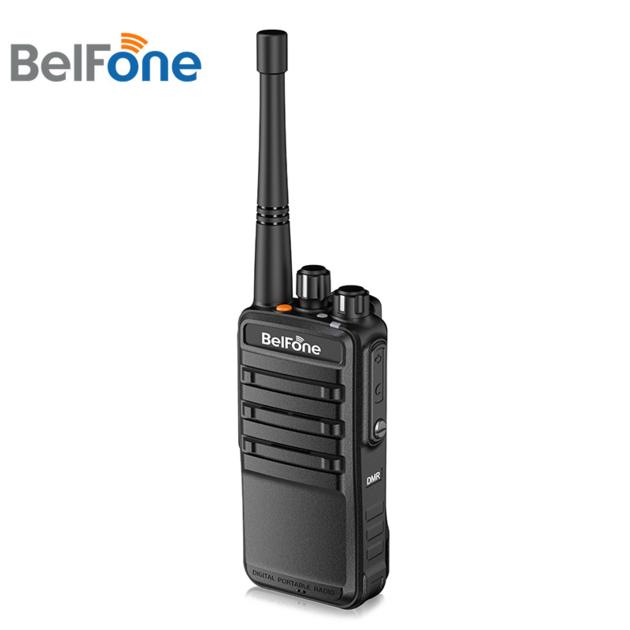

Belfone High Performance-Price Ratio 5 Watt UHF Range Walkie Talkie Two Way Radio BF-TD510
| Price: | US$ 167 / Piece |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | T/T |
| Port of Export: | Xiamen |
Product Details
| Model No.: | BF-TD510 | Brand Name: | BelFone |
|---|
| Certification: | FCC, CE |
|---|---|
| Specification: |
General
Frequency range VHF:136-174 MHz; UHF:350-390 MHz, 400-480 MHz, 450-520 MHz Channel Capacity 512 Zones 32 Channel Spacing 12.5KHz/25KHz Operating Voltage DC 7.4V (¯20%) Battery Capacity 2000 mAh Battery Life(5/5/90) Digital 22 Hours, Analog 16 Hours Recording Time 400 Hours Frequency Stability ¯1.5ppm Antenna Impedance 50Ω Dimensions (L×W×H) 57(L)* 32(W)* 119 (H)mm Weight 239g(Including Battery) Transmitter RF Output Power High Power: 5W; Low Power:1W 4FSK Modulation 12.5kHz Only data:7K60FXD; 12.5kHz data and audio:7K60FXE FM Modulation 12.5 kHz:8K50F3E; 25 kHz:16KΦF3E; Modulation Limiting +/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz FM Noise -40dB Conducted Emission -36 dBm≤1GHz/-30 dBm≥1GHz Adjacent Channel Power ≤-60dB Audio Response +1/-3 dB Audio Distortion 3% Digital Voice coder Type AMBE3000 Receiver Digital Sensitivity 5% BER:0.25 uV Analog Sensitivity 0.25 uV (12 dB SINAD) Intermodulation 60dB Adjacent Channel Selectivity 60 dB Spurious Response Rejection 60 dB FM Noise -40dB Audio Response +1/-3 dB Audio output power 1.5W Audio Distortion 3% (Typical) Conducted Spurious Emission -57dBm GPS Accuracy Horizontal Accuracy≤-10m(with well signal) TTFF (Time To First Fix) Cold Start < 1 Minute (with well signal) TTFF (Time To First Fix) Hot Start < 10 Second (with well signal) Environmental Specifications Working Temperature -20ºC-+60ºC Storage Temperature -30ºC-+85ºC Humidity MIL-STD-810C/D/E/F Standard Vibration & Shock MIL-STD-810C/D/E/F Standard Dustproof & waterproof IP68 |
Packaging & Delivery
| Packaging: | Standard Carton Box Packaging |
|---|---|
| Delivery/Lead Time: | 15 Days |
| Production Capacity: | 100000 Pieces/Month |
Product Description
DMO Pseudo Trunk
The user can choose slot 1 or slot 2 for communications. When one slot is occupied the radio will automatically switch into the free slot. Frequency efficiency is greatly increased.
DMO True 2-Slot
In direct mode, this radio supports two voice calls simultaneously due to DMR two timeslots, which means two communication paths on 1 frequency at no extra costs or frequency license.
Digital/analog Dual Modes
BF-TD510 gives you a smooth transition from analog to digital.
Long Battery Standard Time
BF-TD510 is a powerful radio with long battery life.(digital 22h & analog 16h).
Excellent Audio Quality
The AMBE3000 vocoder and FEC technology give BF-TD510 loud and clear digital audio.
Transmit Interrupt
This function enables a supervisor to interrupt a radio conversation in order to clear a channel for more important communication.
Remote Kill/Revive
Such functions enable you to kill or revive a radio over the air. This greatly facilitates dispatching work and can be especially useful should a radio happen to be lost. You can easily remote kill the lost radio and confidential information can be kept from leaking out.
Private Call, Group Call And All Call (programmable)
The versatile calling functions bring more efficiency to your teamwork.
Radio Priority-based Interruption
This function enables a radio with a higher level to interrupt communications between radios with lower levels, giving higher priority to radios with higher levels. This means better dispatching efficiency.
|
