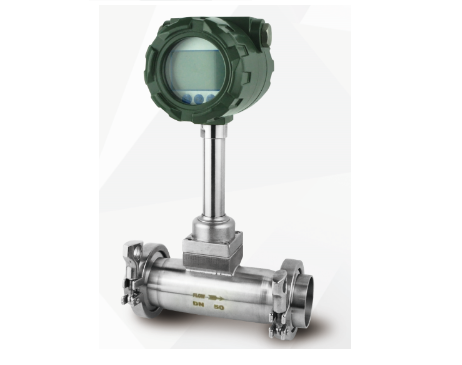

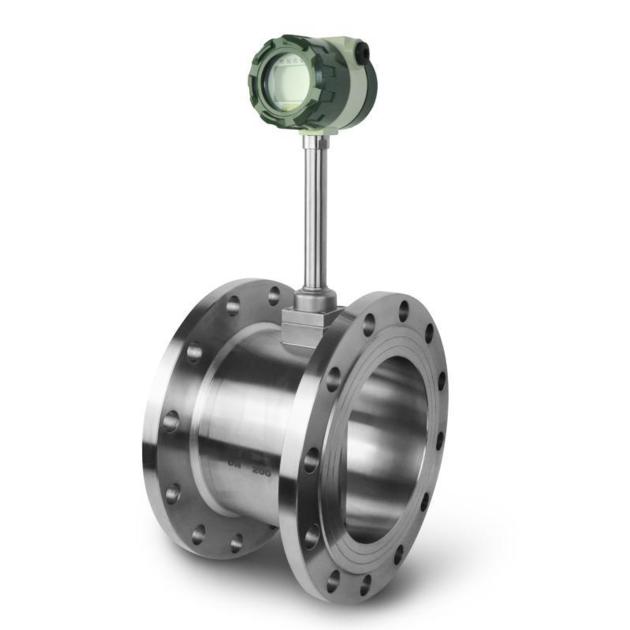

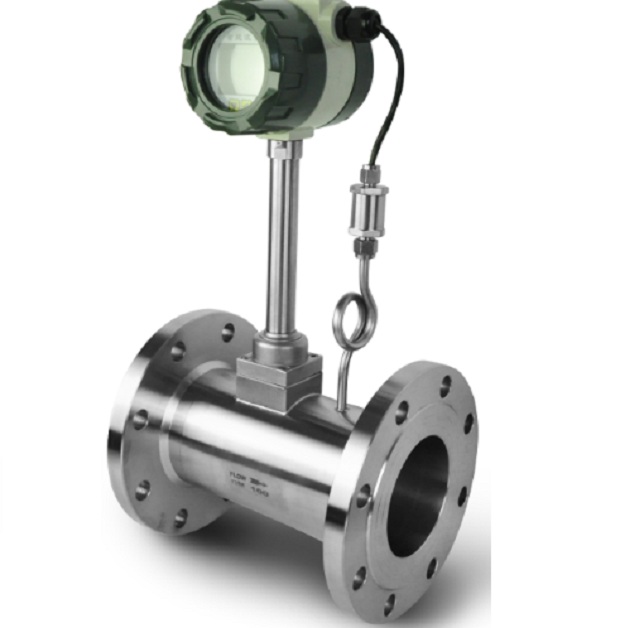

Battery powered wafer type vortex flow meter

Wafer Type Vortex Flow Meter for Liquid/Gas/Steams
Introduction:
The series of Vortex Flowmeter is based on Carmen Vortex Principle, which adopts piezoelectric crystal as testing components. It is a new kind of stress detecting vortex flowmeter. It has the advantages of wide range rate, high accuracy, low pressure loss, good medium generality, pulse signal output proportional to flow, convenient to connect with computer etc. The detector probe of sensor and the vortex generating body are installed separately, and the high temperature resistant piezoelectric crystal doesn't contact with medium, so the instrument is simple structure, good generality, and high stability.
The Vortex Flowmeter sensor can be used to detect and measure the flow of all kinds of gas, fluid and steam.

Technical Parameters:
Measured medium: All kinds of gas, fluid and steam
Nominal diameter: 25-500mm (Integrated-type) 300-2200mm (Insertion type)
Operating environment:
Environment temperature: -20­ C-60­ C
Liquid temperature: -40­ C -250­ C (Max 350­ C)
Relative humidity: 5%~90%
Nominal Pressure: 1.6Mpa 2.5Mpa 4.0Mpa
Measurement Range: Gas and steam: (5-70)m/s fluid: (0.5-7) m/s
Measurement Accuracy: ® 1% ® 1.5%
Output Signal: (4-20mA)+Pulse
Safety Protection: IP65
Explosion-proof level: Exd II CT1-6
Power Supply: DC24V
