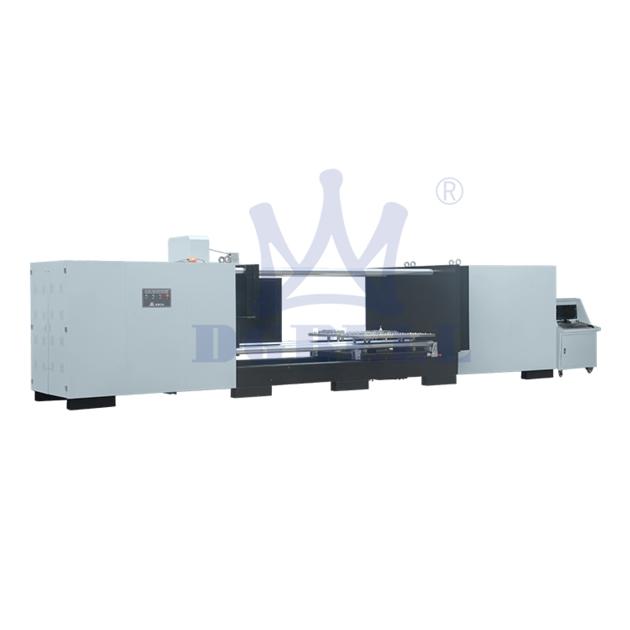

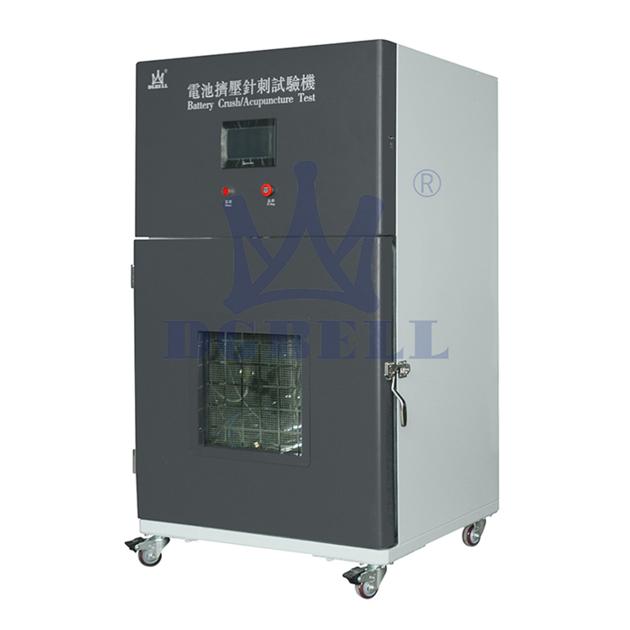

Battery Nail Penetration Test Equipment BE 8101 Safety Performance testing

Standard Compliance
1 GB/T 18332.2-2001 Nickle-Metal Hydride Batteries of Electric Road Vehicles
2 QC/T 743 Lithium-ion Batteries for Electric Vehicles
3 QC/T 744 Nickle-Metal Hydride Batteries for Electric Vehicles
4 Tests complied with International standards (ISO/IEC/SAE/JEVA/CEN etc),
internal
standard association and 863 program covering hydride electric vehicles
relating
to electric vehicle lithium-ion battery;
5 QB/T 2947.3-2008 Electric Bicycles-Cell or Battery and Chargers Part 3: Li-
ion
Batteries and Chargers
6 DB12/T246-2005 Electric Bicycles-Cell or Battery and Charger Standard Test;
7 GB 19521.11-2005 Safety Code for Inspection of Hazardous Properties for
Dangerous Goods of Lithium Batteries;
Specification
Tester Model
Test Zone (MM)
Overall Dimension (MM)
BE-9002D-2T
200X200X200
W750XD650XH1 , 800
BE-9002D-5T
600X600X600
W1000XD900X22 , 00
BE-AP-9002D
800X800X800
W3000XD1200XH1 , 300
BE-AP-9002T
1000X1000X1000
W3300XD150 , 0XH1500
Technical Parameters
Auxiliary Function
Voltage, temperature sampling, camera monitoring system. Fire-extinguishing
system, smoke evacuation & filtering system
Penetration Speed
0 ~ 80mm/s(controllable), 200 mm/s can be customized
Test Zone(mm)
200X200X200MM,600X600X600MM,800X800X80 , 0MM,1000X1000X1000MM (Available to
customize)
Overall Dimension
Subject to actual design and manufacture
Optional Parameters
Voltage Range
0—10V,0--100V,0—1000V
Temperature Sampling Range
0 ~ 1200℃
Voltage, Temperature Accuracy
¯1%FS
Voltage Resolution
1mV
Temperature Resolution
0.1℃
Standard Parameter
P
Par
Speed
0 ~ 80mm/s(Controllable), 200 mm/s (Available to customize)
Nail Travel
0—1000MM to select
Structure

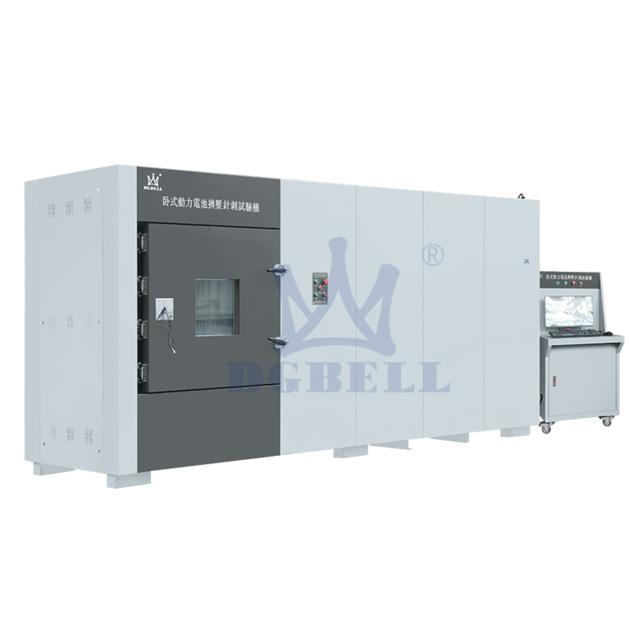

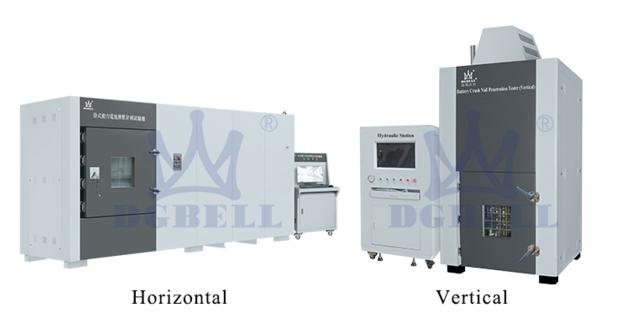

Vertical & horizontal (select according to actual size)
High Temperature Nail Regulation
Diameter φ3mm~φ8mm
Nail Penetration Method
Horizontal, vertical
Nail Deformation
No (Computerize can be customized)
Nail Remaining Time
0~99 H 99M 99S
Driven Method

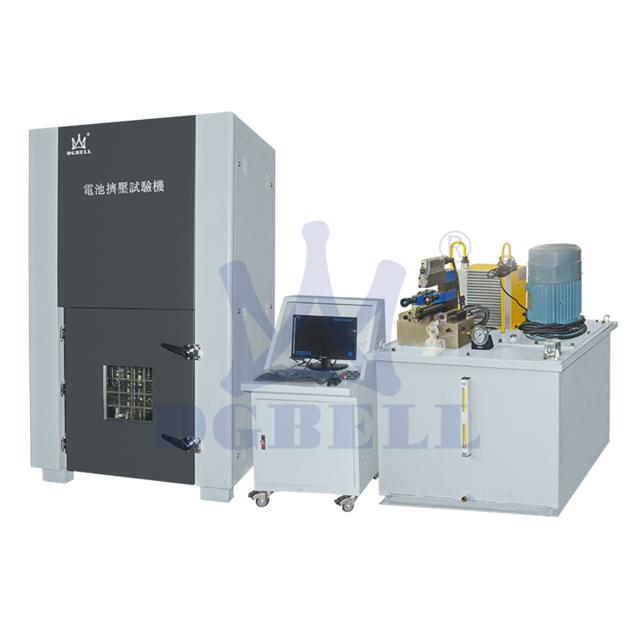

Hydraulic
Nail Penetration Speed
¯0.1MM/S
Force Accuracy
¯1%
Structure
Chamber
Indepe , ndent vertical & horizontal test machine and control system
Communication
No (computerize can be customized)
High temperature Nail
Diameter φ3mm~φ8mm (available to customize)
Data Acquisition Module
Independent remote sampling, multi-voltage, temperature, current acquisition
channel (optional)
Channel Quantity Configuration
2-Channel, 4-Channel, 8-Channel, multi-data acquisition system (optional)
Camera Monitoring System
Test zone installed with high definition camera monitoring system in remote
control with explosion-proof (optional).
Standard Configuration
Nail Penetration Machine/1 set, control cabinet/1 set, diameter φ3mm~φ8mm,
high
temperature nail/1 set
Test Fixture
Customize according to actual size
Power Source
AC380V 50HZ 3P5W
Working Environment
0℃~45℃
Features
Complied with previous version QC 743:
High temperature steel nail with its diameter at φ3mm~φ8mm penetrate at a
speed
at 10mm/s~40mm/s into at least 3 battery plates by vertical direction (nail
remains into the battery cell);
Complied with newly version QC 743:
High temperature steel nail (angle of nail point at 60®and clear surface
without
rust and grease) with its diameter at φ20mm~φ30 mm penetrate at a speed at
10mm/s~40mm/s into at least 3 battery plates by vertical direction (nail
remains
into the battery cell and keep observation by 1 hour);
