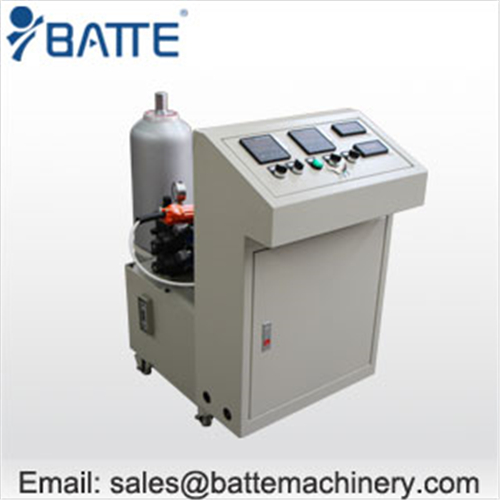

Batte Standard PLC Control System Configured for Melt Pump

BATTE Standard S20 melt pump control system adopts PLC mode and advanced human-machine interface, which can wholly control the pressure, temperature, flow, rotation speed, make the free change between automatic and manual control function.

It can significantly reduce the pressure pulsation of the extruder caused by relative parameters, thus causes to stabilize the outlet pressure, and make the full use of the merits of melt pump in metering extrusion.

It is configured with full set of Siemens PLC, control unit for pressure, temperature and flow, vector inverter, outlet and inlet pressure sensor, 5.7 inch touch-screen.

S20 Control System Consists of the Following Mounting:
1.2 closed-loop pressure control;
2. Top and bottom limitation pressure alarm;
3.3 independent temperature control zone/ comparator;
4. Flow control
5. Automatic start-up and shut-down;
6. Touch screen human-machine interface;
7. Continuous monitoring of process value
Environmental Conditions: Transportation and Storage
between -40® C and 70® C
Ambient Temperature Range between 0® C and 55® C Horizontal Installation
Humidity Range The relative humidity of air is ÿ 95%, without icing or condensation.
Altitude Less than1000M
Shock and Vibration Offset: 0.075mm(10^58Hz)
Accelerated Speed:9.8m/s2(>58^.500Hz )
Atmospheric Contamination It is not allowed to install the controller in the presence of atmospheric pollution,such as dust, corrosive gas environment.

Electromagnetic Radiation Never install the controller in the places close to the electromagnetic radiation source.

Water Please leave the controller far from where it is exposed to water. For instance, do not install the controller under the pipe, beacuse there might be condensation in the pipe surface. Furthermore, it is not allowed to install the controller where there is excessive humidity and there might be condenstion.

Technical Parameter
Temperature Sensor K type Thermoucouple 0-400®C Accuracy 0.2®C
Pressure Sensor 0-35Mpa Precision 1/3000
Main Controller Requirement Being connected to our star-up, stop and emergency stop signals
Being connected to our speed output signal 0-10VDC
Heating Component Resistor type heating components are adopted, and the model changes according to the melt pump model.
