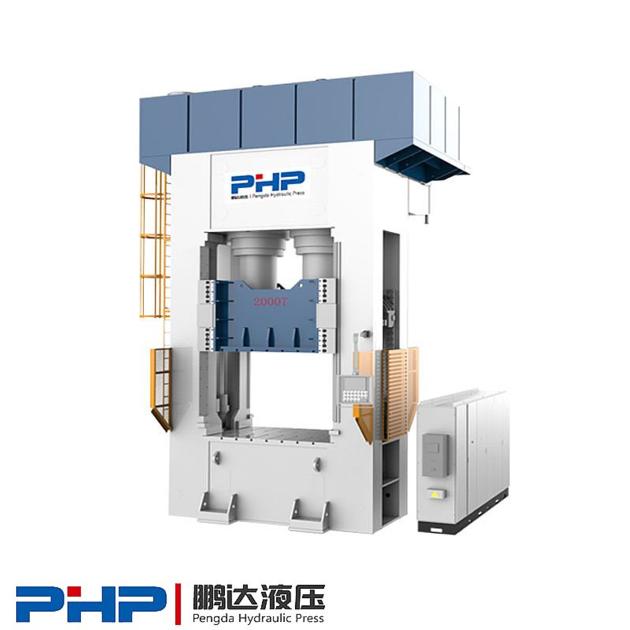

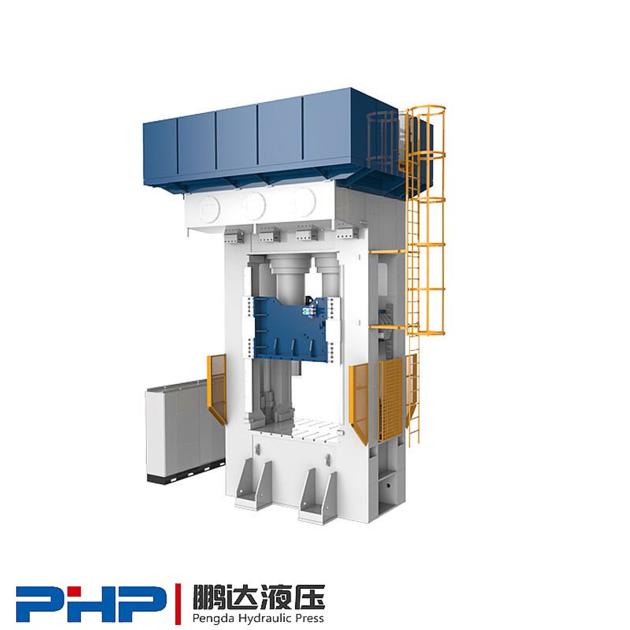

Basic Composite Press

Price:	US$ 100000
Minimum Order:
Payment Terms:	credit card
Port of Export:

Product Details

Model No.:		Brand Name:

Certification:
Specification:	Name Brand Name Brand Cylinder Rexroth Chinese OEM supplier PLC and module Siemens Seal ring England Hallite Touch screen Siemens Hydraulic valve Rexroth Lower electrical components Schneider Hydraulic pump Germany Eckerle / USA Parker Servo motor Italy Phase Quick-change coupler Japan Nitto Servo driver Japan Yasakwa Anti-explosion chain Italy O+P Displacement sensor Germany NOVO Air connector Germany Harting Pressure sensor Italy Gefran PARAMETERS Type Unit YP78-4000 YP78-3000 YP78-2500 YP78-2000 YP78-1500 YP78-1000 Pressure kN 40000 30000 25000 20000 15000 10000 Max. liquid working pressure Mpa 25 25 25 25 25 25 Opening Mm 3500 3200 3000 2800 2800 2600 Stroke Mm 3000 2600 2400 2200 2200 2000 Working table size Mm 4000×3000 3500×2800 34002800 34002600 34002600 34002600 Total height above the ground Mm 12500 11800 11000 9000 8000 7200 Foundation depth mm 2200 2000 1800 1600 1500 1400 Fast down speed Mm/s 300 300 300 300 300 300 Pressing speed Mm/s 0.5-5 0.5-5 0.5-5 0.5-5 0.5-5 0.5-5 Fast return speed Mm/s 150 150 150 150 150 150 Power kW 175 130 120 100 90 60

Certification:

Specification:

Name Brand Name Brand
Cylinder Rexroth Chinese OEM supplier PLC and module Siemens
Seal ring England Hallite Touch screen Siemens
Hydraulic valve Rexroth Lower electrical components Schneider
Hydraulic pump Germany Eckerle / USA Parker Servo motor Italy Phase
Quick-change coupler Japan Nitto Servo driver Japan Yasakwa
Anti-explosion chain Italy O+P Displacement sensor Germany NOVO
Air connector Germany Harting Pressure sensor Italy Gefran

PARAMETERS
Type Unit YP78-4000 YP78-3000 YP78-2500 YP78-2000 YP78-1500 YP78-1000
Pressure kN 40000 30000 25000 20000 15000 10000
Max. liquid working pressure Mpa 25 25 25 25 25 25
Opening Mm 3500 3200 3000 2800 2800 2600
Stroke Mm 3000 2600 2400 2200 2200 2000
Working table size Mm 4000×3000 3500×2800 3400*2800 3400*2600 3400*2600 3400*2600
Total height above the ground Mm 12500 11800 11000 9000 8000 7200
Foundation depth mm 2200 2000 1800 1600 1500 1400
Fast down speed Mm/s 300 300 300 300 300 300
Pressing speed Mm/s 0.5-5 0.5-5 0.5-5 0.5-5 0.5-5 0.5-5
Fast return speed Mm/s 150 150 150 150 150 150
Power kW 175 130 120 100 90 60

Packaging & Delivery

Packaging:
Delivery/Lead Time:
Production Capacity:

Product Description

PHP is a composite hydraulic press solution provider in China. Our company aims to design and develop high-efficiency, energy-saving products and has provided many industry solutions for clients at home and abroad.

Wuxi Pengda has created the servo oil-electrical hydraulic press which is an energy-saving, oil-tight and stable hydraulic press, it solves the problems of the traditional hydraulic press while creating a green production environment.

Providing good customer service is the main goal of PHP. We put the needs of the customer first and will make every effort in solving their problems. Hydraulic Press for Composite Materials
The basic composite hydraulic press which is independently researched and developed by PHP, adopts pure oil-electrical servo system instead of traditional accumulator system, saving energy, running smoothly, saving space. High technology requirements lead to oil tight, safety and stability. You can also choose environmental protective system to create better production environment in the workshop.
