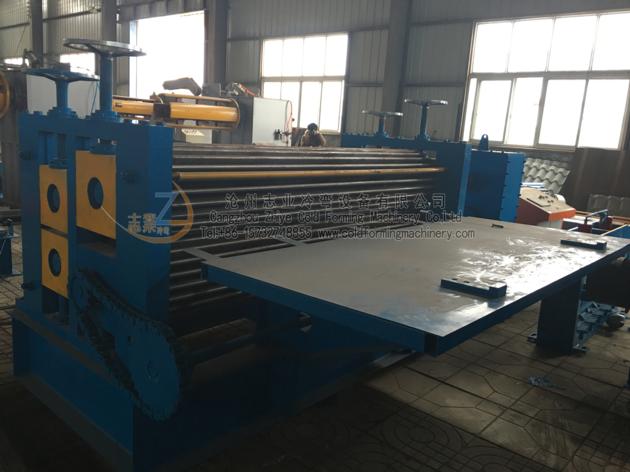

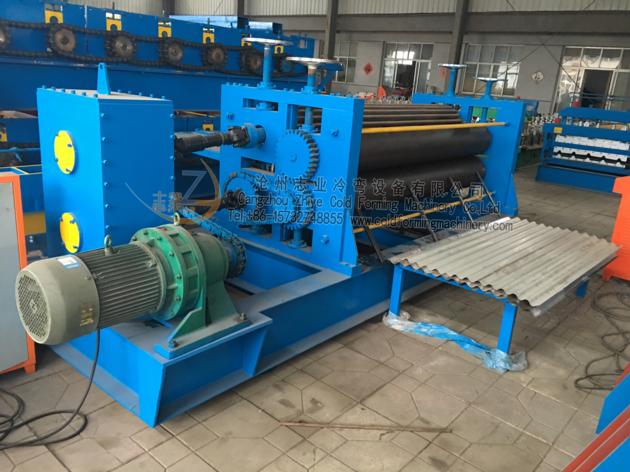

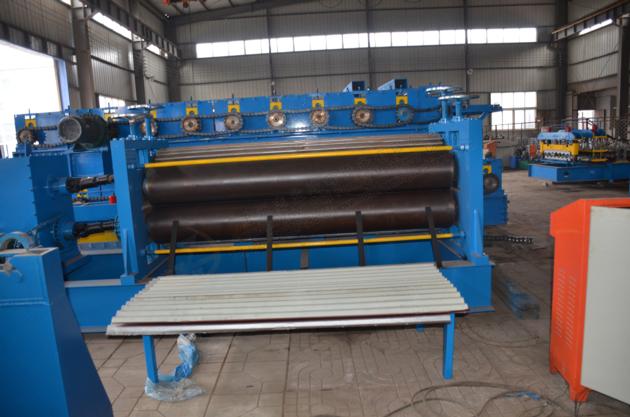

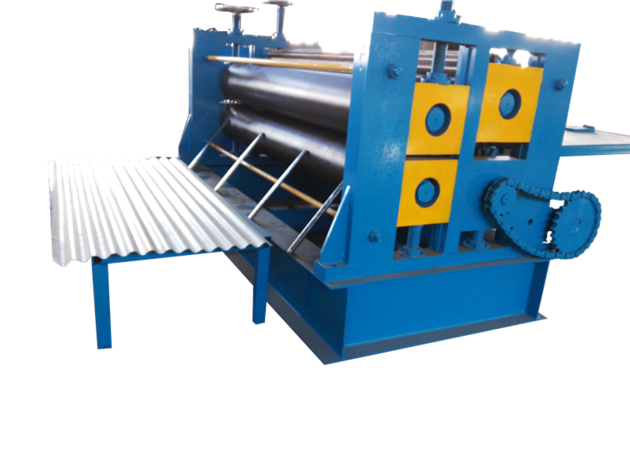

Barrel Corrugated Roofing Sheet Making Machine

Barrel Corrugated Roofing Sheet Making Machine:

The tiles produced by this Barrel Corrugated Roofing Sheet Making Machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working.It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on.

Barrel Corrugated Roofing Sheet Making Machine Usage:Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.


1.Suitable material
Color steel sheet , galvanized steel sheet,aluminum sheet
2.Installation Dimension (L*W*H):
6.5m*1.5m*1.4m
3.Main motor power
3KW with Cycloidal reducer
4.Hydraulic station power
3KW
5. Hydraulic oil pump
CB-E 310
6.Thickness of material
0.2mm~0.8mm
7.Diameter of principal axis
Φ70-90mm
8.Material expand width
1000,1200,1250mm
9.Electric tension
380V 3phase 50HZ or as the customer's requirements
10.Material of roller
High grade 45# forged steel plated with hard chrome plating
11.Controlling system
PLC
12.Processing speed
3-6m/min
13.Processing precision within
1.00mm (depend on design)
14.Material of cutting blade
Cr12 mould steel with quenched treatment
15.Kind of drive
0.6 inch chain link bearing model 6210
16.Roller station
8-20 Rollers
17.Roller material
high grade 45#steel; Cr12 quenching
18. Leak frame load-bearing
4.6T
