Barbed Wire Iowa Type

Barbed Wire Iowa Type

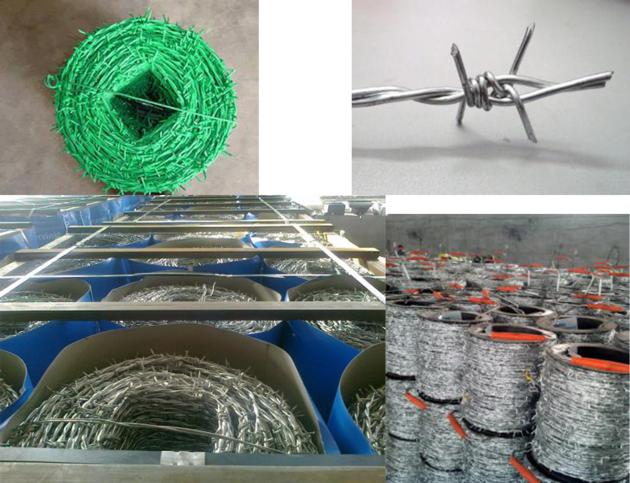

Barbed Wire IOWA Type is the most popular and widely used barbed wire product, available mainly in standard galvanizing or PVC coating materials. The wires are braided with a system of constant torsion, with barb prongs interlaced in the wires. As a traditional product for protection and privacy, barbed wire is widely used in civil and military life. We supply barbed wire made in carbon steel, further galvanized with good corrosion resistance.

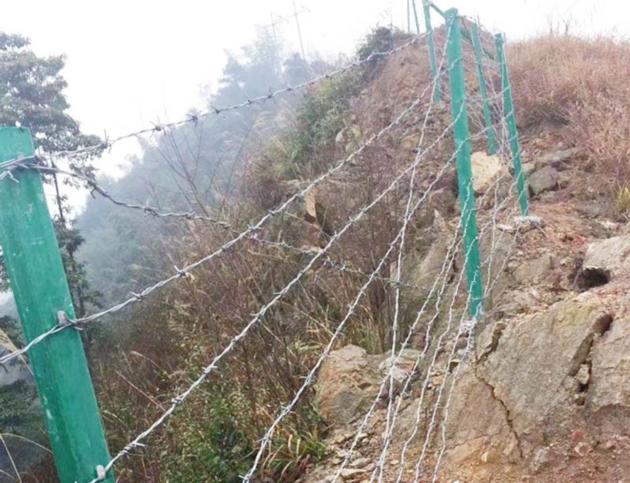

Barbed Wire offered by us is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
Packing: in coils, wooden reel , pallet.
Specifications of Galvanized Barbed Wire & PVC Coated IOWA Barbed Wire
Type Wire Gauge (SWG) Barb Distance (cm) Barb Length (cm)
Electric Galvanized Barbed Wire;
Hot-dip zinc plating barbed wire 10# x 12# 7.5-15 1.5-3
12# x 12#
12# x 14#
14# x 14#
14# x 16#
16# x 16#
16# x 18#
PVC coated barbed wire;
PE barbed wire before coating after coating 7.5-15 1.5-3
1.0mm-3.5mm 1.4mm-4.0mm
BWG11-BWG20 BWG8-BWG17
SWG11-SWG20 SWG8-SWG17
PVC PE coating thickness: 0.4mm-0.6mm;
different colors or length are available at customers request.
Standard Specification Weight of IOWA Barbed Wire
Gauge of
Strand and Barb in B.W.G. Approximate Length per Kilo in Meter
Barbs Spacing 3" Barbs Spacing 4" Barbs Spacing 5" Barbs Spacing 6"
12x12 6.0617 6.7590 7.2700 7.6376
12x14 7.3335 7.9051 8.3015 8.5741
12-1/2x12-1/2 6.9223 7.7190 8.3022 8.7221
12-1/2x14 8.1096 8.814 9.2242 9.5620
13x13 7.9808 8.899 9.5721 10.0553
13x14 8.8448 9.6899 10.2923 10.7146
13-1/2x14 9.6079 10.6134 11.4705 11.8553
14x14 10.4569 11.6590 12.5423 13.1752
14-1/2x14-1/2 11.9875 13.3671 14.3781 15.1034
15x15 13.8927 15.4942 16.6666 17.5070
15-1/2x15-1/2 15.3491 17.1144 18.4060 19.3386
