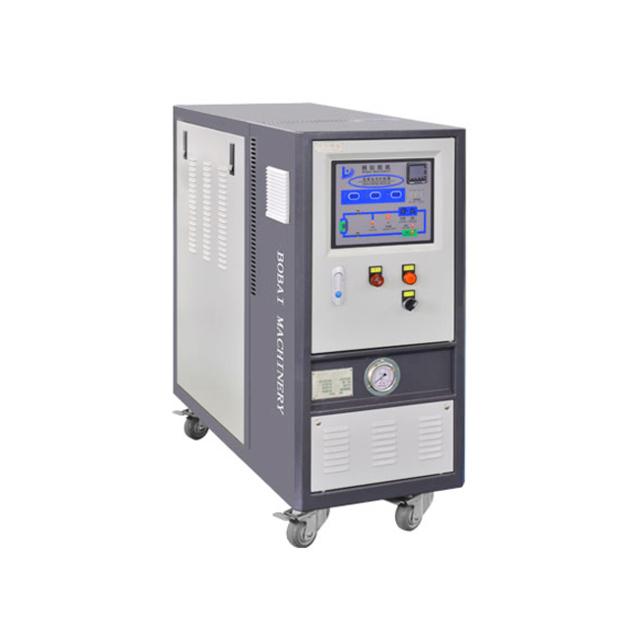

BOBAI high temperature Injection molding water mold temperature machine with heating pump
| Price: | US$ 1200 / Piece |
|---|---|
| Minimum Order: | 1 piece |
| Payment Terms: | 40% T/T payment in advance,60% paid before shipmen |
| Port of Export: | shanghai |
Product Details
| Model No.: | BGWH-10 | Brand Name: | BOBAI |
|---|
| Certification: | CE ISO9001 |
|---|---|
| Specification: |
Condition:
New Type: Water Temperature Machine Application: seeds sprout machine Place of Origin: Shanghai, China (Mainland) Brand Name: BOBAI Temperature Range: normal temperature - 180 ℃ Temperature Control Accuracy: PID ¯1℃ Dimension(L*W*H): 750MM*360MM**780MM Weight: 75 KG Internal Piping Size: 1/2INCH Voltage: AC3 380V 50HZ 3P+E Power(W): 9.75kw Certification: ISO9001 CE After-sales Service Provided: Video technical support, Engineers available to service machinery overseas Warranty: 1 Year Name: Injection molding water mold temperature machine with heating pump Color: White Blue or customized Cooling Method: Indirect Cooling Pump motor power: 0.75 kw Max Pump Flow: 110 L/MIN Pumping head: 15 M Max power supply: 10 kw ODM: Yes Alert Function: Overload/overtemperature/inc |
Packaging & Delivery
| Packaging: | 1. Multiple Packing : Proved by tests of thecompression resistance , throwing . And highly secured |
|---|---|
| Delivery/Lead Time: | within 25 working days after deposit arrives. |
| Production Capacity: | 9kw heating |
Product Description
BOBAI high temperature Injection molding water mold temperature machine with heating pump
Temperature control range: cooling water into the water temperature to 150℃ →180℃
Machinery and piping components
Multiple piping system explosion-proof equipment
Automatic air-exhausting function after startup
High performance quality water pump
The function of free switching of heating power
Indirect cooling system for heat exchangers
The pipeline system adopts 316 stainless steel seamless tube/non-ferrous metal material
The imported heating wire of Sweden achieves excellent thermal efficiency and long service life
Filters are installed in the media circulation loop and the cooling water supply pipeline
Electrical and control components
Isolation type electrical control box
The appliance chooses the global famous brand supplier
Electronic safety temperature controller
The fault direct display is convenient for maintenance and maintenance
The unit has perfect safety protection system
Easy-to-read display, which can display system running state, set temperature, operating temperature and return medium temperature.
Optional parts/customizer
gassing and return water function
RS485 remote communication
Instant cooling shutdown
Multi-point temperature control unit
Steam indirect heating system
Equipped with 7-inch color touch screen, PLC
Customizable pump power and heating power
Solid state relay, three-phase electronic regulator
A connector for a variety of analog and type-type electrical interfaces
Continuous control with electric or pneumatic control valves
No mechanical seal high temperature magnetic drive pump
Other high requirement piping systems and electrical selection
|
