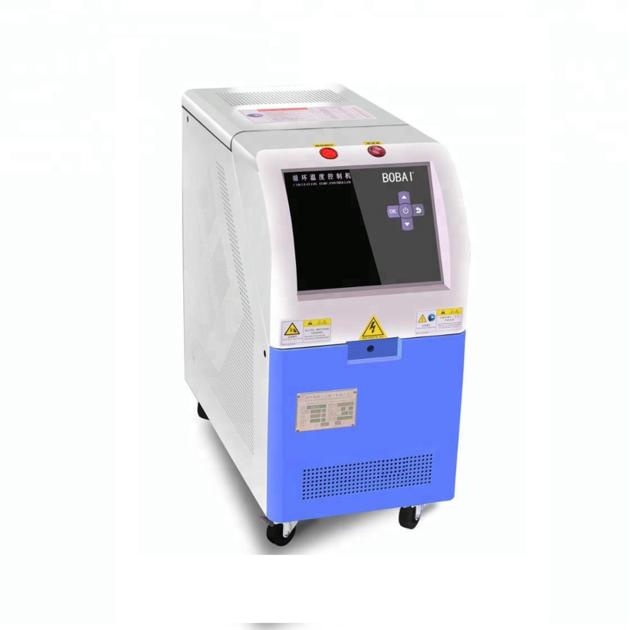

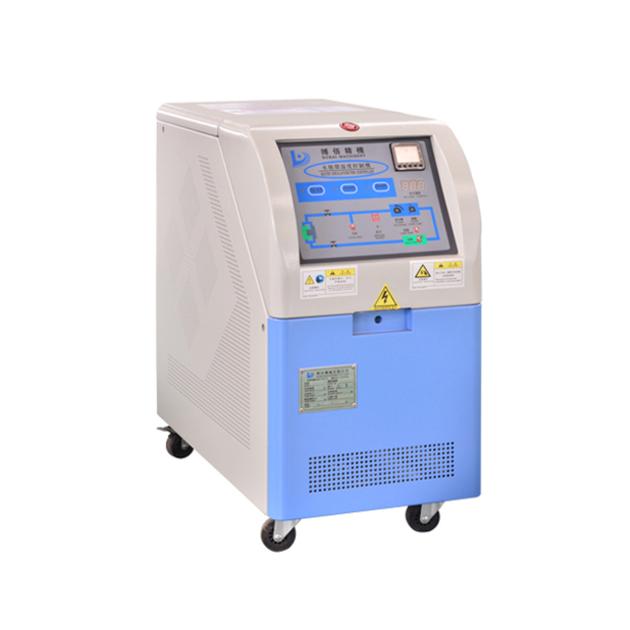

BOBAI good quality industrial water heaters for Kraussmaffei injection molding machine
| Price: | US$ 1100 / Sheet |
|---|---|
| Minimum Order: | 1 piece |
| Payment Terms: | 40% T/T payment in advance,60% paid before shipmen |
| Port of Export: | shanghai |
Product Details
| Model No.: | BWM-05 | Brand Name: | BOBAI |
|---|
| Certification: | CE ISO9001 |
|---|---|
| Specification: |
Condition:
New Type: Water Heater Power Source: Hot Water / Steam Place of Origin: Shanghai, China (Mainland) Brand Name: BOBAI Dimension(L*W*H): 625mm*325mm*580mm Weight: 62kg Voltage: 3N-380V 50HZ Power(W): 6kw Certification: CE ISO9001 Warranty: 1 year Name: industrial water heaters for Kraussmaffei injection molding machine Color: White or customized Cooling Method: Indirect Cooling Pump motor power: 0.37 kw Max Pump Flow: 23 L/MIN Pumping head: 18 M Max power supply: 6.5 kw ODM: Yes OEM: Yes Alert Function: Overload/overtemperature/incomplete phase/water shortage/pump reversal After-sales Service Provided: Engineers available to service |
Packaging & Delivery
| Packaging: | 1. Multiple Packing : Proved by tests of thecompression resistance , throwing . And highly secured |
|---|---|
| Delivery/Lead Time: | within 25 working days after deposit arrives. |
| Production Capacity: | 1000 pieces per month |
Product Description
BOBAI good quality industrial water heaters for Kraussmaffei injection molding machine
Temperature control range: cooling water into the water temperature to 120℃
Machinery and piping components
Explosion - proof device for piping system
Automatic air-exhausting function after startup
The function of free switching of heating power
High performance quality water pump can guarantee long time continuous work
Piping system adopts stainless steel seamless tube/non-ferrous metal material
Direct cooling system without heat exchanger
The imported heating wire in Sweden significantly increases thermal efficiency and extends service life
Filters are installed in the media circulation loop and the cooling water supply pipeline
Electrical and control components
Isolation type electrical control box
The appliance adopts the global famous brand supplier
The fault direct display is convenient for maintenance and maintenance
The unit has perfect safety protection system
Easy-to-read display, which can display system running state, set temperature, operating temperature and return medium temperature
Optional parts/customizer
gassing and return water function
RS485 remote communication
Instant cooling shutdown
Multi-point temperature control unit
Steam indirect heating system
Indirect cooling heat exchanger
Equipped with a 7-inch color touch screen
Customizable pump power and heating power
Solid state relay, three-phase electronic regulator
No mechanical seal high temperature magnetic drive pump
Other required piping systems and electrical selection
|
