BOBAI PLC control high temp heat conduction oil heaters thermostat for rotocure machines
| Price: | US$ 2000 |
|---|---|
| Minimum Order: | 1 piece |
| Payment Terms: | 40% T/T payment in advance,60% paid before shipmen |
| Port of Export: | shanghai |
Product Details
| Model No.: | BDDM-36 | Brand Name: | BOBAI |
|---|
| Certification: | CE ISO9001 |
|---|---|
| Specification: |
Condition:
New Type: Oil Heater Power Source: Electric Place of Origin: Shanghai, China (Mainland) Brand Name: BOBAI Dimension(L*W*H): 1600mm*600mm*1400mm Weight: 300kg Voltage: 3N-380V Certification: CE ISO9001 Warranty: 1 year After-sales Service Provided: Free spare parts, Video technical support, Online support, Engineers available to service machinery overseas Name: high temp heat conduction oil heaters thermostat for rotocure machines Color: White or customized Cooling Method: Indirect Cooling Pump motor power: 2.2 kw Max Pump Flow: 60 L/MIN Max Pump Pressure: 5KG/CM2 Max power supply: 63kw OEM/ODM: Yes/Yes Alert Function: Overload/overtemperature/inc |
Packaging & Delivery
| Packaging: | 1. Multiple Packing : Proved by tests of thecompression resistance , throwing . And highly secured |
|---|---|
| Delivery/Lead Time: | within 25 working days after deposit arrives. |
| Production Capacity: | 1000 pieces per month |
Product Description

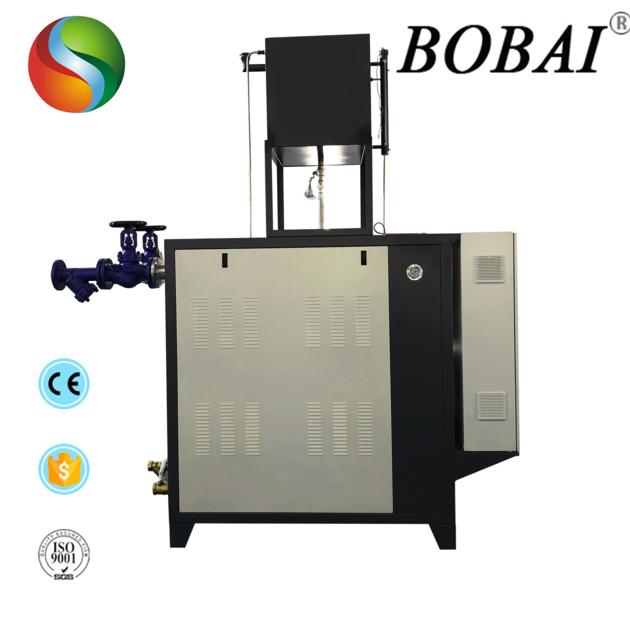

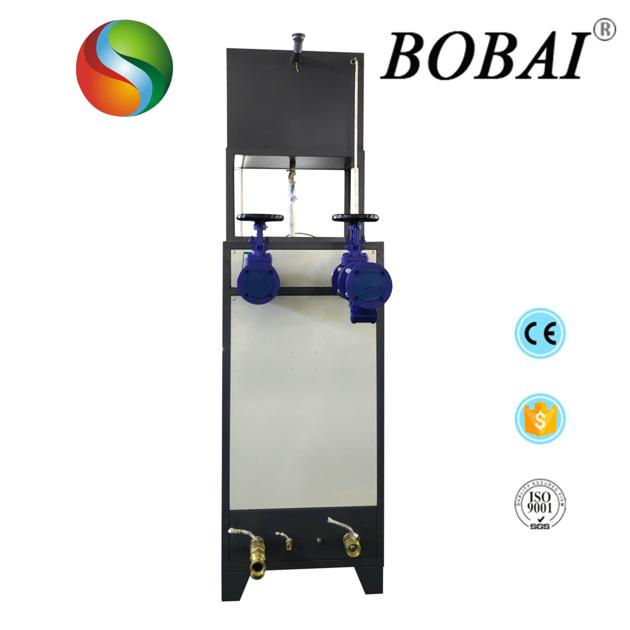

BOBAI PLC control high temp heat conduction oil heaters with separate fuel tank capacity
Temperature control range: cooling water into the water temperature to 320℃
Machinery and piping components
Start the automatic exhaust function
High performance high temperature, high temperature and no axial magnetic drive pump
The function of free switching of heating power
The piping system adopts seamless steel tube/non-ferrous materials
Sweden imported high efficiency heating wire to achieve excellent thermal efficiency
Indirect cooling system for heat exchangers
Filters are installed in the media circulation loop and the cooling water supply pipeline
Electrical and control components
Isolation type electrical control box
The appliance chooses the global famous brand supplier
Electronic safety temperature controller
The fault direct display is convenient for maintenance and maintenance
The unit has perfect safety protection system
Easy-to-read display, which can display system running state, set temperature, operating temperature and return medium temperature.

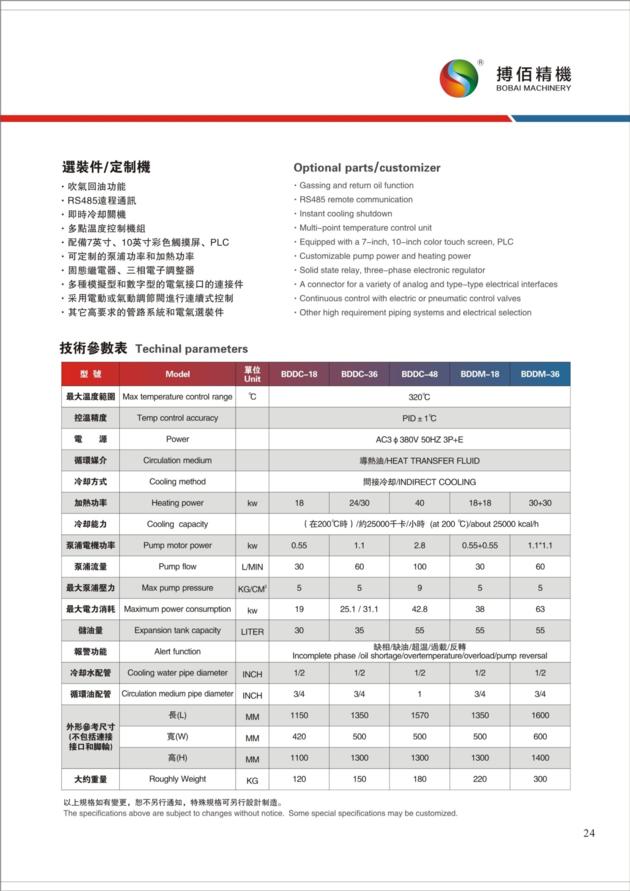

Optional parts/customizer
gassing and return oil function
RS485 remote communication
Instant cooling shutdown
Multi-point temperature control unit
Equipped with a 7-inch, 10-inch color touch screen, PLC
Customizable pump power and heating power
Solid state relay, three-phase electronic regulator
A connector for a variety of analog and type-type electrical interfaces
Continuous control with electric or pneumatic control valves
Other high requirement piping systems and electrical selection
|
