BOBAI 20hp condensing type chilled water maker for glue spray machine
| Price: | US$ 4500 / Sheet |
|---|---|
| Minimum Order: | 1 piece |
| Payment Terms: | 40% T/T payment in advance,60% paid before shipmen |
| Port of Export: | shanghai |
Product Details
| Model No.: | BCW-20 | Brand Name: | BOBAI |
|---|
| Certification: | CE ISO9001 |
|---|---|
| Specification: |
Condition:
NEW Type: Water-Cooled Place of Origin: Shanghai, China (Mainland) Brand Name: BOBAI Voltage: 3N-380V/415V 50HZ Dimension(L*W*H): 1800MM*940MM*1400MM Weight: 310KG Certification: CE, ISO9001 Warranty: One year After-sales Service Provided: Free spare parts, Video technical support, Online support, Engineers available to service machinery overseas Name: BOBAI 20hp condensing type chilled water maker for glue spray machine Color: White or customized Cooling Method: Indirect Cooling Comperssor type: totally closed corter type or piston type Cooling Capacity: 65 kw Cooling water flow: 13.4 M3/h Freeze water flow: 11.2 M3/h ODM/OEM: Yes/Yes Alert Function: Overload/overtemperature/inc |
Packaging & Delivery
| Packaging: | 1. Multiple Packing : Proved by tests of thecompression resistance , throwing . And highly secured |
|---|---|
| Delivery/Lead Time: | within 25 working days after deposit arrives. |
| Production Capacity: | 1000 pieces per month |
Product Description

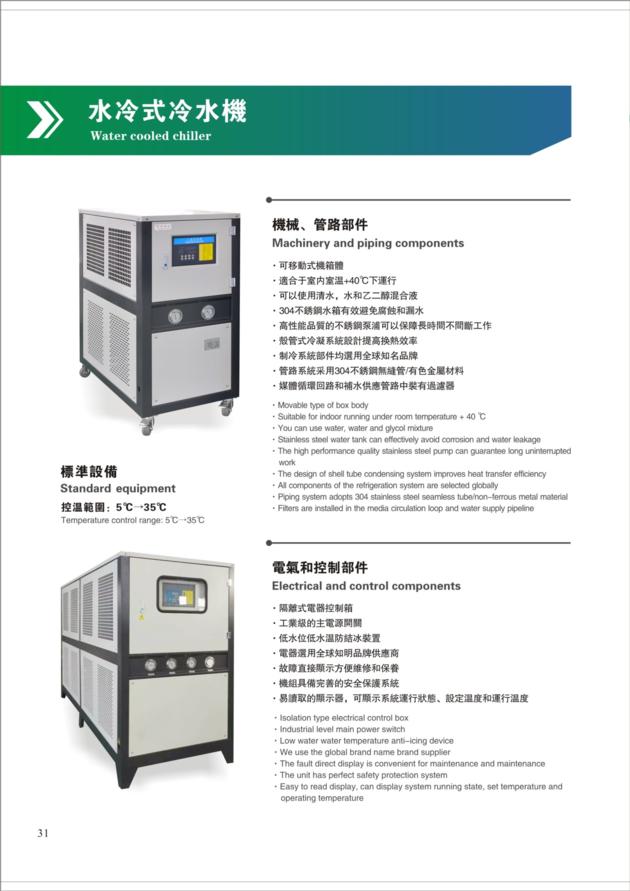

Water cooled chiller
Standard equipment
Temperature control range: 5℃ →35℃
Machinery and piping components
Movable type of box body
Suitable for indoor running under room temperature + 40 ℃
You can use water, water and glycol mixture
Stainless steel water tank can effectively avoid corrosion and water leakage
The high performance quality stainless steel pump can guarantee long uninterrupted work
The design of shell tube condensing system improves heat transfer efficiency
All components of the refrigeration system are selected globally
Piping system adopts 304 stainless steel seamless tube/non-ferrous metal material
Filters are installed in the media circulation loop and water supply pipeline
Electrical and control components
Isolation type electrical control box
Industrial level main power switch
Low water water temperature anti-icing device
We use the global brand name brand supplier
The fault direct display is convenient for maintenance and maintenance
The unit has perfect safety protection system
Easy to read display, can display system running state, set temperature and operating temperature.

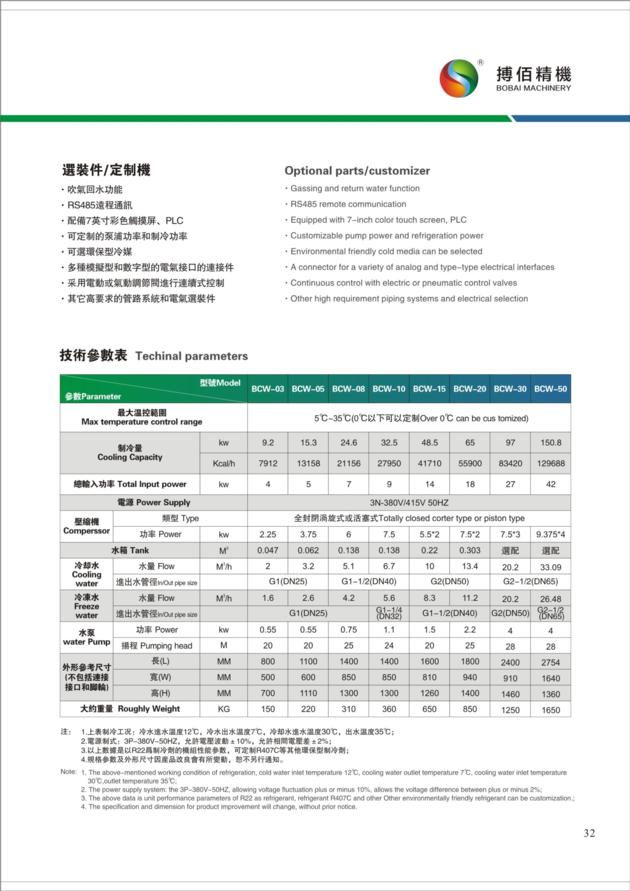

Optional parts
Air return function/customizer
RS485 remote communication
Equipped with 7-inch color touch screen, PLC
Customizable pump power and refrigeration power
Environmental friendly cold media can be selected
A connector for a variety of analog and type-type electrical interfaces
Continuous control with electric or pneumatic control valves
Other high requirement piping systems and electrical selection
|
