BOBAI 180 C 6kw industrial oil circulating heater reactor heater with PLC
| Price: | US$ 1300 / Sheet |
|---|---|
| Minimum Order: | 1 piece |
| Payment Terms: | 40% T/T payment in advance,60% paid before shipmen |
| Port of Export: | shanghai |
Product Details
| Model No.: | BOS-05 | Brand Name: | BOBAI |
|---|
| Certification: | CE ISO9001 |
|---|---|
| Specification: |
Condition:
New Type: Oil Heater Power Source: Hot Water / Steam Place of Origin: Shanghai, China (Mainland) Brand Name: BOBAI Dimension(L*W*H): 640mm*325mm*680mm Weight: 66kg Voltage: 3N-380V Certification: CE ISO9001 Warranty: 1year After-sales Service Provided: Free spare parts, Video technical support, Online support, Engineers available to service machinery overseas Name: BOBAI 6kw industrial oil circulating heater reactor heater with PLC Color: White or customized Cooling Method: Indirect Cooling Pump motor power: 0.37 kw Max Pump Flow: 23 L/MIN Pumping head: 28 M OEM: Yes Alert Function: Overload/overtemperature/inco |
Packaging & Delivery
| Packaging: | 1. Multiple Packing : Proved by tests of thecompression resistance , throwing . And highly secured |
|---|---|
| Delivery/Lead Time: | within 25 working days after deposit arrives. |
| Production Capacity: | 1000 pieces per month |
Product Description

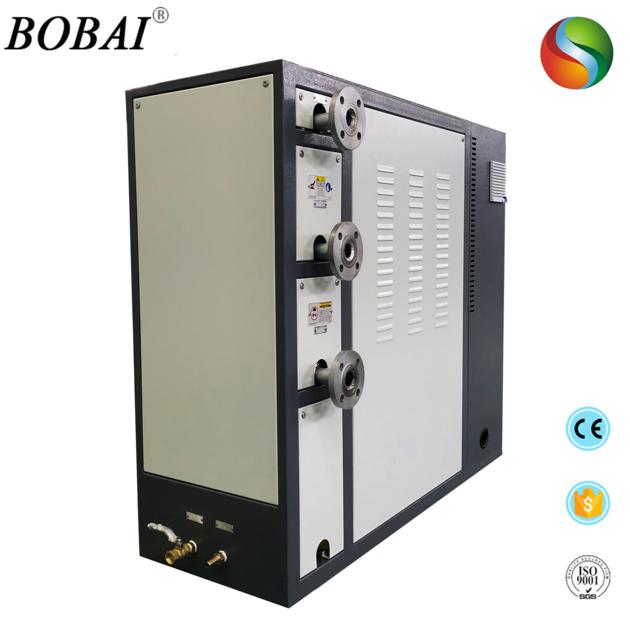

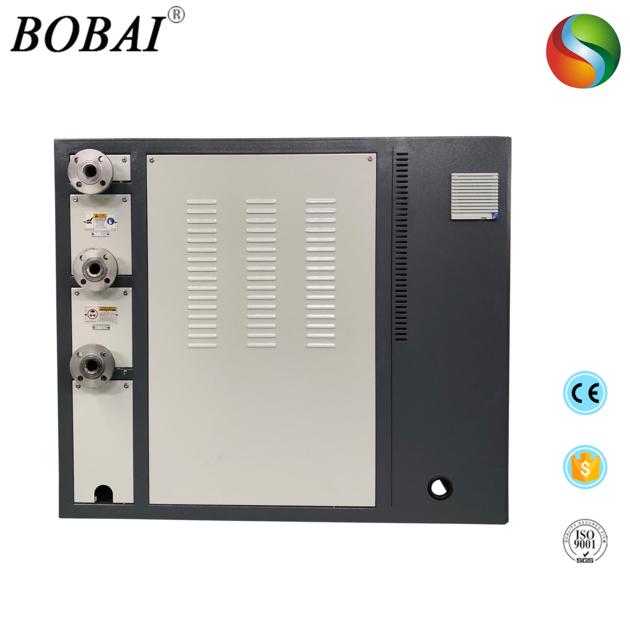

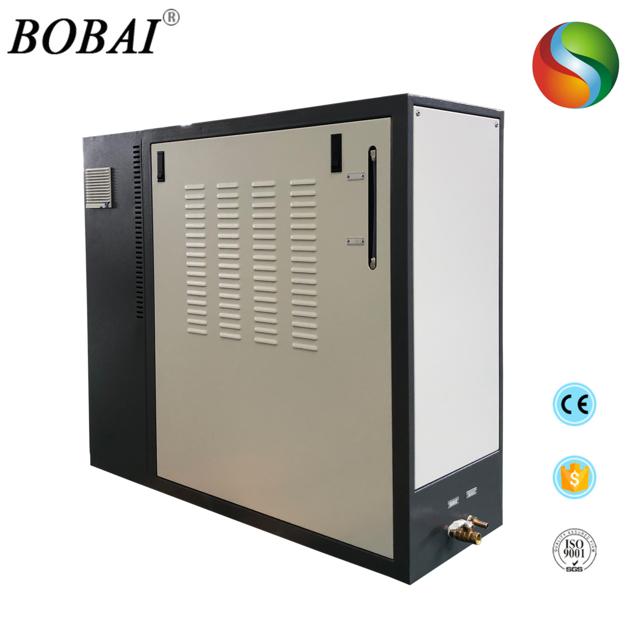

BOBAI 180 C 6kw industrial oil circulating heater reactor heater with PLC
Range of temperature control: under normal temperature (cooling water temperature related) - 180 ℃
Machinery and piping components
Automatic air-exhausting function after startup
The function of free switching of heating power
High - quality oil pumps can guarantee long - term continuous work
Piping system adopts seamless tube/non-ferrous metal material
Indirect cooling heat exchanger system
The imported heating wire in Sweden significantly increases thermal efficiency and extends service life
Filters are installed in the media circulation loop and the cooling water supply pipeline
Electrical and control components
Isolation type electrical control box
The appliance adopts the global famous brand supplier
The fault direct display is convenient for maintenance and maintenance
The unit has perfect safety protection system
Easy-to-read display, which can display system running state, set temperature, operating temperature and return medium temperature.
Optional parts/customizer
gassing and return oil function
RS485 remote communication
Instant cooling shutdown
Multi-point temperature control unit
Steam indirect heating system
Indirect cooling heat exchanger
Equipped with a 7-inch color touch screen
pump power and heating power customizable
Solid state relay, three-phase electronic regulator
Other required piping systems and electrical selection
No mechanical seal high temperature magnetic drive pump
|
