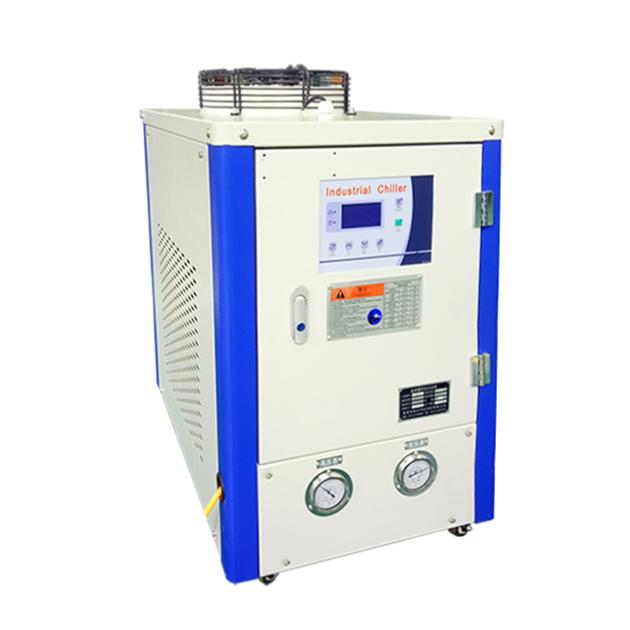

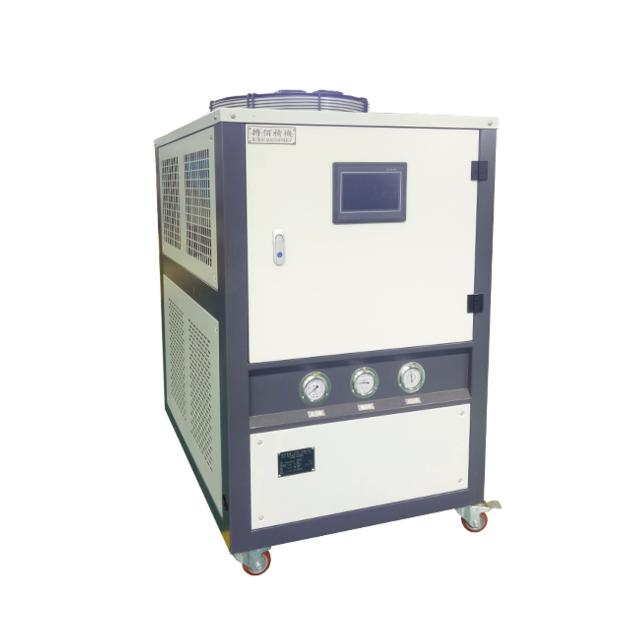

BOBAI 10kw industrial air cooled water chiller with heating pump is thermal control unit
| Price: | US$ 3000 / Sheet |
|---|---|
| Minimum Order: | 1 piece |
| Payment Terms: | 40% T/T payment in advance,60% paid before shipmen |
| Port of Export: | shanghai |
Product Details
| Model No.: | BCH-05A | Brand Name: | BOBAI |
|---|
| Certification: | CE ISO9001 |
|---|---|
| Specification: |
Condition:
New Type: Water Temperature Machine Application: Injection Moulding Machine Place of Origin: Shanghai, China (Mainland) Brand Name: BOBAI Temperature Range: 5℃-55℃ Temperature Control Accuracy: PID ¯1℃ Dimension(L*W*H): 1100MM*850MM*1300MM Weight: 200 KG Internal Piping Size: G1(DN25)INCH Voltage: 3N-380V/415V 50HZ Power(W): 14 kw Certification: ISO9001 CE After-sales Service Provided: Video technical support, Engineers available to service machinery overseas Warranty: 1 Year Name: industrial chiller with heating pump is thermal control unit Color: White or customized Cooling Method: Indirect Cooling Comperssor type: totally closed corter type Cooling Capacity: 14 kw(50HZ) Tank: 0.061M3 Pump motor power: 0.55 kw Max Pump Flow: 2.4 M3/h Alert Function: Overload/overtemperature/inco |
Packaging & Delivery
| Packaging: | 1. Multiple Packing : Proved by tests of thecompression resistance , throwing . And highly secured |
|---|---|
| Delivery/Lead Time: | within 25 working days after deposit arrives. |
| Production Capacity: | 1000 pieces per month |
Product Description
BOBAI 10kw industrial air cooled water chiller with heating pump is thermal control unit
Temperature control range: cooling water into the water temperature to 5-55℃

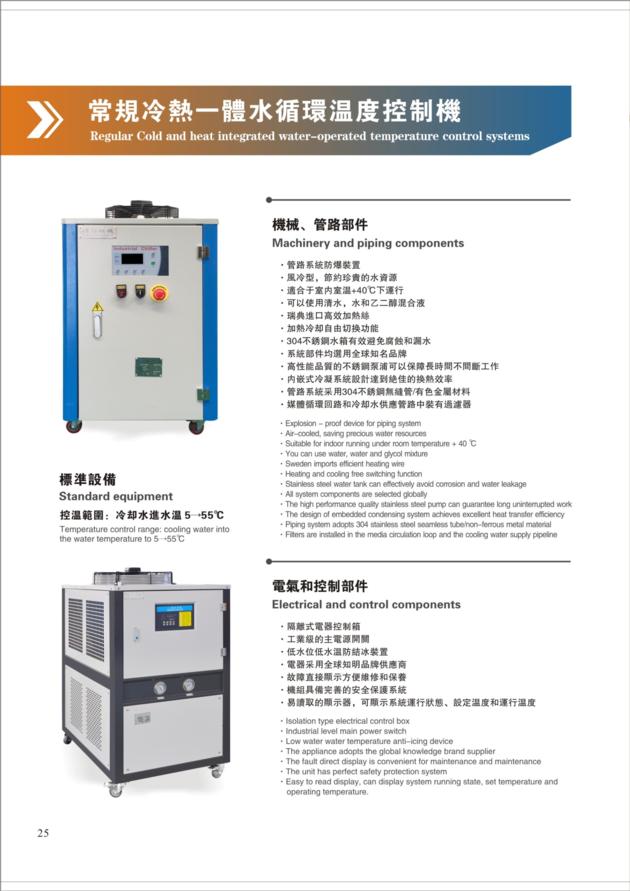

Machinery and piping components
Explosion - proof device for piping system
Air-cooled, saving precious water resources
Suitable for indoor running under room temperature + 40 ℃
You can use water, water and glycol mixture
Sweden imports efficient heating wire
Heating and cooling free switching function
Stainless steel water tank can effectively avoid corrosion and water leakage
All system components are selected globally
The high performance quality stainless steel pump can guarantee long uninterrupted work
The design of embedded condensing system achieves excellent heat transfer efficiency
Piping system adopts 304 stainless steel seamless tube/non-ferrous metal material
Filters are installed in the media circulation loop and the cooling water supply pipeline
Electrical and control components
Isolation type electrical control box
Industrial level main power switch
Low water water temperature anti-icing device
The appliance adopts the global knowledge brand supplier
The fault direct display is convenient for maintenance and maintenance
The unit has perfect safety protection system
Easy to read display, can display system running state, set temperature and operating temperature.

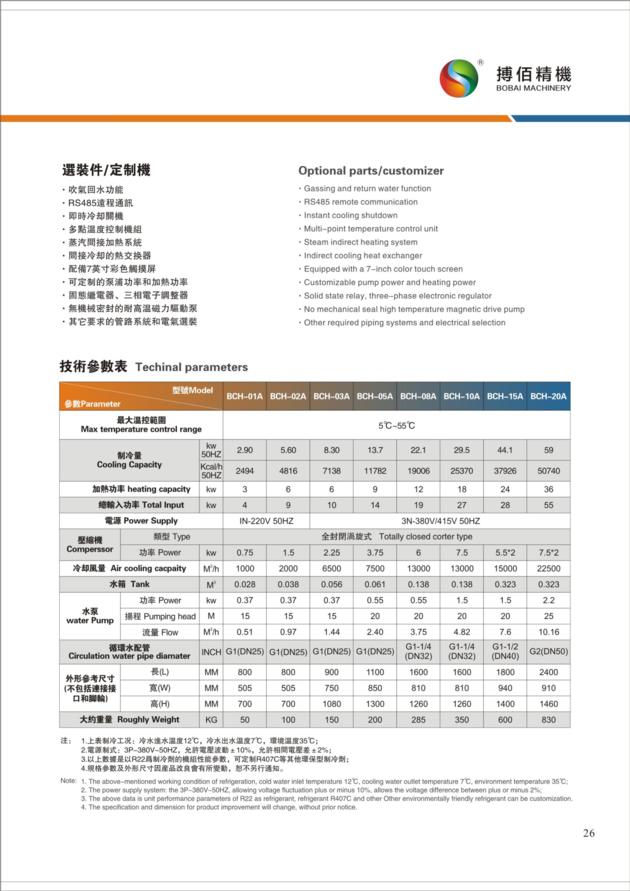

Optional parts/customizer
gassing and return water function
RS485 remote communication
Instant cooling shutdown
Multi-point temperature control unit
Steam indirect heating system
Indirect cooling heat exchanger
Equipped with a 7-inch color touch screen
Customizable pump power and heating power
Solid state relay, three-phase electronic regulator
No mechanical seal high temperature magnetic drive pump
Other required piping systems and electrical selection
|
