BL-66B Slit Lamp
| Price: | US$ 970 |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | T/T |
| Port of Export: | Shanghai |
Product Details
| Model No.: | BL-66B | Brand Name: | GODDON |
|---|
| Certification: | |
|---|---|
| Specification: |
Power Consumption: 68 VA
Gross Weight: 18kg Dimension: 690mm(L)x440mm(W)x420mm (H) |
Packaging & Delivery
| Packaging: | Carton |
|---|---|
| Delivery/Lead Time: | 1 week |
| Production Capacity: |
Product Description
GD0601008

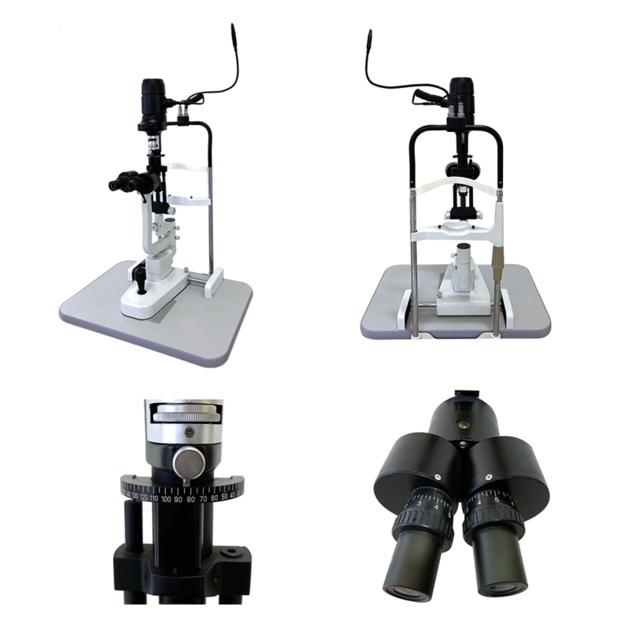

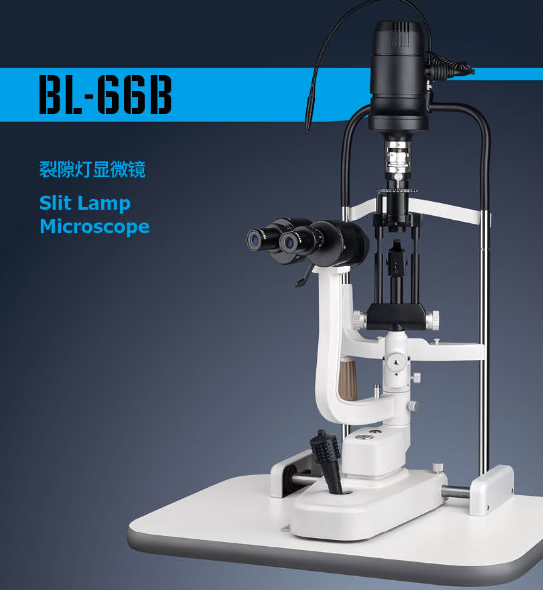

Slit Lamp
Model No.:BL-66B
FEATURES:
• Illumination Type: Haag Streit Type
• Illumination Source: Halogen Lamp
• Magnifications: 10X, 16X
• Slit Width: 0~9mm Continuous
• Slit Height: 0~8mm Continuous
• Filter: Heat Absorption ,Grey ,Red Free ,Cobalt Blue
SPECIFICATIONS:
MICROSCOPE
Microscope Type:
Converging stereoscope microscope
Magnification selection:
two steps magnifications
Eyepiece:10X
Magnification Ratio(Field of view): 10X(18mm),16X(14.5mm)
Pupillary Adjustment: 50mm ~ 82mm
Diopter Adjustment: 5D
BASE
Side Shift: 110mm
Depth shift: 90mm
Height shift: 30mm
CHIN REST
Height Shift:80mm
Fixation Target: Red LED
Illumination system
Slit Width: 0 ~ 9 mm Continuous (at 9mm , slit becomes a circle )
Slit Height: 0 ~ 8mm Continuous
Slit Angle: 0¬ ~ 180¬ adjustable
Slit Inclination: 0¬ ~ 23 ¬
Diameter of Light Spot:
Ø10mm, Ø7mm , Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm
Filter:
Heat Absorption , Grey , Red-Free , Cobalt Blue
Illumination Bulb: 12v 50w halogen lamp
POWER
Input Voltage: 110V / 220V AC
Frequency: 50 / 60 HZ
Power Consumption: 68 VA
Weight and Size
Gross Weight: 18kg
Dimension: 690mm(L)x440mm(W)x420mm (H)
|
