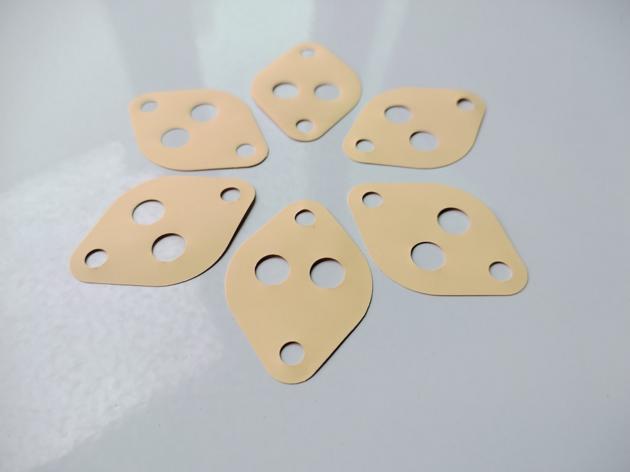

BERGQUIST PPK10 POLY-PAD K-10 SIL PAD TSP PPK1300

BERGQUIST POLY-PAD K-10 TYPICAL APPLICATIONS

● Power supplies

● Motor controls

● Power semiconductors



BERGQUIST SIL PAD TSP PPK1300 is a composite of film coated with a polyester resin.

The material offers superior thermal performance for your most critical applications with a thermal resistance of 0.2ªC-in2/W

as well as excellent dielectric strength. Polyester-based, thermally conductive insulators from Bergquist provide a complete family

of materials for silicone-sensitive applications. Poly-Pads are ideally suited for applications requiring conformal coatings or applications

where silicone contamination is a concern (telecomm and certain aerospace applications). Poly-Pads are constructed with ceramic-filled

polyester resins coating either side of a fiberglass carrier or a film carrier. The Poly-Pad family offers a complete range of performance

characteristics to match individual applications.



BERGQUIST PPK10 TYPICAL PROPERTIES

Physical Properties

Hardness, Shore A 90

Breaking Strength, ASTM D1458, KN/m 5

Elongation, ASTM D412, % 40

Flammability, UL 94 V-0
