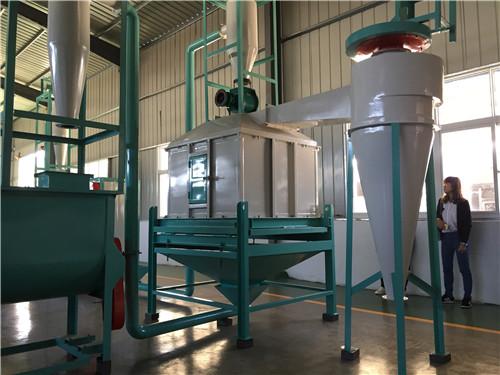

Azeus Counterflow Pellet Cooler

Counterflow Cooler abstract:

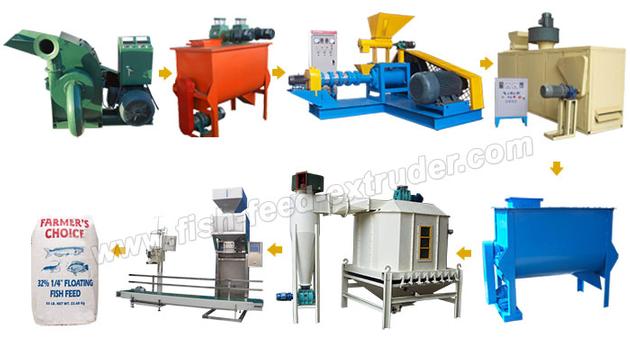

The feed pellets pressed out by the feed pellet mill are hot and moist. They can’t be crushed, screened or packed immediately. Counterflow feed pellet cooler is designed to cool or dry the feed pellets. It can decrease the temperature and moisture of the feed pellets, preparing for the following processes.

Counterflow cooler features:

1.Counter flow cooling principle is utilized to cool high-temperature and high-moisture particles, so that shock chilling phenomenon caused by direct contact of cold air and hot materials, and surface cracking of particles can be prevented.
2.The latest octagonal cooling box design is adopted so that there is no cooling dead angle.
3.Rotary feeder is adopted so that the inlet air area is large and the cooling effect is obvious.
4.Slide valve reciprocating type discharging mechanism is adopted, so that the movement is stable and reliable and the residual amount is small.
5.Low energy consumption, and easy and convenient operation.
6.The finished product temperature is less than 3℃ to 5℃ higher of the room temperature, and the machine is suitable for cooling particle materials.
7.Cooler with flap type discharging mechanism is optional, hydraulic discharging mechanism is adopted, and it usually applied to cooling puffed and expanded materials.

Counterflow cooler parameters: ( SKLN2.5 )

Cooling volume: 2.5m3

Production capacity:5t/h

Cooling time:≥6 to 10min

Material temperature after cooling:3 to 5℃ higher than room temperature

Mating power:0.75kw

Air shutter power:0.55kw
