Axial Pipe Stainless Steel Balanced Flange Bellows Compensator
| Price: | US$ 5~2000 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | EH-700H | Brand Name: | Ehase-Flex |
|---|
| Certification: | ISO |
|---|---|
| Specification: |
Specification Nominal Bore Total Length Bellows O.D. Effective Area Axial Movement Rated Working Pressure kg/cm¦ mm ins mm mm cm¦ mm EH700 EH700H 40 1 1/2 700 60 22.2 -60 10 16 50 2 700 76 34.5 +20 -80 10 16 65 2 1/2 700 92 52.5 +20 -80 10 16 80 3 700 107 71.2 +20 -80 10 16 100 4 900 130 110.5 +20 -80 10 16 125 5 900 163 168.7 +20 -80 10 16 150 6 900 190 233.9 +20 -80 10 16 200 8 900 243 389.1 +20 -80 10 16 250 10 900 295 529.2 +20 -80 10 16 300 12 900 345 829.7 +20 -80 10 16 *Specifications stated abvoe are the standard. We can design and manufacture according to customer's requirement *Flange Standard: JIS, ANSI, DIN, B.S. JB etc |
Packaging & Delivery
| Packaging: | Carton Box, Pallet, or Plywood Case |
|---|---|
| Delivery/Lead Time: | 20 Working Days |
| Production Capacity: | 7000 Piece/Pieces per Month |
Product Description
Quick Details Place of Origin: Zhejiang, China (Mainland)
Brand Name: Ehase-flex
Model Number: EH-700H
Material: Stainless Steel, SUS304/ 316/321Expansion Joint
Technics: Welded
Connection: Flange
Shape: Equal
Head Code: Round
Product name: Dual Expansion Joint
Size: DN15-DN2000
Standard: EJMA
Temperature Rating: Max 1000℃ Expansion Metal Joint
Flange Standard: JIS,ANSI,DIN,BS,JB,,,
Certificate: IS9001 Expansion Metal Joint
Rated Working Pressure: 10bar, 16bar, 25bar, 10bar, 63bar, 100bar
Application: Expansion Joint Applied in Gas, Petro, Water, Stream...
OEM/ODM: Allowed
Supply Ability
Supply Ability: 7000 Piece/Pieces per Month HS Code for Expansion Metal Joint: 7307 99
Packaging & Delivery
Packaging Details
Carton Box, Pallet, or Plywood Case
No Unacceptable Packaging Material or Bamboo Products been Used as Packing
Port Shanghai or Ningbo or Any Port in China
Product Description
Dual Pipe Expansion Joint for Large Axial Movement Compensation
Application
EH-700H Dual Expansion Joint consist of double bellows, can release the stress distributing to every point averagely. It can do the best effective to absorb the expasnion and compression of pipe line. EH-700H is designed to absorb large amounts of axial movement.
Construction
ITEM PARTS MATERIAL REMARK
1 Bellows SUS304 SUS316/321
2 Flange SS400 SUS304/316/321
3 Internal Sleeve SUS304
4 Tube Ends SS400
5 Tie Rods SS400
6 Support Flange SS400

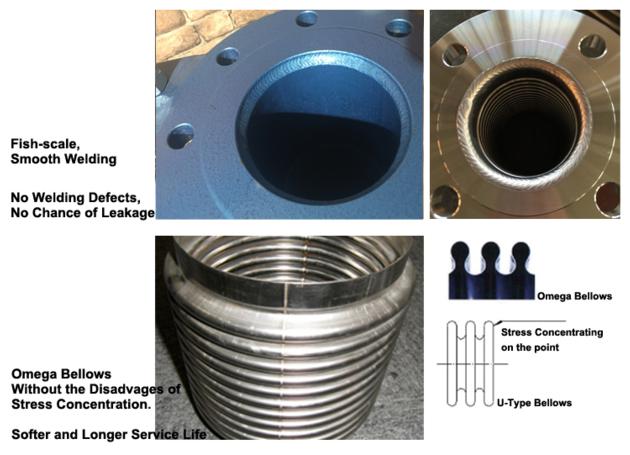

Features
1. Excellent Welding Technology, like a fish swimming in water.
2. Omega Bellows, More flexible and longer service life.

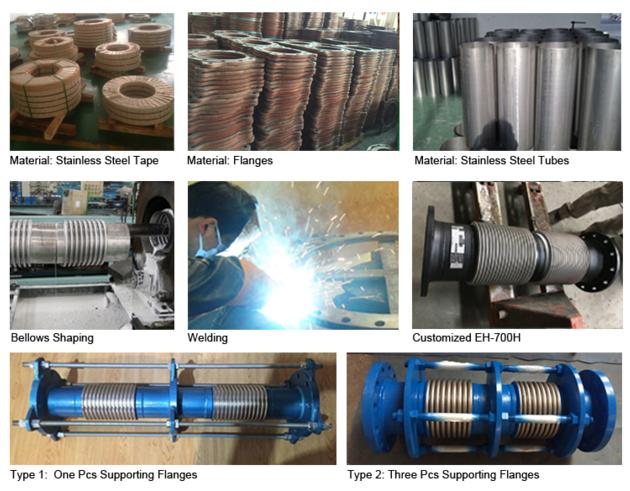

Production Process
Production Capacity
Flexible Sprinkler Hoses: 350,000pcs per Month
Flexible Joints/ Expansion Joints: 80,000pcs Annual
Gas Connector: 300,000pcs Per Month
Water Connectors: 5,000,000m Annual
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK...
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Hangzhou, Zhejiang Prov., China
|
