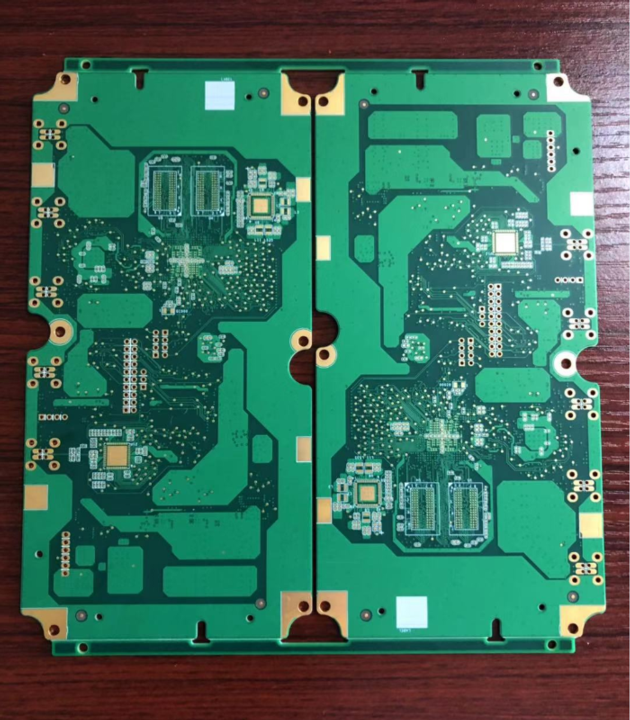

Automobile Multilayer PCB Board 16 Layers Rigid Printed Circuit Board
| Price: | US$ 20 / Piece |
|---|---|
| Minimum Order: | 1pcs |
| Payment Terms: | TT |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | Derek-R16 | Brand Name: | No |
|---|
| Certification: | |
|---|---|
| Specification: |
Min Line Width: 3mil
Min Hole Dia: 0.2mm Layers: 16L Min Line Space: 3mil Solder Mask: Green |
Packaging & Delivery
| Packaging: | Vacuum compression packaging |
|---|---|
| Delivery/Lead Time: | 7-15 days |
| Production Capacity: | 30000 square meter per month |
Product Description
Number of layer: 1-56L
Base material: CEM-3, FR4, High TG FR4, Aluminum, Rogers, Arlon, etc.
Copper weight: 0.5OZ-6OZ(18mil-210mil)
Board thickness: 0.2-7.2mm(8mil-282mil)
Board types: Rigid, Flexible, Rigid-flex, Buried & Blind via board, HDI, etc.
Silk screen: White, blue, black, etc.
Solder mask: Green, black, red, blue, yellow, white, etc.
Surface finished: OSP, HASL, ENIG, ENEPIG, Silver, Gold plating, Hard gold, Immersion Tin, Immersion Gold, Carbon ink, etc.
Test: Fly Probe test, fixture test
Performance test: 100% electricity performance test
Min hole size: 0.2mm, Laser 0.1mm
Min line width/Space: 3mil/2mil
Outline profile: Rout, V-cut, Bridge, Stamp hole
Max panel size: 1000*600mm for Single and double side, 600*600mm for multi-layer
Min panel size: 10*10mm
Hole center position tolerance: ¯0.05mm
|
SUPPLIER PROFILE
|
|||
|---|---|---|---|
| Company: | Shenzhen Derek Tech Co, Ltd | ||
| City/State | Shenzhen, Guangdong | Country: |
China
|
| Business Type: | Export - Manufacturer / Trading Company | Established: | 1998 |
| Member Since: | 2019 | Contact Person | Cindy Gan |
