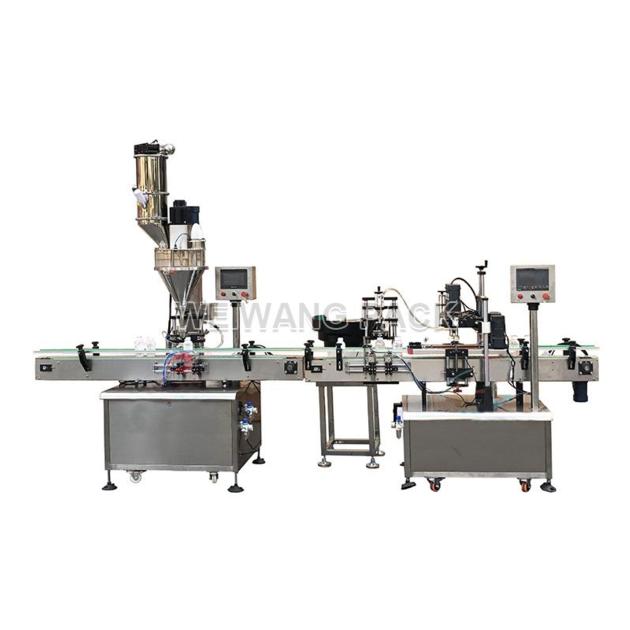

Automatic/semi-automatic powder dosing filling sealing capping line

Scope of application: suitable for all kinds of powder, powder mixture of automatic filling. Container automatic positioning, filling material automatic transmission. The inner tube powder packing and filling line can fill powder into bottles/bottles. Such as protein powder, milk powder, chicken essence, chicken essence, monosodium glutamate, drugs, food additives and so on.
Feeding bottle rotating table

WEIWANG PACK Powder filling machine/rotary automatic powder filling line

Feeding caps system

Capping machine

Labeling machine
Automatic filling bottle/can/bottle, filling the product into the bottle/can/bottle mouth.
https://*/product-list-filling-machine.html
semi-automatic filling machine supplier: WEIWANG PACK
Auger filling line parameter
Type WW-30L WW-50L WW-100L
Hopper 30L 50L 100L
Packing weight 1-500g 10-5000g 5000-25000g
Packing accuracy <100g ¯2%;
100-500g ¯1% <100g, ¯2%;
100-500g, ¯1%
<5000g, ¯0.5% ¯0.5%
Filling speed 40-120time/min 40-120 time/min 5-10time/min
Power supply 3P AC 208-415V 50/60HZ 3P AC 208-415V 50/60HZ 3P AC 208-415V 50/60HZ
Total powe 1.7kw 1.9kw 2.75kw
Total weight 130kg 180kg 200kg
Overall dimension 860 × 460 × 880mm 1060 × 600 × 1100mm 1100 × 650 × 1200mm

Capping machine parameter
Speed 25-50bottle/min
Power 2kw, 220v, 50-60hz
Air pressure 0.7Mpa, 0.2m3/min
Cap cover size Diameter: 20-50mm; 50-85mm
Bottle/can/jar size Diameter: 30-110mm; height: 50-350mm
Weight 150kg
Size 1500 * 500 * 1600mm
Process: Bottling machine → automatic powder feeding machine/screw conveyor → automatic rotation/screw powder filling machine → automatic rotating capping machine → automatic labeling machine → inkjet printer → charging platform.
