Automatic Soil Compactor

Automatic Soil Compactor

PRODUCT CODE

PRS-ZE0620 Automatic Soil Compactor, 220-240 V 50 Hz (60 Hz version is available upon request)

PRS-ZE0620/110 Automatic Soil Compactor, 110 V 60 Hz

PRS-ZE0622 ASTM/EN/BS Rammer for PRZE0620

PRS-ZE0624 ASTM Rammer Face Ø 50.8 mm for PRS-ZE0620

PRS-ZE0625 EN/BS Rammer Face Ø 50 mm for PRS-ZE0620

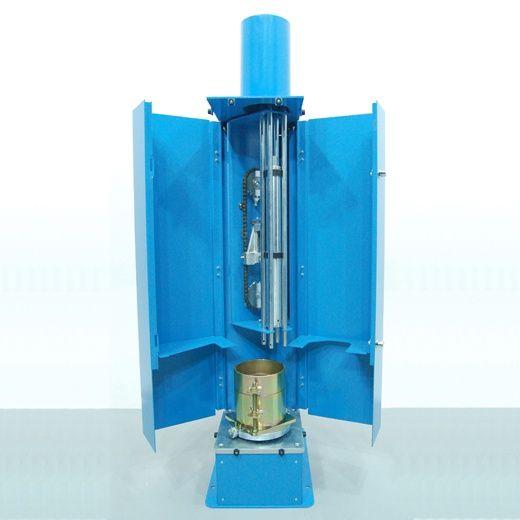

PRS-ZE0620 Automatic Soil Compactor is designed to compact specimens automatically and uniformly, assuring conformity with the above listed international standards.

The principle of the design is to allow the hammer to drop the required height into the soil in the mould which rotates circularly to distribute the blows uniformly over the surface of the specimen in the mould.

The drop height is adjustable to 300 mm, 305 mm, 450 mm and 457 mm. The rammer is circular faced and interchangeable to 50 mm or 50.8 mm diameter.

Rammer weight is adjustable to 2.5 kg or 4.5 kg according to reference standard. When compacting 100 mm diameter specimens the unit operates on a single radius and when compacting 150 mm diameter specimens the unit operates on iner and outer radius to obtain even compaction.

The number of blows per layer can be set at the beginning of the compaction process by the digital counter according to the standard preferred by user.

This automatic blow pattern ensures effective and equal compaction for each layer of soil by rotating the base table, so the mould, in equal steps and travelling the rammer across the mould.

User defined blow number and in-out distribution is also available.

Compactor is equipped with programmable digital counter which allows the machine;

• To select reference standard ( number of blows and mould size ) by the operator at the beginning of the test.

• To set desired compaction cycle ( number of blows and count of the number of inner and outer drops) by user.

Rammers

EN / BS Circular faced, 50 mm dia.
Adjustable to 2.5 kg or 4.54 kg weight

ASTM Circular faces, 50.8 mm dia.
Adjustable to 2.5 kg or 4.54 kg weight

Drop Height

BS Adjustable to 300 mm or 450 mm
ASTM / AASHTO / EN Adjustable to 305 mm or 457 mm

The Automatic Soil Compactor is supplied complete with;

• ASTM/EN/BS Rammer

• ASTM Rammer Face, Ø 50.8 mm.

• EN/BS Rammer Face, Ø 50 mm.

Dimensions 650x550x1550 mm

Weight (approx.) 150 kg

Power 370 W
