Automatic Paper Embossing Machine MODEL YW-E -iseef.com
| Price: | US$ 10 / Set |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | T/T OR L/C |
| Port of Export: | NINGBO OR SHANGHAI, CHINA |
Product Details
| Model No.: | YW-E | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: |
Model: YW-720E / YW-920E / YW-1150E / YW-1300E
Max. embossing speed: 80m/min Max. embossing width: 680mm / 880mm / 1000mm / 1180mm Paper range: >160gsm Operation pressure: 2-10Mpa Main motor pressure: 14kw / 15kw / 16kw / 18kw Vacuum pressure: 0.06Mpa Air source pressure: 0.8-1.0Mpa Overall dimension(L*W*H): 4800*1500*1800mm / 4800*1700*1800mm / 4800*1800*1800mm / 4800*2000*1800mm Machine weight: 2800kgs / 3500kgs / 4200kgs / 5000kgs |
Packaging & Delivery
| Packaging: | Standard export package |
|---|---|
| Delivery/Lead Time: | 25-50 DAYS |
| Production Capacity: |
Product Description
Product description:

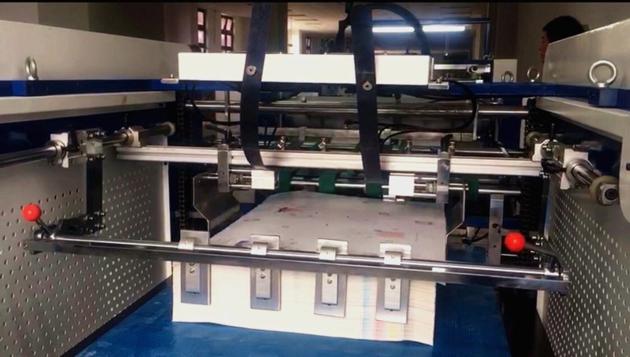

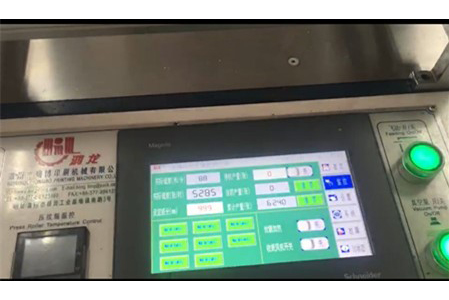

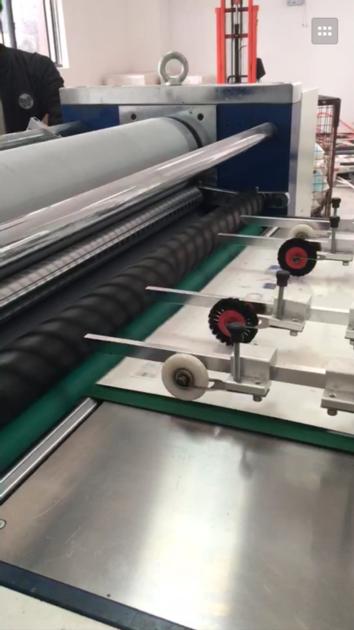

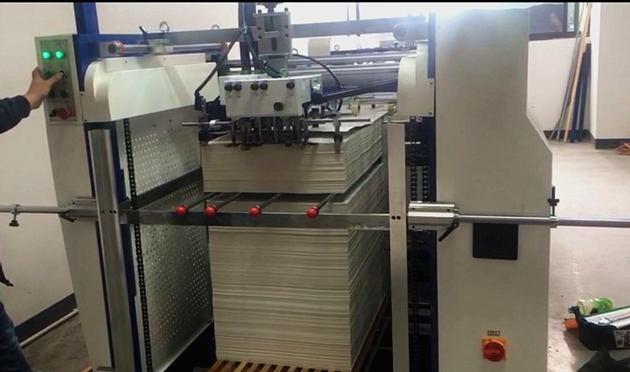

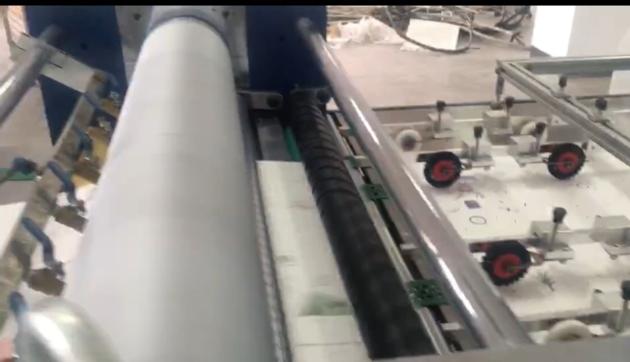

The automatic paper embossing machine with the functions: automatic feeder & auto collecting picker. Full automatic control in processing, adopt frequency governor, automatic hydraulic system and pneumatic blade, it is characterized by controllable speed, double-sheet control, automatic counting, etc. Its average can range from 3000~5000pc/h. It is applied to embossing the sheet surfaces of batches like packing products, playing cards, gift cards, golden and silver card paper, etc.
Optional collector:
-Auto vibrating collector
-Manual collecting table
|
