Anesthesia Multi-Gas Monitors

Measure and monitor the concentration of CO2, functional oxygen saturation SpO2, Pulse and N2O concentrations, as well as the following volatile anesthetics: Halothane, Enflurane, , Isoflurane, Sevoflurane and Desflurane.

Types of Anesthetic Gas Monitors
Handheld Anesthesia Multi-gas Monitors-AneSure™ H
Based on the infrared analysis technology of Kingst for more than 20 years, AneSure-H is a safe and reliable anesthesia gas monitor.

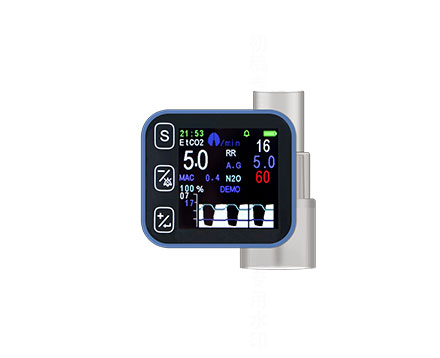

Portable Anesthesia Multi-gas Monitors-AneSure™ Mini
AneSure-Mini can simultaneously measure anesthetic gas, ETCO2 and respiratory rate. Suitable for Emergency, Pre-hospital and Intra-hospital transport, Operating room as well as ICU.

Features of anesthetic gas analyzer monitor
1.Portable and lightweight mainstream multi-gas monitor, suitable for emergency, pre-hospital and intra-hospital transfer, operating room, ICU, enhancing the safety of anesthesia

2. Alarm for data overrun and suffocation. Quick warm-up with the first value displayed in 5 seconds, and accurate readings displayed in 15 seconds. 24-hour trend graphs, not lost when power off

3. Turn on the unit, and it is ready to use instantly with no need to calibrate.

4.Automatic atmospheric pressure compensation; Economical adapters reduce usage costs.

5.Data output via USB and Bluetooth (optional).

6.Firm and durable, suitable for various medical environments (field, helicopter, etc.)

Specifications of Anesthesia Multi-gas Analyzer Isoflurane Monitor
Temperature 5℃~50℃
Relative humidity 10%~90%（Non-condensing）
Atmospheric pressure 55~115kpa
Co2 Measuring range 0-150mmHg
Accuracy 0~40mmHg, inaccuracy≤¯ 2mmHg；
41~70mmHg, inaccuracy≤¯5% of Reading；
70~100mmHg, inaccuracy≤¯ 8% of Reading；
101~150mmHg, inaccuracy≤¯10% of Reading；
N₂O Measuring range 0~100%
Inaccuracy ¯（2vol%+ 2% of Reading）
HAL, ENF, ISO Measuring range 0-12%
Inaccuracy For 0~8% ¯（0,2 vol% + 5% of Reading）
For 8~12% unspecified
SEV Measuring range 0~15%
Inaccuracy 0~10%，¯（0,2 vol%+5% of reading）
10~15% unspecified
DES Measuring range 0~25%；
Inaccuracy 0~18%，¯（0,2 vol%+5% of reading）
18~25% unspecified
Respiration Rate Range 2~150 t/min
