Alignment Four Post Lift

409A Alignment Four Post Lift

PEAK's Series of 4 Post Lift
Model Lifting Capacity
409 4.0T (9,000 lbs)
409A 4.0T (9,000 lbs)
412 5.5T (12,000 lbs)
412A 5.5T (12,000 lbs)
414 6.5T (14,000 lbs)
414A 6.5T (14,000 lbs)
* "A" with alignment function.


Feature
• Electric-air control operation system.
• Mechanical self-lock and air-drived safety release.
• Electrical hydraulic power system, cable-drived.
• Non-skid diamond platform.
• Adjustable platform and adjustable safety lock ladders.

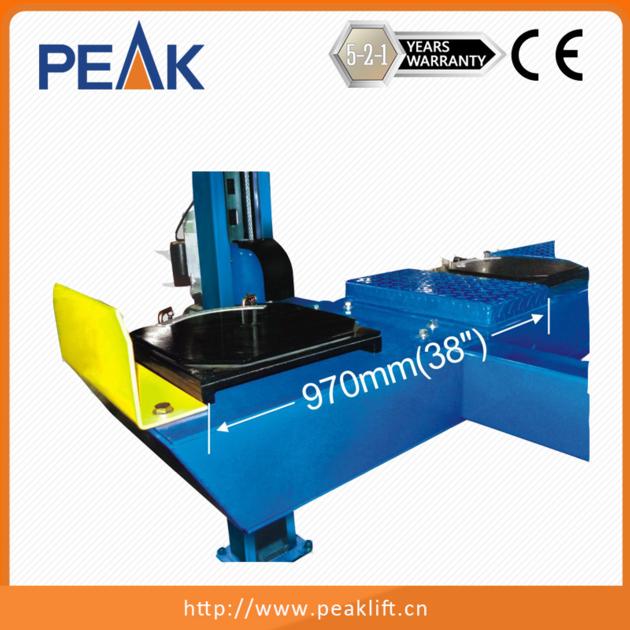

• Two adjustable turntable positions to fit the different wheel base.
• Dual safety device: In case the primary safety locks are out of operation,the lift would also be locked automatically by a second safety device.

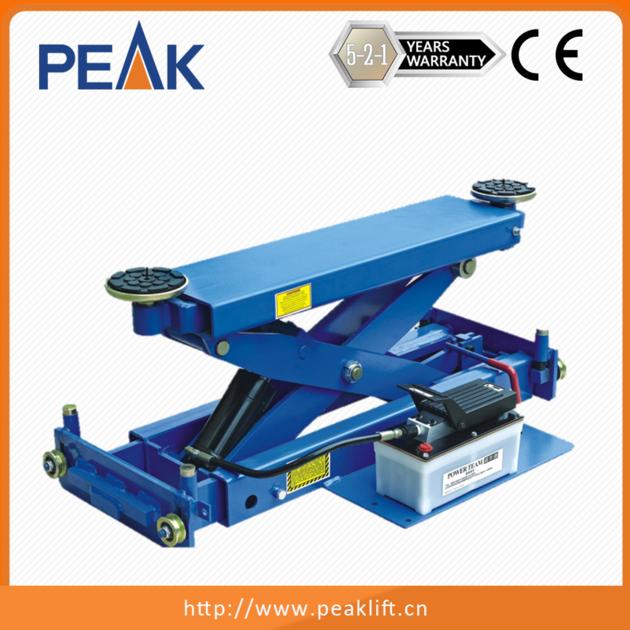

• Optional Jack: J6H (hand pump), J6A (SPX Air pump) and include 1.5", 2.5" extension adapters.
• Long warranty:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
