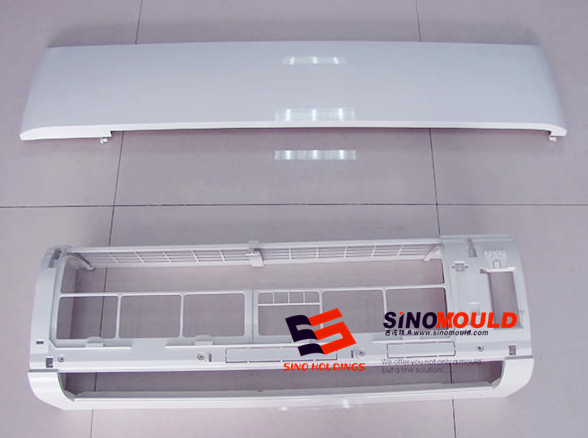

Air Conditioner Top Cover Mold

Price:	US$ 5
Minimum Order:	1
Payment Terms:	TT/LC
Port of Export:	Ningbo

Product Details

Model No.:	AC Top Cover Mold	Brand Name:	SINO MOULD

Certification:	ISO9001-2008
Specification:	AC Top Cover Mold For IDU 1.5 and 1 AC we are using DIN 1.2738 in cavity and 718 in core part as cavity part needs high polishing for glossy appearance of the outer parts of AC like Air wings,Grill,Top cover. P20 also can be used in core parts but we recommended to use 718H for better strength of these molds because these are most important and large part of the AC. For Blower segment we are using tempered H13 because plastic used for blower is abrasive in nature so we need hardened stainless steel to prevent from wear of the core and cavity. For other all the parts we are using 718H in cavity part and p20 in the core parts as those parts are small and don’t need high polishing. We even can use p20 in both core and cavity but we recommend to use 718H in cavity and p20 in core for better mold quality .

Certification:

ISO9001-2008

Specification:

AC Top Cover Mold

For IDU 1.5 and 1 AC we are using DIN 1.2738 in cavity and 718 in core part as cavity part needs high polishing for glossy appearance of the outer parts of AC like Air wings,Grill,Top cover. P20 also can be used in core parts but we recommended to use 718H for better strength of these molds because these are most important and large part of the AC.
For Blower segment we are using tempered H13 because plastic used for blower is abrasive in nature so we need hardened stainless steel to prevent from wear of the core and cavity.
For other all the parts we are using 718H in cavity part and p20 in the core parts as those parts are small and don’t need high polishing. We even can use p20 in both core and cavity but we recommend to use 718H in cavity and p20 in core for better mold quality .

Packaging & Delivery

Packaging:	Water Proof Package For Sea Shipment
Delivery/Lead Time:	75 days
Production Capacity:	1500/year

Product Description

Sino Mould is the leading air conditioner molds maker in China, have made air conditioner molds for 12000btu,18000btu,24000 btu wall mounted air conditioner and 430x*430 and 600x600 business air conditioners. is the long term partner foris the molds supplier for Siemens in Spain,Hitachi in Japan,and Hisence,Galanz in China and other foreign local brands like Zamil, Unitech...

Air conditioner molds,included panel cover, grille,base, blade, swing louvers, drain, electrical boxes, blower fan. totally need 28-30 set of plastic molds.

Air conditioner Mold steel can be NAK80,DIN1.2738,718H to apply to customer's different product requirements.
Shininess is NAK80 >DIN1.2738>718H,Steel Hardness is NAK80>DIN1.2738>718H.

Runner can be cold runner, hotrunner to submarine gate, hot runner point gate, hot runner valve gate. Timing controlling valve gate are applied to control injection melting line.

Suitable Injection Machine: DKM 1150 TON Servo Power,DKM 850, Min DAKUMAR 268 TON Servo Power Injection Machine

Ejection is Machanical+hydraulic cylinder.

Moldflow analysis for designing the optimal air venting system, injection and cooling system.

If you are the air conditioner maker, welcome to contact us for air conditioner molds or air conditioner production line, we will offe you a tailor-made solution as per your requirements.
