ASTM A234 WPB 90 Degree Elbow Pipe Fittings in Long Radius and Short Radius

ASTM A234 WPB 90 Degree Elbow Pipe Fittings in Long Radius and Short Radius

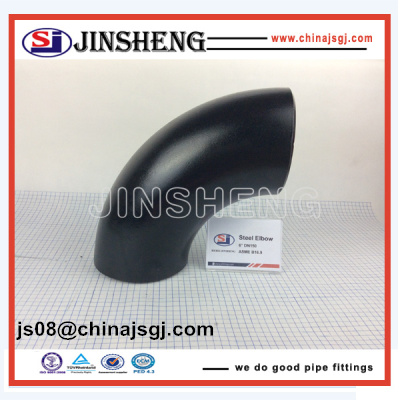

Product Name: 90 Degree Elbow Pipe Fittings

Product Details:
90 Degree elbow is used between the pipe to change the direction of the flow by 90 degree. 90 degree elbow are most in long radius (LR) form and short radius (SR) form. Long radius refers that centreline radius is 1.5 times than nominal diameter of pipe. Short radius refers that centreline radius is same as nominal diameter of pipe.


Material of pipe elbow mainly includes the followings:
Carbon steel ASTM A234 WPB

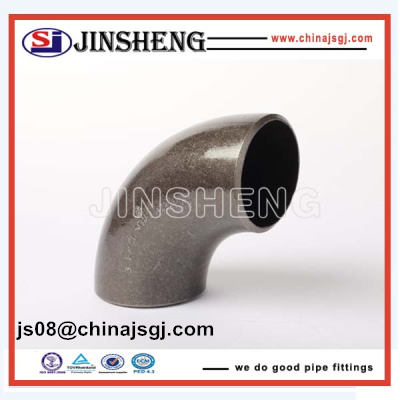

Stainless steel A403 WP304/304L/316/316L/317/317L/321,
Alloy Steel P22/P91/P5/P11/P9/P12T91/T9/T5

Available pipe size ranges from 1/2” to 24” in seamless, 4” to 72” in seam-welded.

Angle of pipe elbow is 90 degree.

Radius type of 90 degree pipe elbow includes long radius elbow (1.5D) and short radius elbow (1D)

Pipe elbow is widely manufactured in accordance with standard ASME/ANSI B16.9.

Wall thickness of pipe elbow mainly includes SCH20, SCH40, SCH80, SCH5-XXS

Surface treatment of pipe elbow mainly includes sand blasting,anti-rust light oil,black matte painting,electric galvanized,hot dipped galvanized.

Pipe elbows are traditionally packed in Loose package,plywood case,plywood pallet , plastic cap or Iron protector as customers’ requirements.

How to find me?
If interest,pls feel free to contact Ella via js08(AT)chinajsgj(DOT)com.

Hebei Jinsheng Pipe Fitting Manufacturing Co.,Ltd.
*
