API Thread Drill Pipe Tool Joint
| Price: | US$ 100 / Pair |
|---|---|
| Minimum Order: | 10 sets |
| Payment Terms: | T/T |
| Port of Export: | Tianjin, Qingdao, Shanghai, etc. |
Product Details
| Model No.: | NC, REG, FH, IF, etc. size from 2-3/8" to 6-5/8" | Brand Name: |
|---|
| Certification: | API 7-1 |
|---|---|
| Specification: |
1.OD:57mm-168mm
2.Material:35CrMo/40Cr/4137H 3.Length: N:235mm M:195mm 4.Apply to connection 50mm drill rod Well Drilling,Geological drilling 5.Tool Joint: NC26, NC31, NC38, NC40, NC46, NC50 |
Packaging & Delivery
| Packaging: | Wooden Box / Pallet |
|---|---|
| Delivery/Lead Time: | 20 |
| Production Capacity: | 6000 pairs / month |
Product Description

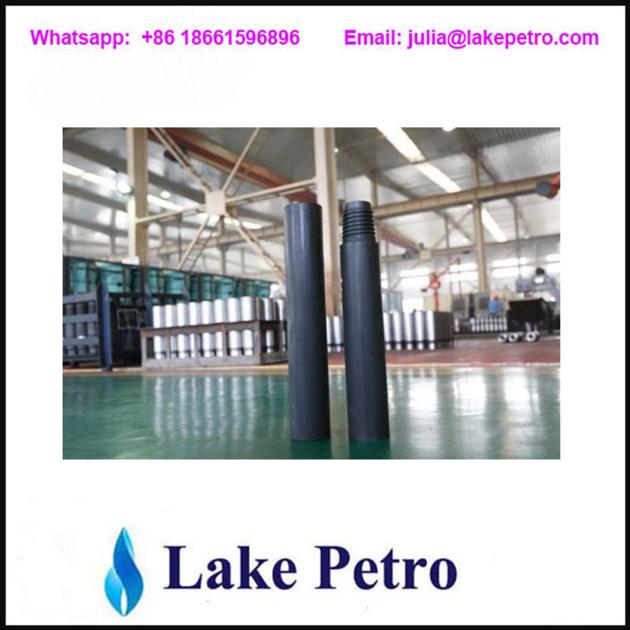

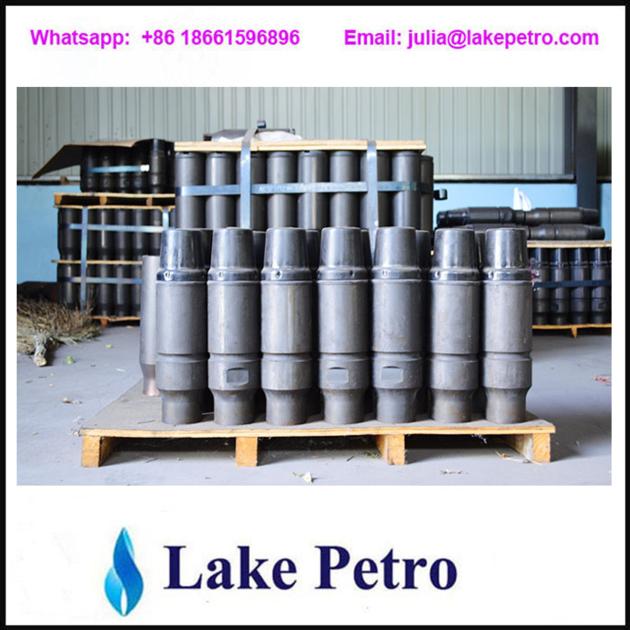

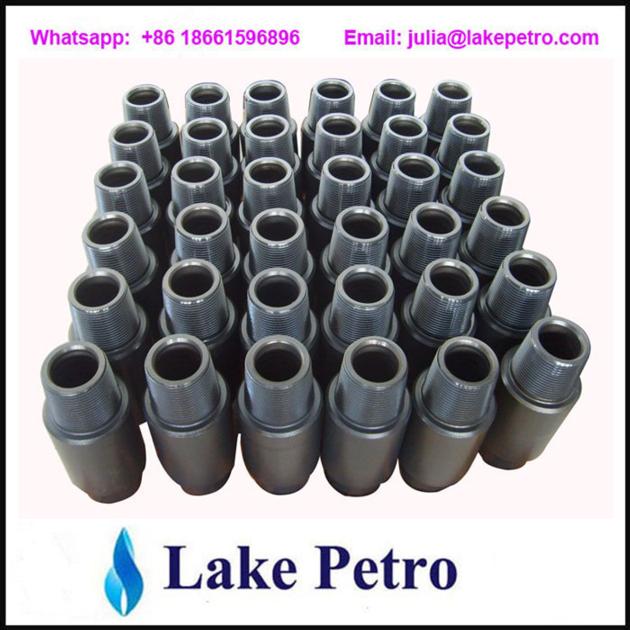

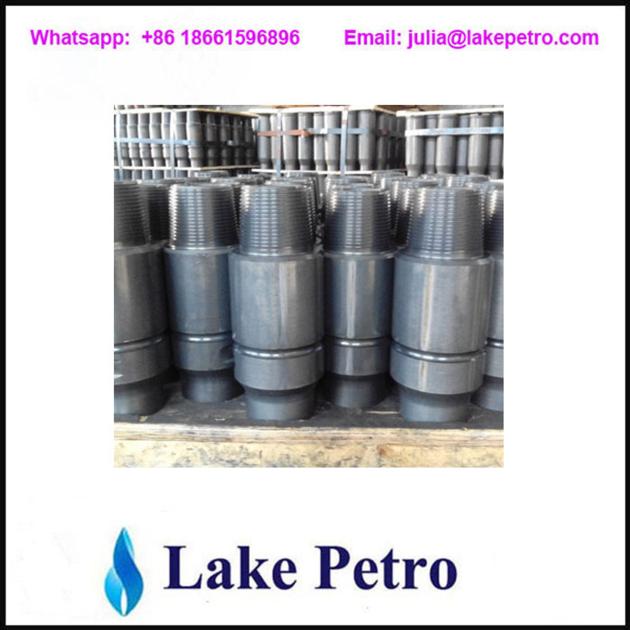

Tool joints are short sections of pipe that are attached to the tubing portion of drill pipe by means of using a flash welding process. The internally threaded tool joint is called a “box”, while the externally threaded tool joint is the “pin”.
API 7-1 Oilfield Drill Pipe Tool Joint
• Minimum Yield Strength = 120,000 psi
• Minimum Tensile Strength = 140,000 psi
Because tool joints are added to drillpipe, the weight of given to pipe in many tables is the “nominal weight”. The exact weight will require adding the weight of the tool joints to the tubing portion. Since two joints do not weigh the same, it is difficult to determine the weight of a joint of drillpipe and so an “approximate weight” is used in many calculations.
API 7-1 Oilfield Drill Pipe Tool JointAPI 7-1 Oilfield Drill Pipe Tool Joint
The tool joints on drill pipe may contain internal and/or external upsets. An upset is a decrease in the ID and/or an increase in the OD of the pipe which is used to strengthen the weld between the pipe and the tool joint. It is important to note that under tension, the tool joint is stronger than the tubular
|
