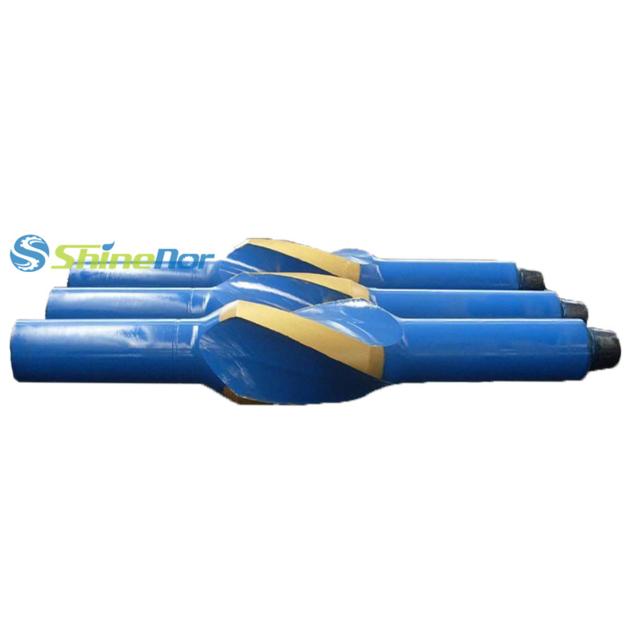

API Standard Oilfield Integral Spiral Blade Drilling Stabilizer/Near Bit and Drill String Type Stabi

Integral blade stabilizer is an important tool in the drilling engineering to control the well deviation.It can stabilize the drilling tools in the drilling process of oil ,gas and geological exploration. It can increase the bit life,drilling speed and well bore quality. There are two kinds of integral stabilizers，spiral integral blade stabilizer and straight integral blade stabilizer.
Hard facing types of stabilizers
HF-1000
Crushed tungsten carbide held in a nickel bronze matrix. The 3mm grain size ensures greater concentration of carbide which is ideal for soft formation drilling.
HF-2000
Trapezoidal tungsten carbide inserts held in a sintered carbide nickel bronze matrix. This will give a greater depth of carbide coverage – ideal for high deviation drilling in abrasive formations.
HF-3000
Tungsten carbide inserts set in a powder spray deposit ideal for abrasive formations. 97% bonding guaranteed, certified by ultrasonic report. Recommended for non-magnetic stabilizers.

HF-4000
Tungsten carbide inserts (button type). The inserts have been developed to allow cold insertion and maintain close fit. A greater concentration of inserts on the bottom third of the blade and leading edge will increase surface contact to reduce wear in highly abrasive formations.
HF-5000
This oxy-acetylene process applies tough molten carbide particles of varying sizes held in a nickel chrome matrix which provides excellent bonding properties and greater surface wear characteristics are achieved. Surface hardness levels over 40 HRC. Ideal for GEO-THERMAL applications over 350®.
Specification

Model Hole size OD mm(inch) Fishing Neck OD mm(inch) Upper Conn. Lower Conn. ID mm(inch) Fishing Neck Length mm(inch) Blade Axial Width mm(inch) Blade Length mm(inch) Remark
LX98 98.4(3 7/8) 79.4(3 1/8) NC23 NC23 31.8(1 1/4) 240(9 29/64) 34(1 1/32) 240(9 29/64) String
LX149 149.2(5 7/8) 120.7(4 3/4) NC38 NC38 50.8(2) 600(23 5/8) 50(1 31/32) 350(13 25/32) String
LX149-NB 3 1/2REG Near Bit
LX216 215.9(8 1/2) 165.1(6 1/2) NC50 NC50 57.2(2 1/4) 600(23 5/8) 60(2 3/8) 406(16) String
LX216-NB 4 1/2REG Near Bit
LX311 311.15(12 1/4) 203.2(8) 6 5/8REG 6 5/8REG 71.4
(2 13/16) 700(27 9/16) 75(2 61/64) 406(16) String
LX311-NB Near Bit
LX444.5 444.5(17 1/2) 228.6(9) 7 5/8REG 7 5/8REG 76.2(3) 700(27 9/16) 121(4 3/4) 460(18 7/64) String
LX444.5-NB Near Bit
LX660 660.4(26) 241.3(9 1/2) 7 5/8REG 7 5/8REG 76.2(3) 762(30) 121(4 3/4) 508(20) String
KX660-NB Near Bit
LX914 914.4(36) 241.3(9 1/2) 7 5/8REG 7 5/8REG 76.2(3) 889(35) 121(4 3/4) 610(24) String
LX914-NB Near Bit
