API Drilling motor,downhole motor,mud motor,PDM motor with spare parts manufacturer from China

Orchid Energy drilling motors have established a reputation for performance, reliability and excellent service. We provide a versatile range size and types of motors for directional, horizontal, straight drilling, performance drilling, coil tubing and HDD drilling conditions.

Drilling motor is a positive displacement motor(PDM). The high drilling fluid enters into the motor converting high fluid power to mechanical energy and the rotor drives the shaft and bit rotating. We can produce drilling motors for hole size from 1 7/8" to 26". Motor size are as of 1 11/16"(43mm), 2 1/8"(54mm), 2 7/8"(73mm),3 1/2"(89mm), 3 3/4"(95mm), 4 3/4"(120mm), 5"(127mm),5 7/8"(150mm), 6 1/4"(159mm), 6 1/2"(165mm), 6 3/4"(172mm), 7"(178mm),7 1/4"(185mm), 7 3/4"(197mm), 8"(203mm), 8 1/2"(216mm), 9 5/8"(244mm) 11 1/4"(286mm). We also can design and manufacture according to customer special requirements.


Benefits & Features:
All drilling Motors are equipped with a rotor catch sub;
Drilling Motors can be equipped with float top sub or dump sub or special catch sub;
Drilling motor can be used in WBM(water based mud)&OBM(oil based mud);
Equipped with 0-3 degree Adjustable Housings;
Screw on Stabilizer available or fixed Stabilizer or blank stabilizer;

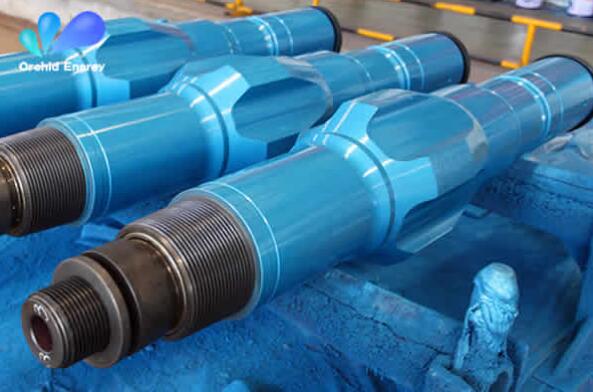

Stronger bearing mandrel for use with high torque power sections;
