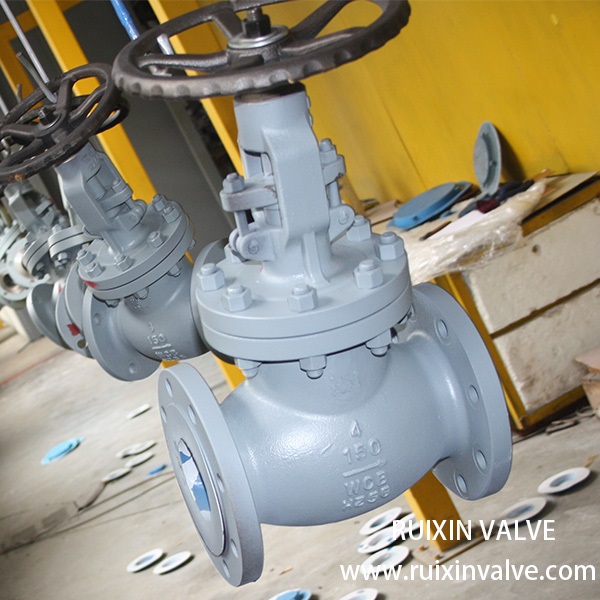

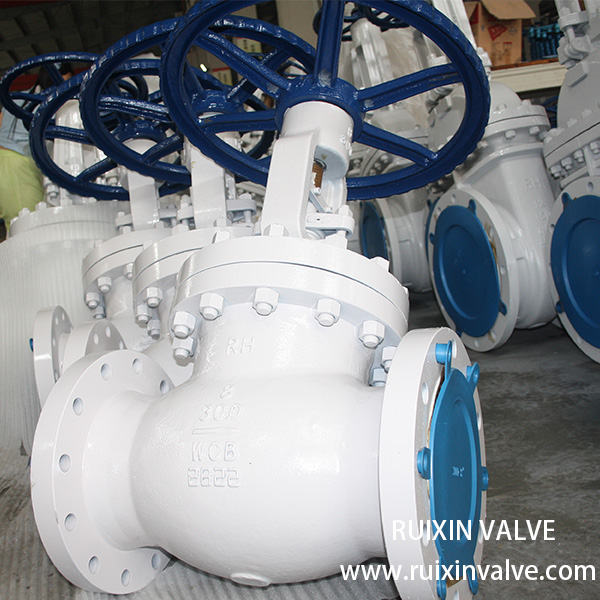

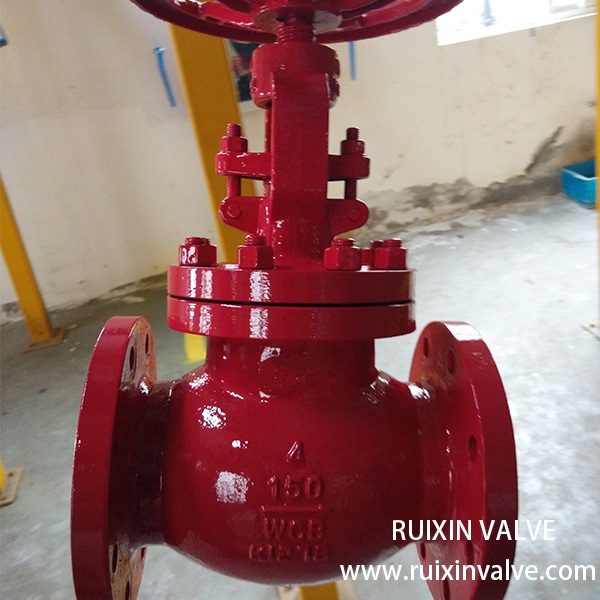

API/BS Cast Steel WCB Globe Valve Flange End RF RTJ
| Price: | US$ 10 / Piece |
|---|---|
| Minimum Order: | 1pc |
| Payment Terms: | 30% in advance by T/T,70% before shipment |
| Port of Export: | Ningbo |
Product Details
| Model No.: | RXV | Brand Name: | RXVAL |
|---|
| Certification: | CE,ISO,API |
|---|---|
| Specification: |
150LB/300LB/600LB/900LB/1500LB/2500LB
Stainless Steel CF8/CF8M,Carbon Steel,Cast Steel，WCB,Forged Steel China Manufacturer, Factory, wholesale,Distributors,Supplier |
Packaging & Delivery
| Packaging: | Plywood |
|---|---|
| Delivery/Lead Time: | 20 days |
| Production Capacity: | Large |
Product Description
Size
2"-48"
Pressure Rating
150LB - 2500 LB
Standard Connections
Flanged Ends (RF,RTJ)
Material
Body/Bonnet: A216WCB,WCC,A217 WC6,WC9,C5,C12,A352 LCB,LCC,A351 CF8, CF8M, CF3,CF3M,CF8C,CN7M, ETC
Seat: A105+13CR / A105+STELLITE 6,ETC
Stem: A182 F6(13CR) / A182 F304/F316
Trim: NO.1 ‐ NO.14
Features And Benefits
Full Bore
Rising Stem
Bolted Bonnet OS&Y, Or Pressure Seal Bonnet
Flexible Wedge Or Solid Wedge
Threaded Or Weld Seat Ring
Operated By Handwheel,Gear,Electric, Pneumatic Actuator
Standard
Design & Manufacturer: BS1873
Face To Face :ANSI B16.10
End Flange Dimension : 2”-24” to ANSI B16.5 / 26”-48” to MSS SP-44 /API 605
BW ENDS to ANSI B16.25
Checking & Test : API 598
Pressure-Temperature: ASME B16.34
NACE MR-01-75
Why Choose Us:
1.Quality Guarantee
We have strict quality control system,Include raw material inspection,Inspect the process of component machine - Assembly Inspection - Complete machine performance testing and painting .
The product is tested 100% qualified before shipment
2.Delivery time
We are manufacturer and We have enough production capacity to delivery goods asap.
3.After-Sale Service
We offer 18 month guarantee period for all valves that we produce .
|
