API 7-1 Releasing and Circulating Overshots with Spiral/Basket Grapple for Sucker Rod
| Price: | US$ 199 / Unit |
|---|---|
| Minimum Order: | 1pieece |
| Payment Terms: | TT30%,balance before shipment |
| Port of Export: | Tianjin |
Product Details
| Model No.: | Brand Name: |
|---|
| Certification: | API7-1 |
|---|---|
| Specification: |
The Releasing and Circulating Overshot is the fishing tool which is simple, high strength and high reliability and fishing from outside of fishing objects. The internal catch mechanisms have two basic types:a basket grapple and a spiral grapple.According to different uses, it may be equipped with accessories, such as extension sub,wall hook, enlarged guide, etc. When ordering or requesting quotation, please specify: 1Type of overshot: 2O.D. of fish to be caught; 3、Size and type of top connection; 4、If it is not standard size,please specify clearly.etc Specification |
Packaging & Delivery
| Packaging: | box |
|---|---|
| Delivery/Lead Time: | 20days |
| Production Capacity: |
Product Description
The Releasing and Circulating Overshot is the fishing tool which is simple, high strength and high reliability and fishing from outside of fishing objects. The internal catch mechanisms have two basic types:a basket grapple and a spiral grapple.According to different uses, it may be equipped with accessories, such as extension sub,wall hook, enlarged guide, etc.
When ordering or requesting quotation, please specify:
1Type of overshot:
2O.D. of fish to be caught;
3、Size and type of top connection;
4、If it is not standard size,please specify clearly.etc
SpecificationThe Releasing and Circulating Overshot is the fishing tool which is simple, high strength and high reliability and fishing from outside of fishing objects.

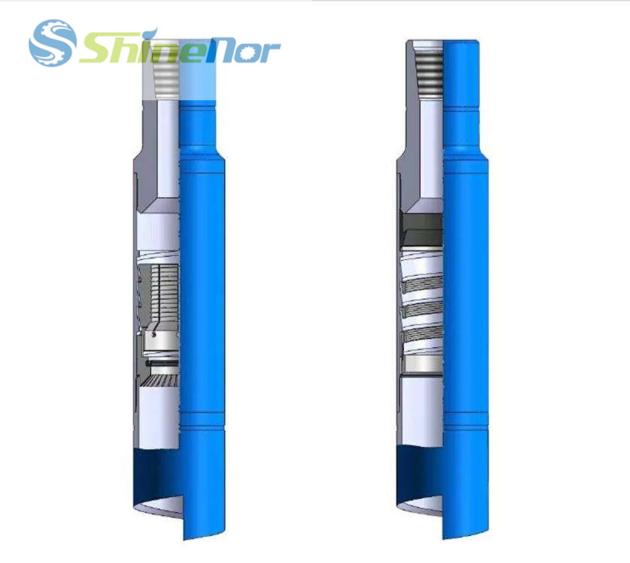

The internal catch mechanisms have two basic types:a basket grapple and a spiral grapple.According to different uses, it may be equipped with accessories, such as extension sub,wall hook, enlarged guide, etc.
When ordering or requesting quotation, please specify:
1Type of overshot:
2O.D. of fish to be caught;
3、Size and type of top connection;
4、If it is not standard size,please specify clearly.etc
SpecificationThe Releasing and Circulating Overshot is the fishing tool which is simple, high strength and high reliability and fishing from outside of fishing objects.
The internal catch mechanisms have two basic types:a basket grapple and a spiral grapple.According to different uses, it may be equipped with accessories, such as extension sub,wall hook, enlarged guide, etc.
When ordering or requesting quotation, please specify:
1Type of overshot:
2O.D. of fish to be caught;
3、Size and type of top connection;
4、If it is not standard size,please specify clearly.etc
Specification
型号
Type 外径
O.D.
m(in) 最大打捞落鱼尺寸
Max.Catch Size mm(in) 接头螺纹
Conn. API
篮状瓦
Basket Grapple 螺旋瓦
Spiral Grapple
LT102 102(4) 57.2(2 1/4) 70 (2 3/4) NC26
LT111 111(3 3/4) 60.3(2 3/8) 76.2(3) NC31
LT133 133(5 1/4) 95.3(3 3/4) 101.6 (4) NC38
LT146 146(5 3/4) 101.6(4) 119 (4 11/16) NC38
LT206 206.4(8 1/8) 146(5 3/4) 168 (6 5/8) NC50
L7245 245(9 5/8) 184.2(7 1/4) 203(8) 6 5/8REG
LT270 269.9(10 5/8) 200(7 7/8) 220(8 21/32) 6 5/8REG
LT286 285.8(11 1/4) 203(8) 245 (9 41/64) 6 5/8REG
L1340 340(13 3/8) 222(8 3/4) 267 (10 1/2) 6 5/8REG
|
