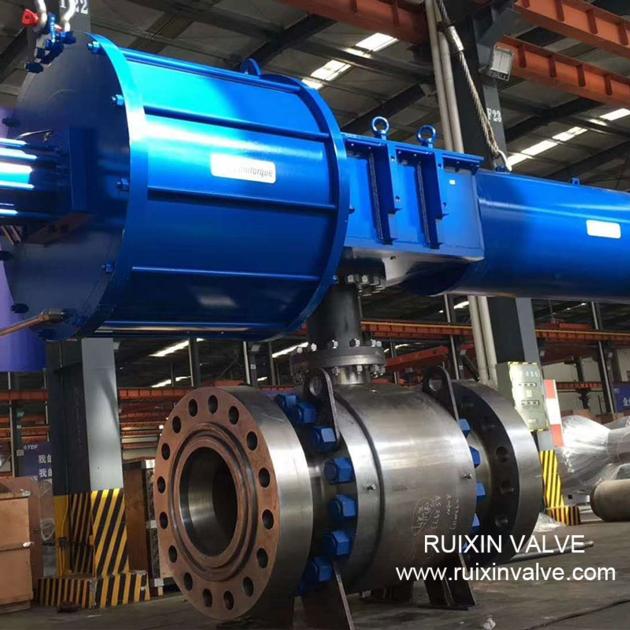

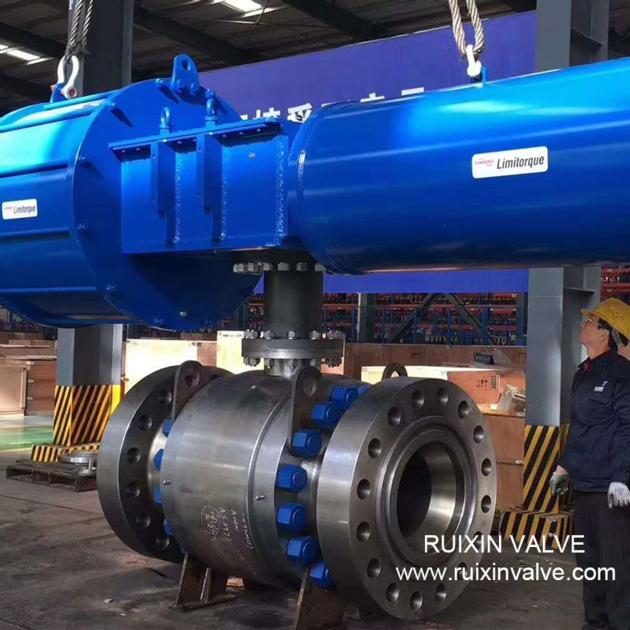

API 6D Trunnion Mounted Ball Valve with Pneumatic Actuator
| Price: | US$ 10 / Piece |
|---|---|
| Minimum Order: | 1pc |
| Payment Terms: | 30% in advance by T/T,70% before shipment |
| Port of Export: | Ningbo |
Product Details
| Model No.: | RXV | Brand Name: | RXVAL |
|---|
| Certification: | CE,ISO,API |
|---|---|
| Specification: |
150LB/300LB/600LB/900LB/1500LB/2500LB
A216 WCB/A105 ,A351 CF8/F304 ,A351 CF8M/F316，LCB/LF2，A105+ENP Forged Stainless Steel F316 RF,RTJ,NPT,BSP.BSPT.SW.BW ,Extend nipple Socket Weld/Butt Weld FNPT China Manufacturer, Factory, wholesale,Distributors,Supplier |
Packaging & Delivery
| Packaging: | Plywood |
|---|---|
| Delivery/Lead Time: | 20 days |
| Production Capacity: | Large |
Product Description
Size
2 inch - 24 inch
Pressure Rating
150LB - 2500 LB
Standard Connections
Flanged Ends (RF,FF)
Material
Body/Bonnet: A216WCB/A105 ,A351 CF8/F304 ,A351 CF8M/F316 ,ETC.
Ball :A105+ENP,13CR, A351 CF8(A182 F304),A351CF8M(A182 F316) ,ETC
Seat: PTFE, RPTFE, PEEK,NYLON Or Metal to Metal
Features And Benefits
Two/Three Piece.
Two Piece
Full or Reduce Bore
Trunnion Mounted Ball,Hollow Or Solid Ball
Fire Safety Seat Sealing
Anti-Static Spring Device
Blow-out proof stem
Low Emission
Double Block and Bleed
Operated by Lever ,Electric.Pneumatic Actuator
Standard
Design and Manufactures : API 6D/ ASME B16.34
Face To Face :ANSI B16.10
End Flange : ANSI B16.5, BW Ends To ANSI B16.25
Fire Safe : API 607 Or API6FA
Checking & Test : API 598
Pressure-Temperature: ASME B16.34
NACE MR-01-75
Why Choose Us:
1.Quality Guarantee
We have strict quality control system,Include raw material inspection,Inspect the process of component machine - Assembly Inspection - Complete machine performance testing and painting .
The product is tested 100% qualified before shipment
2.Delivery time
We are manufacturer and We have enough production capacity to delivery goods asap.
3.After-Sale Service
We offer 18 month guarantee period for all valves that we produce .
|
