API 16A Shear Ram BOP Ram Assembly

Brief Introduction
1.The pressure-bearing components are forged, so it has better strength and impact toughness;
2.Floating sealing is applied to the cylinder cover and the open/close of the cover is realized by hydraulic power, so it is quick and convenient for changing rams;
3.The auxiliary oil cylinder affords a smaller volume with same function; double ram Cameron U BOP
4.The ram rubber has massive storage volume, and it adopts self-contained sealing;
5.The standard configuration includes a manual locking device, which ensures the ram is closed tightly in case there is a hydraulic pressure loss;
6.Both the manual and hydraulic locking device and the auxiliary oil cylinder can be installed flexibly into different positions according to customers' requirements, and the installation positions can be changed easily.

Specifications of LWP, LWS, SL/SLX Ram BOP

Bore (inches)
7-1/16
11
13-5/8

20-3/4
21-1/4
Bore (inches)
5,000
10,000
3,000
5,000
3,000
5,000
10,000
3,000
5,000
10,000
3,000
2,000
Working Pressure
(psi)
58-1/4
79
60
79-1/8
72-5/8
89-1/4
122-3/4
130-1/4
130-1/4
128-3/4
127-1/2
127-1/2
Length (inches)
21-1/2
30
21-1/2
23-1/16
25-15/16
28-3/4
38-9/16
40-3/4
40-3/4
43-1/16
41-1/4
40-7/8
Width (inches)
15
22-7/8
11-1/8
14-1/2
14-1/2
19-1/2
23-1/2
17-1/4
17-1/4
28
23-1/8
23-1/8
Height (inches),
Single,
Stud x Stud
26-3/4
36-5/8
22
29-1/2
29-3/8
33
40-7/8
34
34
46
49-1/4
44-7/16
Height (inches),
Double,
Stud x Stud
1,385
5,550
1,170
2,870
2,116
4,150
11,100
8,400
8,800
13,200
7,448
7,285
Weight (lbs),
Single, Stud x Stud
2,504
9,900
2,200
5,750
4,096
7,725
20,560
15,350
15,620
23,400
14,615
14,455
Weight (ls),
Double, Stud x Stud
1.18
2.34
0.68
2.27
1.45
2.62
7.0
4.46
4.46
10.52
4.46
4.46
Gallons to Open
1.45
2.72
0.77
2.58
1.74
2.98
9.45
5.44
5.44
10.58
5.07
5.07
Gallons to Close
5.45:1
7.11:1
4.5:1
5.57:1
5.45:1
5.57:1
7.11:1
5.54:1
5.54:1
7.11:1
5.57:1
5.57:1


Specification of Type U Style Ram BOP

Bore (inches)
7-1/16
11
13-5/8
20-3/4
21-1/4
Working Pressure
(psi)
5,000
10,000
3,000
5,000
10,000
15,000
3,000
5,000
10,000
15,000
3,000
2,000
Length (inches)
74
74
95.25
96.25
96.25
124
112.13
112.13
114.13
139.00
143.69
143.69
Width (inches)
20.25
20.63
25.13
25.13
25.75
32
29.25
29.25
30.25
39.50
39.52
39.52
Height (inches),
Single,
Flange x Flange
27.50
30.56
29.06
34.31
35.69
44.81
31.31
33.81
41.69
53.69
40.56
37.9
Height (inches),
Double,
Flange x Flange
44.19
48.63
49.25
54.50
55.88
69.75
53.38
55.88
66.63
81.75
66.13
62.75
Weight (lbs),
Single,
Flange x Flange
2,800
3,550
5,300
5,600
6,400
10,300
7,200
7,700
10,300
23,700
13,650
13,250
Weight (lbs),
Double,
Flange x Flange
5,200
6,400
9,900
10,200
11,300
18,400
14,300
14,800
18,400
43,250
25,550
25,150
Locking Screw
Turns (Each End)
18
18
27
27
27
32
32
32
32
45
46
46
Gallons to Open
1.3
1.3
3.4
3.4
3.4
5.7
5.5
5.5
5.5
10.4
8.1
9.0
Gallons to Close
1.3
1.3
3.5
3.5
3.5
5.8
5.8
5.8
5.8
10.6
8.7
8.7
Closing Ratio
6.9:1
6.9:1
7.3:1
7.3:1
7.3:1
9.8:1
7.0:1
7.0:1
7.0:1
10.6:1
7.0:1
7.0:1

Any inquiries, freely contact me:
Skype: julia0402zcy Wechat: juliazcy; Mobile: 0086 18661596896

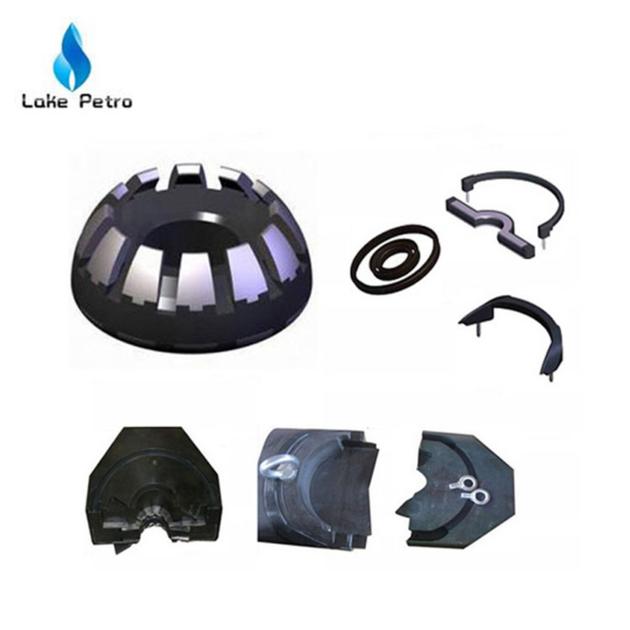

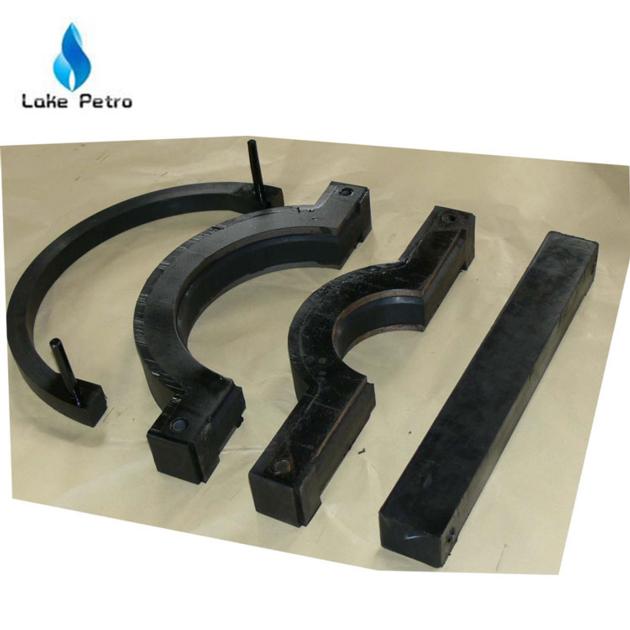

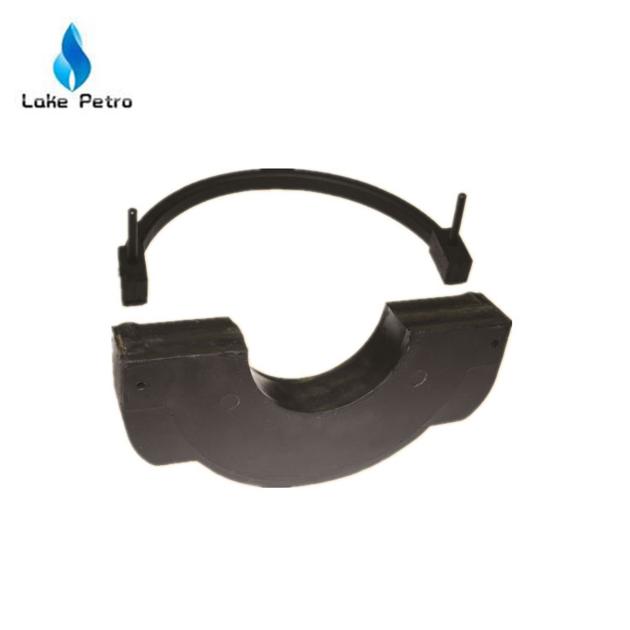

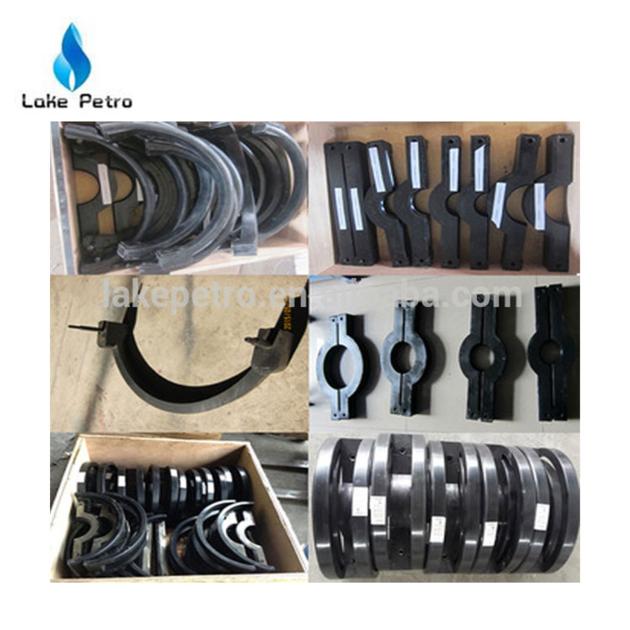

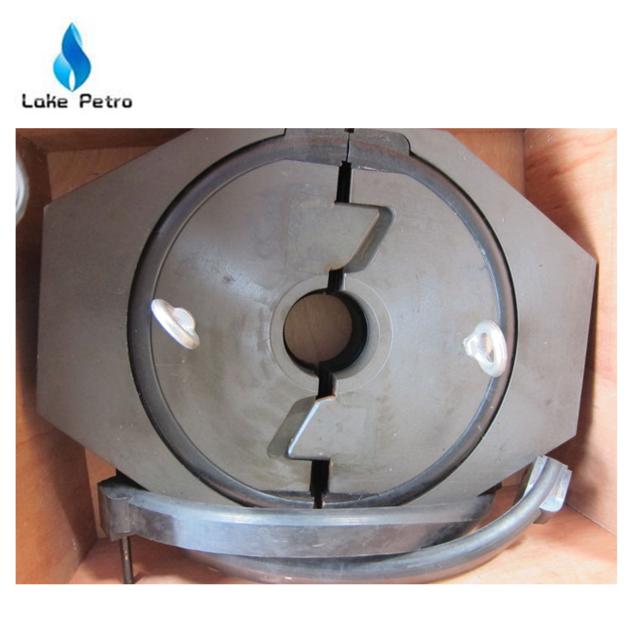

Photo View
API 16A Shear Ram BOP Ram AssemblyAPI 16A Shear Ram BOP Ram AssemblyAPI 16A Shear Ram BOP Ram AssemblyAPI 16A Shear Ram BOP Ram Assembly
