API 13-3/8" 5000PSI Wireline BOP

API 13-3/8" 5000PSI Wireline BOP

Product Description
Lubricator & riser sections are pressure retaining cylinders used during well intervention operations, for tool deployment. Sections can be made-up together with an appropriate sealing device, to form an effectual operating height to retain the tool string complete with sub-surface deployment tool(s) being run or Retrieved from the well.
options
The TIS lubricator and riser section range is available with the following options :
· 3.00”ID to 9.00” ID through bores
· 3ft to 20ft length options
· 5,000 Psi, 10,000 Psi and 15,000 Psi working pressures
· Standard or sour service
· Service temperature range of -29 to +121 ®C
· Choice of quick union or API flanged connections
· Choice of bleed port connections
Technical Features

· On conventional lubricators, the component parts are screwed together by means of a special TIS acme connection, which has a primary o-ring seal and secondary metal to metal seal
· On integral type lubricators, the quick union collars can be very quickly and easily removed for cleaning, inspection, etc
· Integral lubricator sections can also be provided with an optional full re-cut facility on quick union connections.
Technical Parameters

Thro' Bore Working Pressure Quick Union Length 1/2" N P T Port
3.00” 5,000 psi 5-1/2”-4x2 ‘B’ Type 6 Feet None
3.00” 5,000 psi 5-1/2”-4x2 ‘B’ Type 8 Feet None
3.00” 5,000 psi 5-1/2”-4x2 ‘B’ Type 10 Feet None
3.00” 5,000 psi 5-1/2”-4x2 ‘B’ Type 6 Feet 1 off
3.00” 5,000 psi 5-1/2”-4x2 ‘B’ Type 8 Feet 1 off
3.00” 5,000 psi 5-1/2”-4x2 ‘B’ Type 10 Feet 1 off
3.00” 5,000 psi 5”-4Thd ‘O’ Type 6 Feet None
3.00” 5,000 psi 5”-4Thd ‘O’ Type 8 Feet None
3.00” 5,000 psi 5”-4Thd ‘O’ Type 10 Feet None
3.00” 5,000 psi 5”-4Thd ‘O’ Type 6 Feet 1 off
3.00” 5,000 psi 5”-4Thd ‘O’ Type 8 Feet 1 off
3.00” 5,000 psi 5”-4Thd ‘O’ Type 10 Feet 1 off
3.00” 10,000 psi 6-5/16”-4Thd ‘B’ Type 6 Feet None
3.00” 10,000 psi 6-5/16”-4Thd ‘B’ Type 8 Feet None
3.00” 10,000 psi 6-5/16”-4Thd ‘B’ Type 10 Feet None
3.00” 10,000 psi 6-5/16”-4Thd ‘B’ Type 6 Feet 1 off
3.00” 10,000 psi 6-5/16”-4Thd ‘B’ Type 8 Feet 1 off
3.00” 10,000 psi 6-5/16”-4Thd ‘B’ Type 10 Feet 1 off
3.00” 10,000 psi 5-3/4”-4Thd ‘O’ Type 6 Feet None
3.00” 10,000 psi 5-3/4”-4Thd ‘O’ Type 8 Feet None
3.00” 10,000 psi 5-3/4”-4Thd ‘O’ Type 10 Feet None
3.00” 10,000 psi 5-3/4”-4Thd ‘O’ Type 6 Feet 1 off
3.00” 10,000 psi 5-3/4”-4Thd ‘O’ Type 8 Feet 1 off
3.00” 10,000 psi 5-3/4”-4Thd ‘O’ Type 10 Feet 1 off

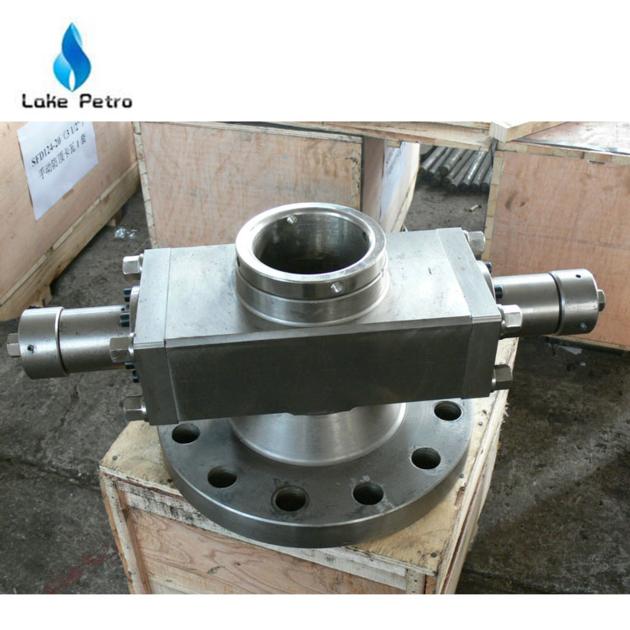

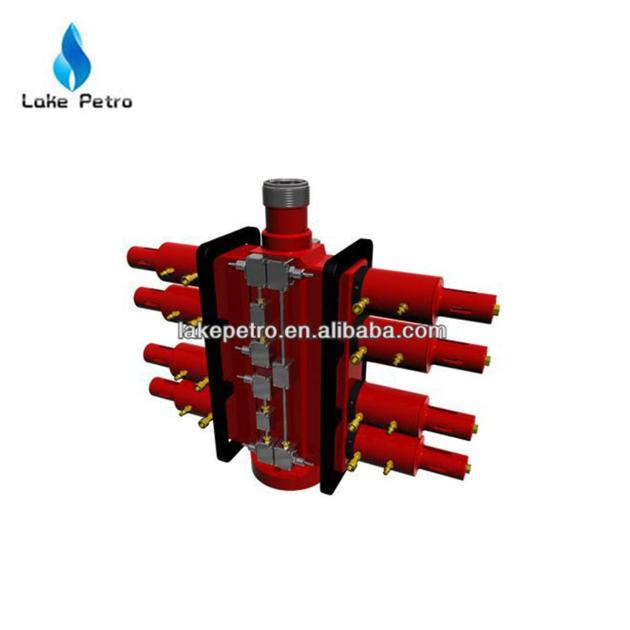

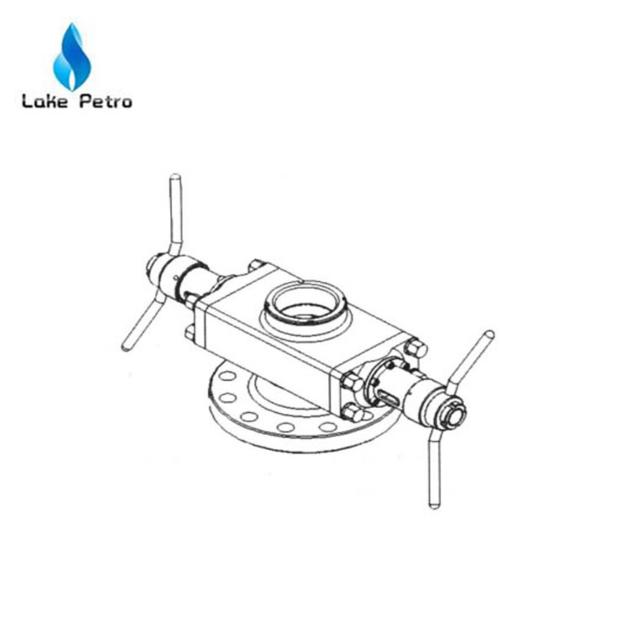

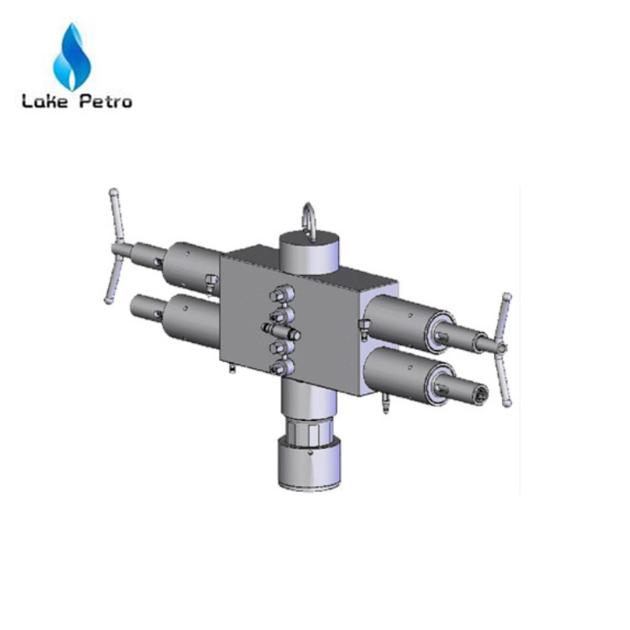

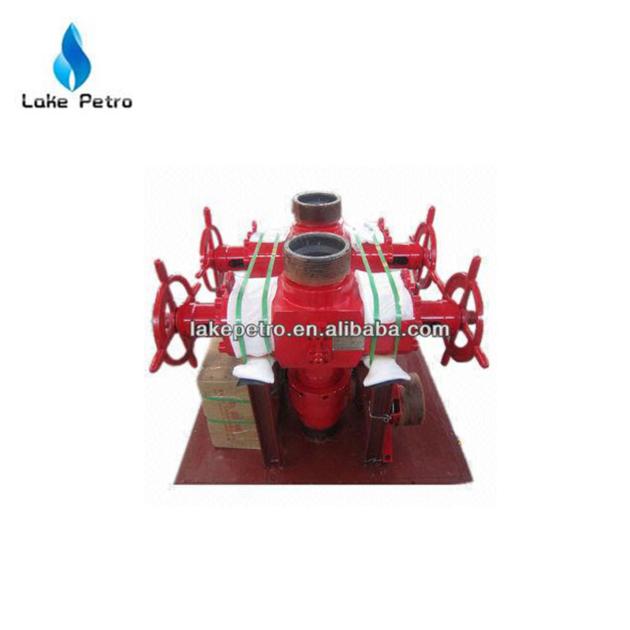

Photo View
API 13-3/8" 5000PSI Wireline BOPAPI 13-3/8" 5000PSI Wireline BOPAPI 13-3/8" 5000PSI Wireline BOPAPI 13-3/8" 5000PSI Wireline BOP



Packaging & Shipping
Standard export packing or according to client's requirements.
Shipping according to client's requirements.
