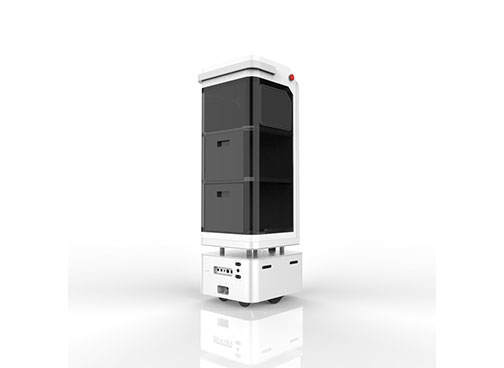

A305 Indoor Delivery Robot

A305 sealed box delivery robot uses simple and effective modular design to make contactless delivery, so that the service is more peace of mind. The self-developed indoor robot navigation, indoor robot localization technology can ensure great positioning accuracy and flexibility of the robot.

CORE ADVANTAGES OF A305 INDOOR DELIVERY ROBOT
Core Advantages of A305 Indoor Delivery Robot
1. Autonomous safety obstacle avoidance.

2. Intelligent positioning and navigation.

3. Modular design.

5.Contactless distribution.

MORE INFORMATIONS ABOUT A305 INDOOR DELIVERY ROBOT
01
How do you do after-sale of your delivery robot?
We provide technology and accessories to customers.

02
Can indoor delivery robotics be rented?
Currently, we do not have this kind of services.

03
How about the service robot charging time?
After noting a drop in the battery charge below a certain level, the indoor delivery robot goes to the charging station.

The connecting and charging processes are entirely automatic and do not require human intervention. After replenishing its energy reserves, the autonomous service robot goes back to work exactly where it left off.

This allows robots to work in environments that operate 24/7 like hospitals, hotels and airports.

SPECIFICATION OF A305 INDOOR DELIVERY ROBOT

Model No: A305
Body & Tray Sealed case distribution section (custom design available upon request)
Load weight The maximum total load capacity of the chassis 60KG (weight can be customized)
Operating Climbing angle ≤9 ®, ramp height ≤ 10CM
Maximum operating speed 0.8M/S (speed adjustable)
Indoor navigation operation + semi-outdoor navigation operation (within 40 meters of the open area, low-speed driving may not drive into the motorway and vehicle mix)
Obstacle Crossing ≤1CM
Wheel Hub Design Master wheel with motor control*2 + driven wheel*4
Navigation Positioning Accuracy ¯50mm
Robot System ROS
Navigation and Barrier Avoidance Autonomous planning navigation and obstacle avoidance, SLAM and multi-sen
Sensors Monocular camera 2
RGBD camera 1
Infrared night vision sensor 4*2
LIDAR 1
Ultrasonic Radar 3
IMU 1
Collision Avoidance Chassis front bumper + crash emergency switch
Speaker Support
Microphone Body design can add as needed
Powertrain Battery Rated Voltage: 36V
Capacity: 20Ah
Endurance Time: Greater than 6H (no load)
Charging Charging Method: Manual charging / automatic charging
(to achieve low-battery automatic homing charging)
Charging Time: 4H
Robot Router Dual-band:2.4GHz+5.8GHz，802.11 a/b/g/n/ac
Android Smart Devices CPU Quad-core Cortex-A17
RAM 2GB
ROM 8GB
LCD 10.1', 1280*800
TP 10-point capacitive touch screen
Operating System Android 8.1
WIFI 2.4GHz, 802.11 b/g/n
4G
Housing Metal
Waterproof Customizable IPX4 waterproof rating
Temperature & Humidity Operating Temperature  5℃~50℃
Operating Humidity 0~80%
Storage Temperature -20℃~65℃
Storage Humidity 0~80%

As one of autonomous mobile robots companies, we will do our best to meet all the needs of customers.
