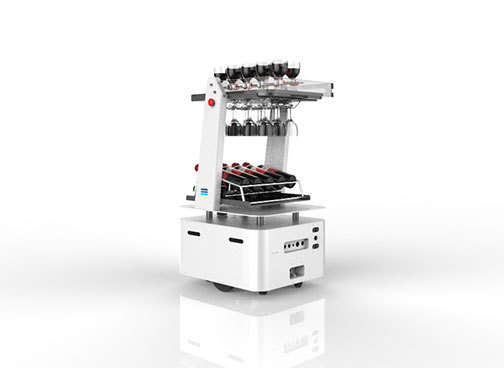

A303 Automated Takeaway Food Delivery Robot

This reception-specific takeaway delivery robot has a customized design for different reception scenes. It has a customized tray to ensure that wine glasses and bottles can be safely and reliably distributed. Equipped with the self-developed positioning and navigation technology, this autonomous food delivery robot series can ensure positioning accuracy and flexibility.

A303 AUTOMATED FOOD DELIVERY ROBOT CORE ADVANTAGES
1. Autonomous planning navigation and obstacle avoidance.

2. Multi-sensor fusion SLAM technology.

3. This automated indoor delivery robot supports mobile APP control.

4.Autonomous charging.

MORE INFORMATIONS ABOUT A303 TAKEAWAY DELIVERY ROBOT
01
What can your indoor autonomous food delivery robot do?
As one of professional service robot manufactures in China, Fdata can make the automated food delivery robot in accordance with your own requirements.

02
What are the unique features and key differentiates of your takeaway delivery robot？
1. Scalability

2. Safety

3. Customizable

4. Connected: Plug & Play

5. Modular

03
What is your indoor robot infrastructure integration connected?
Our autonomous food delivery robot can offer integration to third-party infrastructures such as elevators, auto doors, and PABX systems, so as to provide complete robotics solutions to our customers.
A303 AUTONOMOUS FOOD DELIVERY ROBOT SPECIFICATIONS
Model No: A303
Body & Tray Restaurant two-layer tray delivery (custom designs available upon request)
Load weight The maximum total load capacity of the chassis 60KG (weight can be customized)
Operating Climbing angle ≤ 5 ®, ramp height ≤ 10CM
Maximum operating speed 0.8M/S (speed adjustable)
Indoor navigation operation + semi-outdoor navigation operation (within 40 meters of the open area, low-speed driving may not drive into the motorway and vehicle mix)
Obstacle Crossing Crossing height ≤ 1CM
Wheel Hub Design Master wheel with motor control*2 + driven wheel*4
Navigation Positioning Accuracy ¯50mm
Robot System ROS
Navigation and Barrier Avoidance Autonomous planning navigation and obstacle avoidance, SLAM and multi-sen
Sensors Monocular Camera 2
RGBD camera 1
Infrared night vision sensor 4*2
LIDAR 1
Ultrasonic Radar 3
IMU 1
Collision Avoidance Chassis front bumper + crash emergency switch
Speaker Support
Microphone Body design can add as needed
Powertrain Battery Rated voltage:36V
Capacity:20Ah
Endurance Time: Greater than 6H (no load)
Charging Charging Method: Manual charging / automatic charging
(to achieve low-battery automatic homing charging)
Charging Time: 4H
Robot Router Dual-band: 2.4GHz+5.8GHz，802.11 a/b/g/n/ac
Mobile APP Support
Housing Metal
Waterproof Customizable IPX4 waterproof rating
Temperature & Humidity Operating Temperature 5℃~50℃
Operating Humidity 0~80%
Storage Temperature -20℃~65℃
Storage Humidity 0~80%
